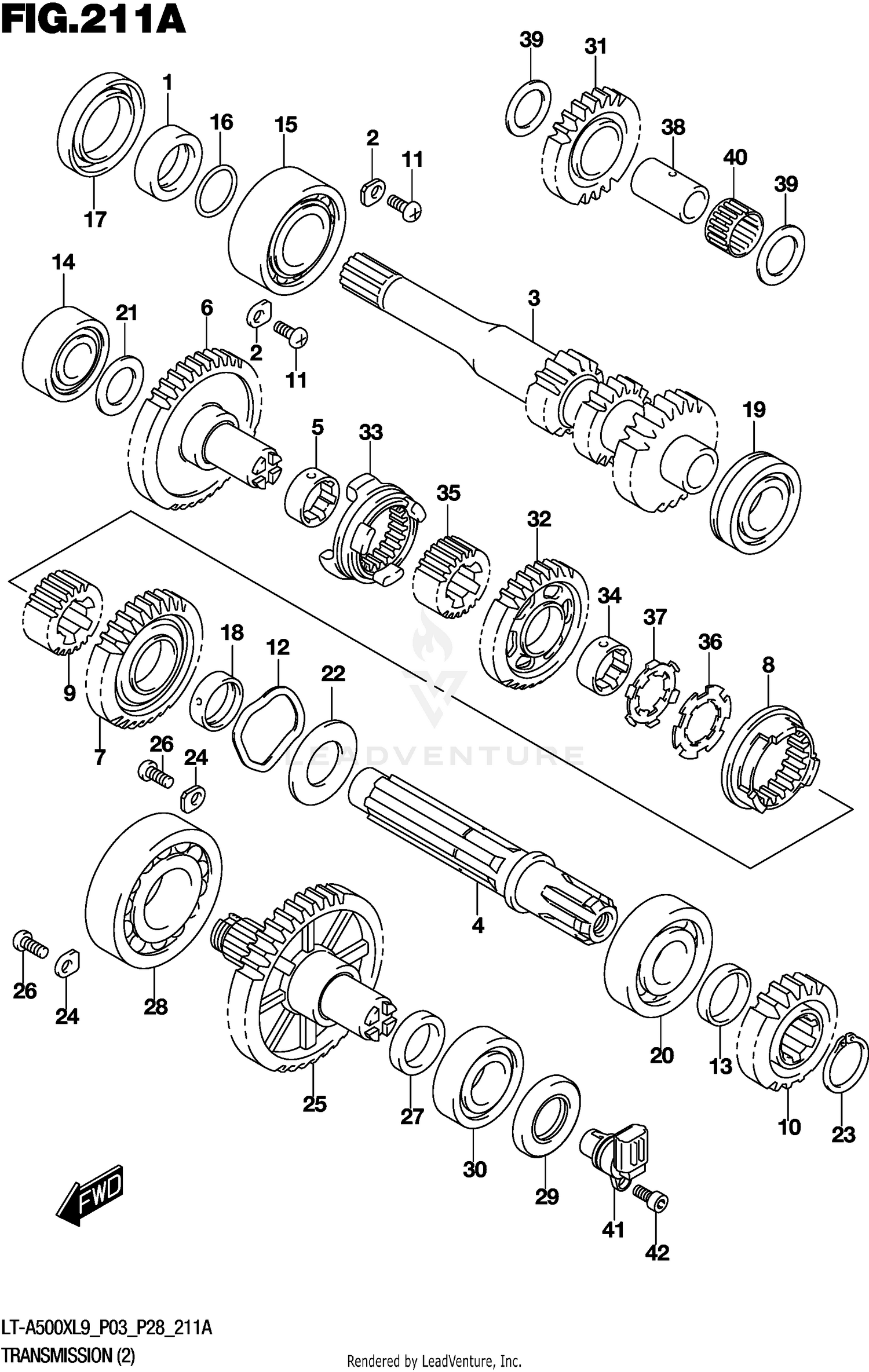

| Ref | Part Number | Description |
|---|
| 1 |
21102-31G00 |
SPACER,PRIMARY SHAFT Price: $32.97 |
| 2 |
24741-21A00 |
RETAINER Price: $3.38 |
| 3 |
29111-11H01 |
SHAFT,DRIVE (NT:25/16/16) Price: $313.24 |
| 4 |
29131-31G00 |
SHAFT,SUB T/M COUNTER Price: $106.05 |
| 5 |
29215-07G00 |
BUSH,3RD DRIVEN GEAR Price: $24.00 |
| 6 |
29311-31G00 |
GEAR,SUB T/M DRIVEN LOW (NT:4 Price: $144.40 |
| 7 |
29321-31G00 |
GEAR,SUB T/M DRIVEN HIGH (NT: Price: $168.56 |
| 8 |
29331-31G10 |
DOG,GEAR SHIFT HIGH Price: $85.62 |
| 9 |
29332-31G00 |
SPACER,REVERSE SELECT SLIDING Price: $47.61 |
| 10 |
29411-31H00 |
GEAR,SUB T/M DRIVE NO.2 (NT:1 Price: $70.33 |
| 11 |
09125-06122 |
SCREW (6X12) Price: $2.58 |
| 12 |
09164-34001 |
WASHER Price: $7.76 |
| 13 |
09180-25097 |
SPACER (25X30X7) Price: $10.72 |
| 14 |
09262-20139 |
BEARING (20X47X14) Price: $47.22 |
| 15 |
09262-25153 |
BEARING (25X62X17) Price: $76.36 |
| 17 |
09283-38025 |
OIL SEAL (38X56X7) Price: $38.79 |
| 18 |
24252-19F00 |
BUSH Price: $18.49 |
| 19 |
09262-25142 |
BEARING (25X52X15) Price: $39.08 |
| 20 |
09262-25073 |
BEARING (25X62X17) Price: $31.56 |
| 21 |
08211-20363 |
WASHER Price: $3.87 |
| 22 |
08211-25463 |
WASHER Price: $4.10 |
| 23 |
08331-31259 |
CIRCLIP Price: $2.62 |
| 24 |
24741-21A00 |
RETAINER Price: $3.38 |
| 25 |
29120-31H00 |
SHAFT,SUB T/M OUTPUT (NT:37) Price: $313.63 |
| 26 |
09125-06122 |
SCREW (6X12) Price: $2.58 |
| 27 |
09180-25083 |
SPACER (25X34X5.5) Price: $14.90 |
| 28 |
09262-30077 |
BEARING,30X72X19 (30X72X19) Price: $61.37 |
| 29 |
09283-25076 |
SEAL,OIL (25X45X5) Price: $12.59 |
| 30 |
09262-25003 |
BEARING (25X52X15) Price: $30.23 |
| 31 |
24561-31G20 |
GEAR,REVERSE IDLE (NT:23) Price: $110.34 |
| 32 |
24571-31G00 |
GEAR,REVERSE DRIVEN (NT:32) Price: $124.00 |
| 33 |
24581-31G00 |
DOG,SUB T/M SELECT SLIDING Price: $92.98 |
| 34 |
29215-07G00 |
BUSH,3RD DRIVEN GEAR Price: $24.00 |
| 35 |
29332-31G00 |
SPACER,REVERSE SELECT SLIDING Price: $47.61 |
| 36 |
09167-25013 |
WASHER,LOCK (25.1X41X1.5) Price: $3.47 |
| 37 |
09169-25001 |
WASHER (25.1X37X2.5) Price: $2.85 |
| 38 |
24551-31G00 |
SHAFT,REVERSE IDLE GEAR Price: $20.08 |
| 39 |
09181-20195 |
SHIM (20X30X1) Price: $3.02 |
| 40 |
09263-20060 |
BEARING (20X24X12.8) Price: $21.77 |
| 41 |
34990-31G01 |
SENSOR,SPEED Price: $143.01 |
