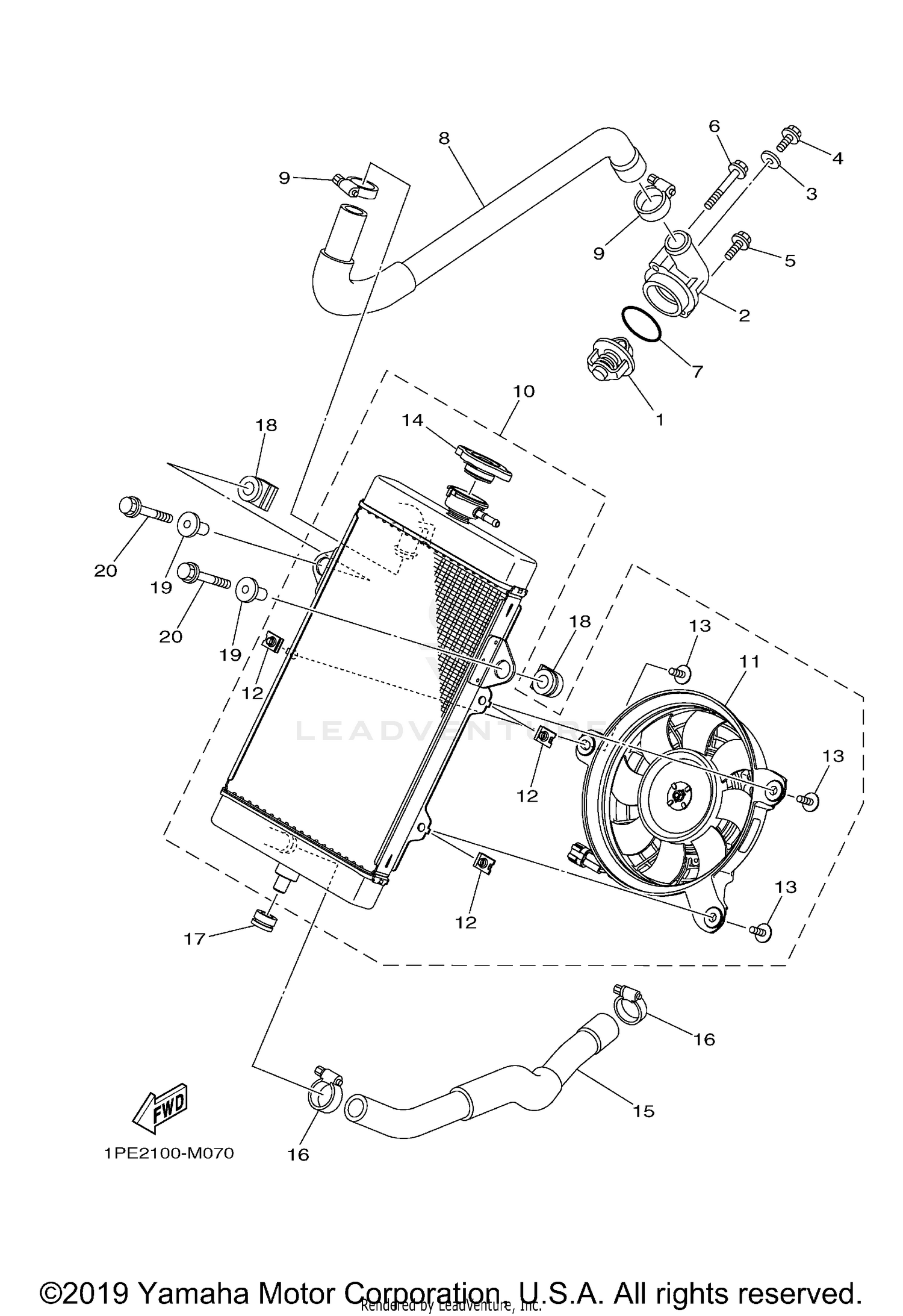

RADIATOR HOSE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5VK-12410-01-00 | THERMOSTAT ASSY This part replaces 5VK-12410-00-00. Price: $34.99 |
| 2 | 1S3-12413-00-00 | COVER, THERMOSTAT Price: $52.99 |
| 3 | 90430-06014-00 | GASKET Price: $8.60 |
| 4 | 95022-06010-00 | BOLT, FLANGE Price: $6.49 |
| 5 | 95022-06020-00 | BOLT, FLANGE Price: $3.90 |
| 6 | 95022-06045-00 | BOLT, FLANGE Price: $4.65 |
| 7 | 93210-41042-00 | O-RING Price: $8.49 |
| 8 | 1PE-E2578-00-00 | HOSE 3 Price: $37.99 |
| 9 | 90467-26189-00 | CLIP Price: $8.49 |
| 10 | 1PE-E2460-04-00 | RADIATOR ASSY This part replaces 1PE-E2460-01-00. Price: $277.99 |
| 11 | 1PE-E2405-01-00 | BLOWER ASSY This part replaces 1PE-E2405-00-00. Price: $266.99 |
| 12 | 1PE-E2535-00-00 | PLATE Price: $4.15 |
| 13 | 1PE-E2675-00-00 | BOLT, BLOWER HOLDING Price: $1.55 |
| 14 | 1XD-E2462-00-00 | CAP, RADIATOR Price: $16.49 |
| 15 | 1PE-E2579-00-00 | HOSE 4 Price: $42.99 |
| 16 | 90450-32015-00 | HOSE CLAMP ASSY Price: $19.49 |
| 17 | 90480-18330-00 | GROMMET Price: $2.95 |
| 18 | 1S3-12465-00-00 | DAMPER, RADIATOR Price: $7.49 |
| 19 | 90387-06166-00 | COLLAR Price: $13.49 |
