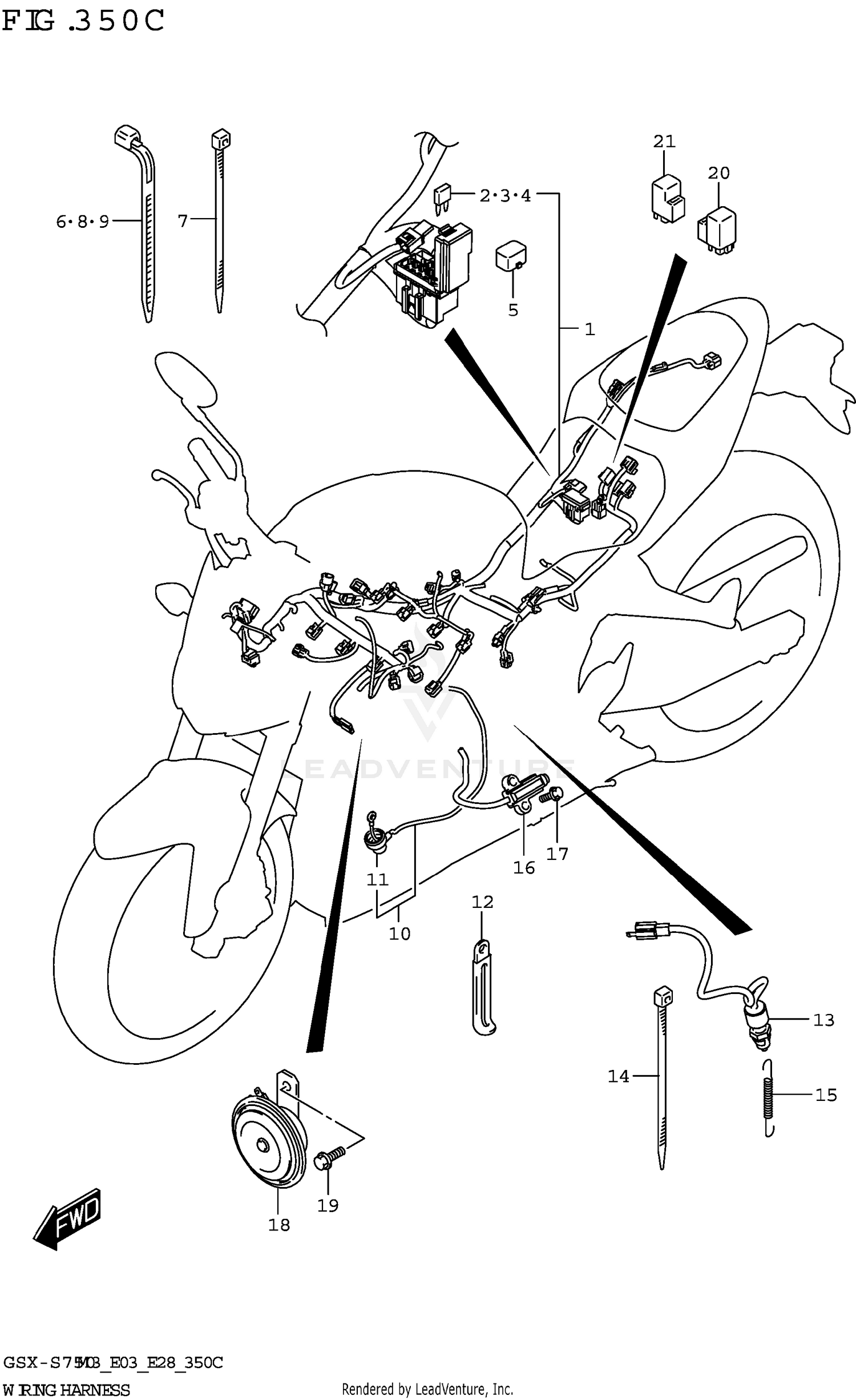

WIRING HARNESS ((GSX-S750A,GSX-S750ZA):E03)
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-13KC0 | HARNESS, WIRING Price: Call Us |
| 5 | 36654-06J31 | CAP,TS Price: $15.70 |
| 6 | 09407-25401 | CLAMP (L:235) Price: $5.68 |
| 7 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 8 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 9 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 10 | 36851-23H01 | WIRE, OIL PRESSURE SWITCH LEA Price: $13.65 |
| 12 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 13 | 37740-45D00 | SWITCH ASSY,STOP LAMP Price: $19.73 |
| 14 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 15 | 09443-06012 | SPRING Price: $3.91 |
| 16 | 37840-35F02 | SWITCH ASSY,SIDE STAND This part replaces 37840-35F01. Price: $61.19 |
| 17 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 18 | 38500-16G01 | HORN ASSY Price: $94.73 |
| 19 | 01550-0812A | BOLT Price: $2.79 |
