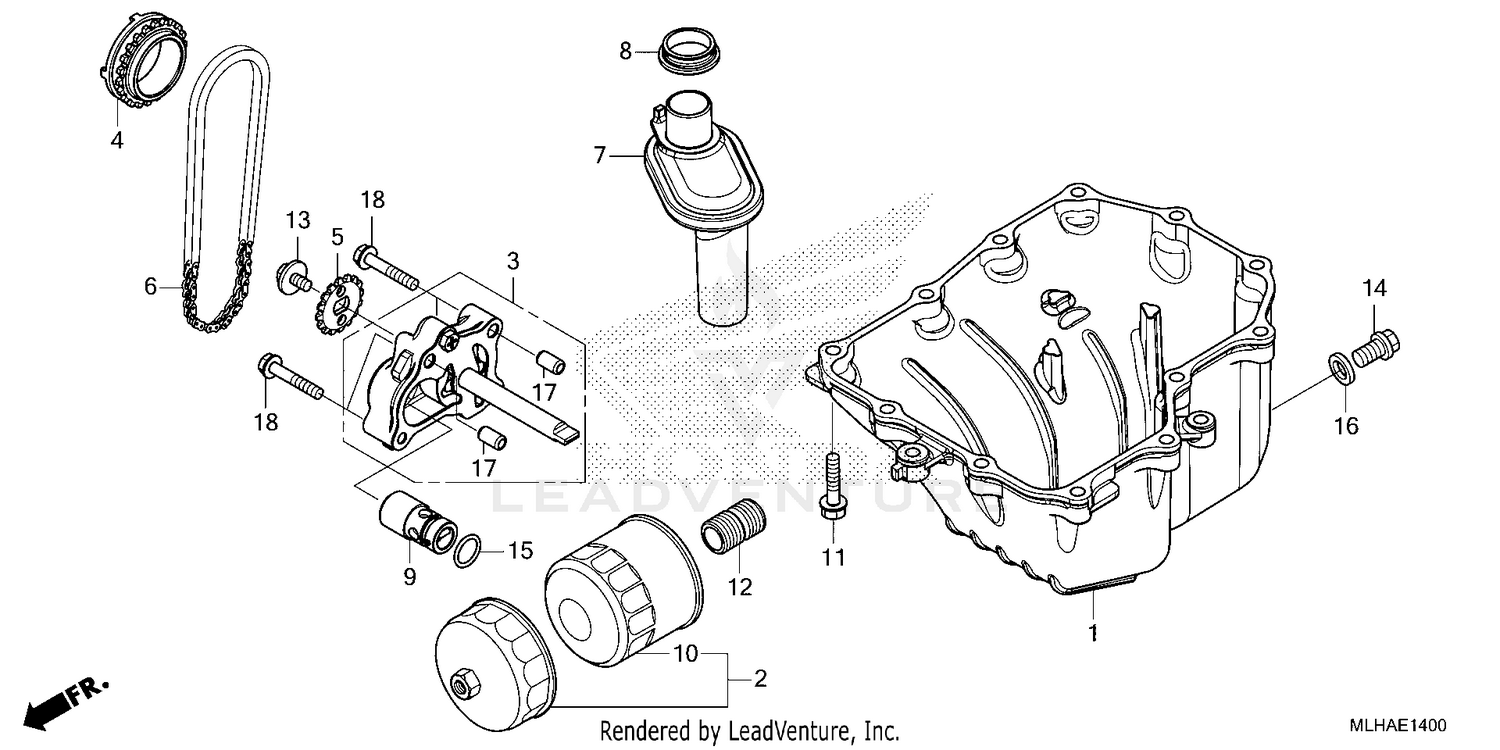

| Ref | Part Number | Description |
|---|
| 1 |
11210-MLH-A40 |
PAN, OIL (NOT AVAILABLE) Price: $68.22 |
| 3 |
15100-MGZ-J00 |
PUMP ASSY., OIL Price: $103.89 |
| 4 |
15131-MKP-D01 |
SPROCKET, OIL PUMP DRIVE (22T) Price: $41.87 |
| 5 |
15134-MGZ-J00 |
SPROCKET, OIL PUMP DRIVEN (16T) Price: $15.75 |
| 6 |
15141-MLH-A01 |
CHAIN (RK 25H-56LE) Price: $8.95 |
| 7 |
15150-MGZ-J00 |
STRAINER, OIL Price: $15.04 |
| 8 |
15154-MAT-000 |
GASKET, OIL STRAINER Price: $7.73 |
| 9 |
15220-MGZ-J00 |
VALVE ASSY., RELIEF Price: $44.93 |
| 10 |
15410-MFJ-D02 |
FILTER, OIL (WAKO FILTER) Price: $18.63 |
| 11 |
90010-MGZ-J00 |
BOLT, FLANGE (6X28) Price: $0.55 |
| 12 |
90019-MGZ-J00 |
BOSS, OIL FILTER Price: $2.58 |
| 13 |
90021-MGZ-J00 |
BOLT-WASHER (6X12) Price: $4.69 |
| 14 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 15 |
91313-MG7-004 |
O-RING (14.8X2.2) This part replaces 91313-MB0-003. Price: $4.62 |
| 16 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 17 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
