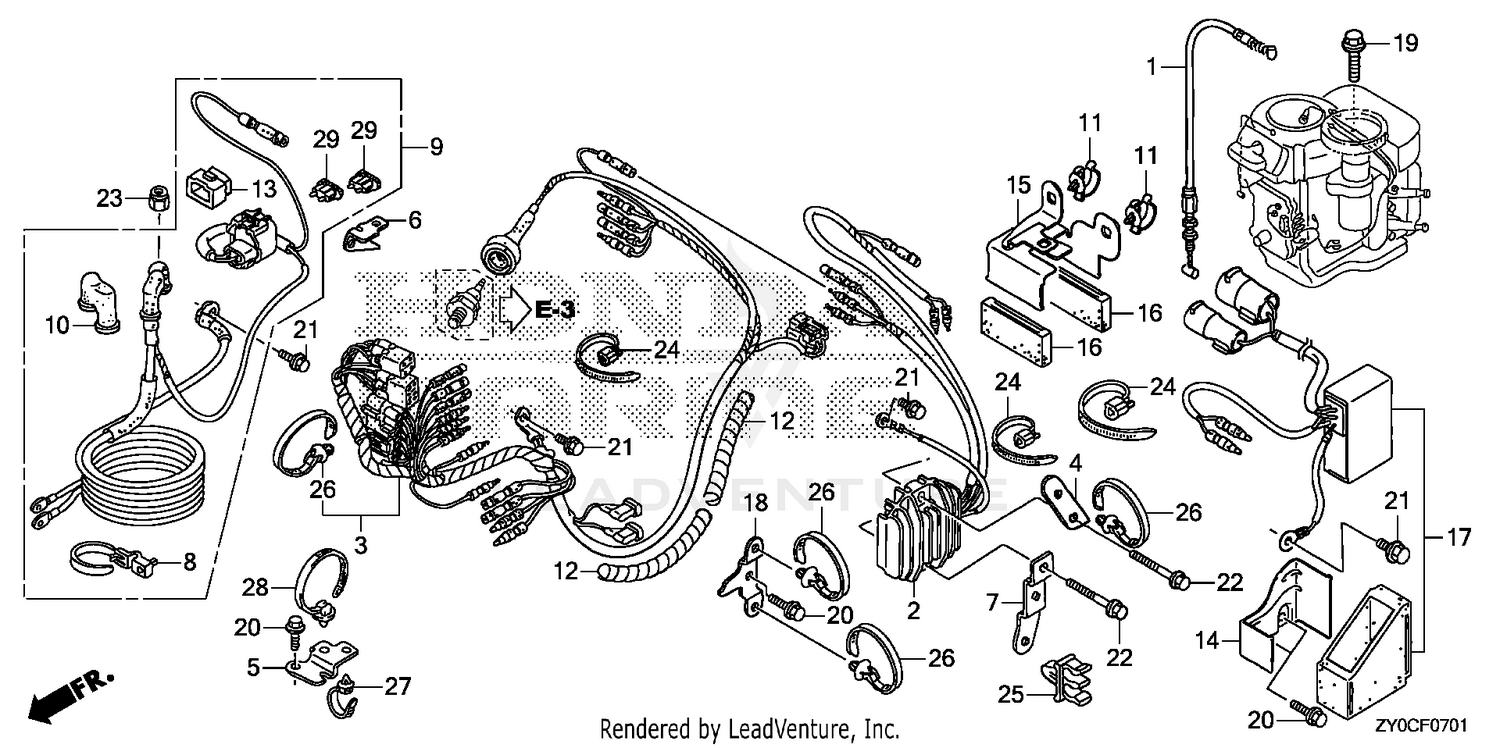

| Ref | Part Number | Description |
|---|
| 1 |
17940-ZW9-010 |
SEE PART DETAILS - PRI; CABLE, NEUTRAL STARTING Price: $17.18 |
| 1 |
87127KTF980 |
MARK, HONDA Price: Call Us |
| 2 |
31750-ZY1-732 |
RECTIFIER ASSY., REGULATOR Price: $132.88 |
| 2 |
87133KTF980ZA |
EMBLEM, FR. *TYPE1* Price: Call Us |
| 3 |
32100-ZY1-870 |
WIRE HARNESS ASSY. (REMOTE CONTROL)(PT) Price: $211.92 |
| 4 |
32103-ZW9-020 |
BRACKET, CLIP F Price: $1.96 |
| 5 |
32112-ZW9-010 |
BRKT, STARTER CABLE Price: $5.72 |
| 6 |
32115-ZY1-871 |
BRACKET, FUSE CASE This part replaces 32115-ZY1-870. Price: $4.56 |
| 7 |
32118-ZW9-731 |
BRACKET, E-CLIP Price: $6.20 |
| 9 |
32410-ZY1-870 |
CABLE ASSY., STARTER (PT) Price: $239.22 |
| 10 |
32412-ZY1-801 |
COVER, MAGNETIC SWITCH TERMINAL Price: $5.62 |
| 11 |
32660-MJ6-710 |
CLAMP, WIRE Price: $4.70 |
| 12 |
36104-ZW9-003 |
TUBE, SPIRAL A Price: $10.48 |
| 13 |
38218-ZW9-003 |
COVER ASSY., FUSE (20A) Price: $8.94 |
| 14 |
38552-ZY1-871 |
BRACKET, RELAY (PT) Price: $43.20 |
| 14 |
38552-ZY1-872 |
BRACKET, RELAY Price: $43.86 |
| 15 |
38553-ZY1-870 |
BRACKET, CONNECTOR A Price: $21.08 |
| 16 |
38554-ZY1-870 |
GROMMET, CONNECTOR Price: $2.70 |
| 17 |
38555-ZY1-871 |
RELAY ASSY., POWER TILT Price: $289.98 |
| 18 |
38556-ZY1-871 |
BRKT, HARNESS CLIP Price: $6.74 |
| 19 |
90005-ZW9-030 |
BOLT, FLANGE (6X20) (ENGINE NO.) Price: $2.54 |
| 21 |
90013-ZW9-000 |
BOLT, FLANGE (6X12) Price: $2.02 |
| 22 |
90114-ZW9-030 |
BOLT (6X26) (CT200) Price: $2.68 |
| 23 |
90204-ZY1-003 |
NUT, LOCK (6MM) Price: $5.48 |
| 24 |
90650-ZY1-003 |
TIE, CABLE Price: $4.66 |
| 25 |
90684-SB3-003 |
CLIP, FUEL TUBE (Honda Code 2663425). Price: $7.94 |
| 26 |
91540-S30-003 |
CLIP, HARNESS BAND (151.5MM) (NATURAL) Price: $4.30 |
| 27 |
91547-SF4-003 |
BAND, WIRE HARNESS (123.5MM) (BLUE) Price: $8.00 |
| 28 |
91567-SE0-003 |
BAND, WIRE HARNESS (93.5MM) (WHITE) Price: $12.28 |
