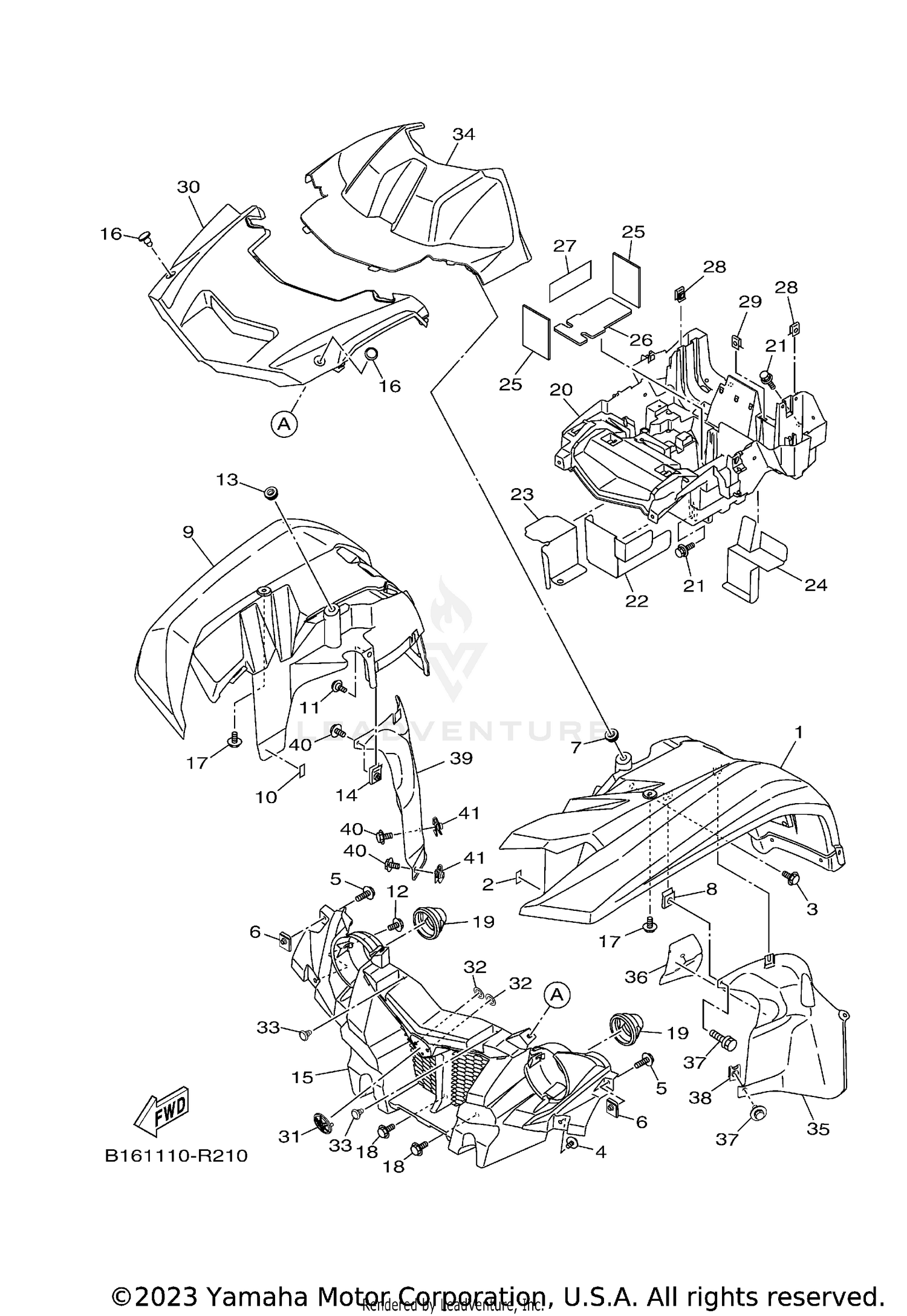

| Ref | Part Number | Description |
|---|
| 1 |
BYY-F1500-01-00 |
FRONT FENDER ASSY This part replaces BYY-F1500-00-00. Price: $135.99 |
| 2 |
3B4-21541-00-00 |
DAMPER 1 Price: $4.55 |
| 3 |
90109-06043-00 |
BOLT Price: $3.00 |
| 4 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 5 |
90119-05193-00 |
BOLT, WITH WASHER Price: $2.35 |
| 6 |
90183-051A0-00 |
NUT, SPRING Price: $4.10 |
| 7 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 8 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 9 |
B16-F1556-70-00 |
FENDER, FRONT 2 Price: $83.99 |
| 10 |
3B4-21541-00-00 |
DAMPER 1 Price: $4.55 |
| 11 |
90109-06043-00 |
BOLT Price: $3.00 |
| 12 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 13 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 14 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 15 |
B16-F8309-00-00 |
GRILLE, FRONT Price: $43.99 |
| 16 |
90269-07010-00 |
RIVET Price: $4.70 |
| 17 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 18 |
90109-06043-00 |
BOLT Price: $3.00 |
| 19 |
5UH-F8349-00-00 |
CAP Price: $15.49 |
| 20 |
1HP-H212B-02-00 |
BOX, BATTERY 1 Price: $33.99 |
| 21 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 22 |
1HP-H253E-01-00 |
INSULATOR 1 This part replaces 1HP-H253E-00-00. Price: $8.49 |
| 23 |
1HP-H253F-00-00 |
INSULATOR 2 Price: $7.49 |
| 24 |
1HP-H254E-01-00 |
INSULATOR This part replaces 1HP-H254E-00-00. Price: $5.49 |
| 25 |
3B4-8233W-10-00 |
INSU. Price: $7.49 |
| 26 |
3B4-82122-00-00 |
SEAT, BATTERY Price: $16.49 |
| 27 |
1HP-H2176-01-00 |
DAMPER Price: $2.40 |
| 28 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 29 |
90183-05008-00 |
NUT, SPRING Price: $10.49 |
| 30 |
B16-F3391-00-00 |
PANEL, FRONT Price: $21.99 |
| 31 |
1XD-F175B-01-00 |
TUNING FORK MARK Price: $15.49 |
| 32 |
90183-06071-00 |
NUT, SPRING Price: $0.80 |
| 33 |
90269-07010-00 |
RIVET Price: $4.70 |
| 34 |
B16-F839R-00-00 |
PANEL, ACCESSORY Price: $29.99 |
| 35 |
1HP-F1552-00-00 |
FENDER, INNER Price: $10.49 |
| 36 |
1HP-F1575-01-00 |
SEAL 1 Price: $4.40 |
| 37 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 38 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 39 |
1HP-F1553-00-00 |
FENDER, INNER 2 Price: $23.99 |
| 40 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
