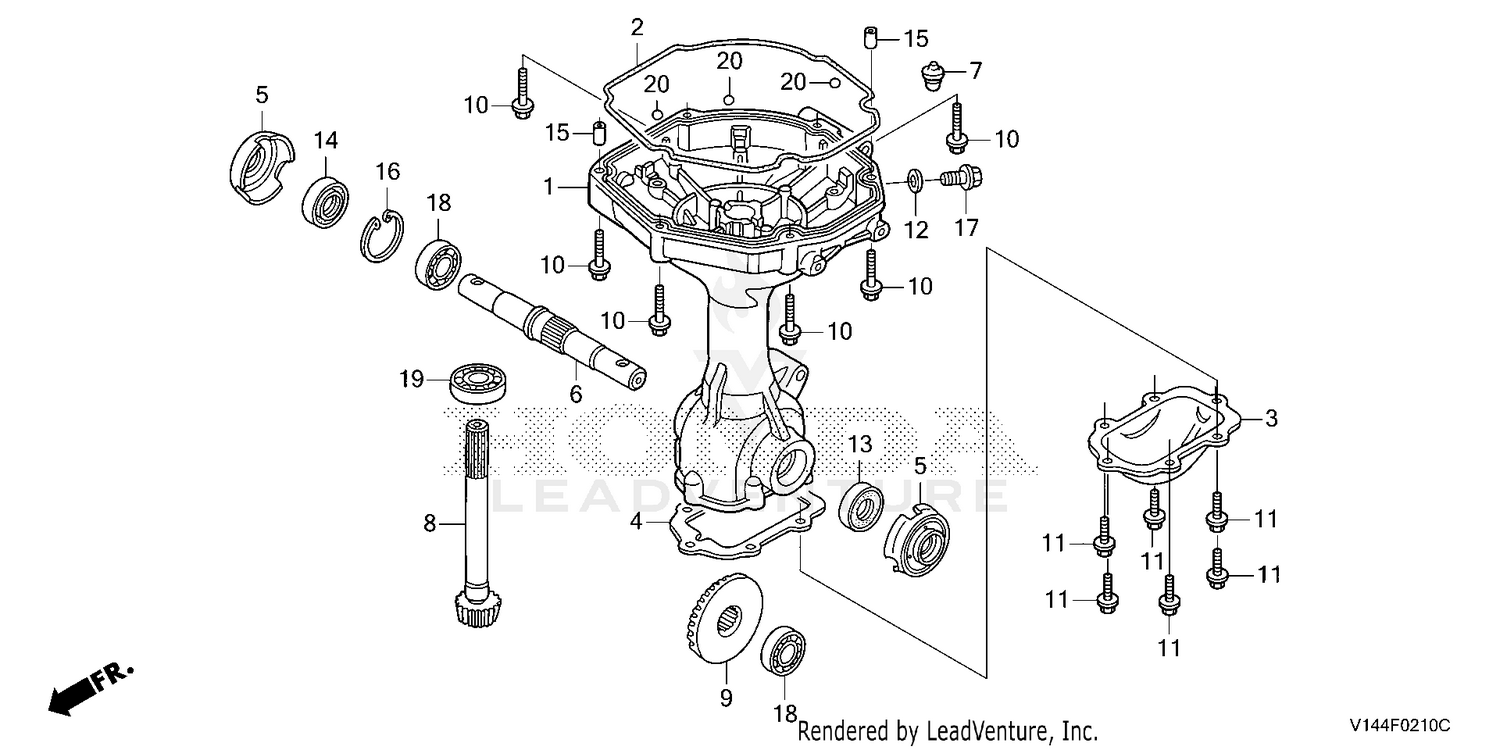

| Ref | Part Number | Description |
|---|
| 1 |
21111-V14-405 |
CASE, REDUCTION Price: $442.02 |
| 2 |
21271-729-000 |
O-RING (208MM) Price: $14.58 |
| 3 |
21282-729-000 |
COVER (LOWER) Price: $25.20 |
| 4 |
21289-V14-000 |
GASKET, COVER (LOWER) Price: $9.34 |
| 5 |
21911-729-000 |
GUARD, GRASS Price: $14.50 |
| 6 |
23371-V14-000 |
SHAFT, TINE Price: $102.94 |
| 7 |
25611-V14-010 |
CAP, TRANSMISSION OIL Price: $4.22 |
| 8 |
41131-729-000 |
PINION, BEVEL (12T) Price: $105.40 |
| 9 |
41141-729-000 |
GEAR, BEVEL (37T) Price: $109.86 |
| 10 |
90016-ZE8-000 |
BOLT, FLANGE (6X45) (Honda Code 2488187). Price: $2.90 |
| 11 |
90029-888-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 0747733). Price: $2.82 |
| 12 |
90481-705-000 |
WASHER (10.5MM) Price: $1.38 |
| 13 |
91257-729-003 |
DUST SEAL (20X40X11) Price: $15.34 |
| 14 |
91253-729-003 |
OIL SEAL (20X47X7) Price: $11.90 |
| 15 |
94301-08120 |
SEE PART DETAILS - PRI; PIN A, DOWEL (8X12) (Honda Code 0069328). Price: $2.88 |
| 16 |
94520-47000 |
CIRCLIP (INNER) (47MM) Price: $2.94 |
| 17 |
95701-10016-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (10X16) Price: $2.74 |
| 18 |
96100-62040-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204) (Honda Code 0674390). Price: $16.30 |
| 19 |
96100-63020-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302) (Honda Code 0834176). Price: $11.88 |
