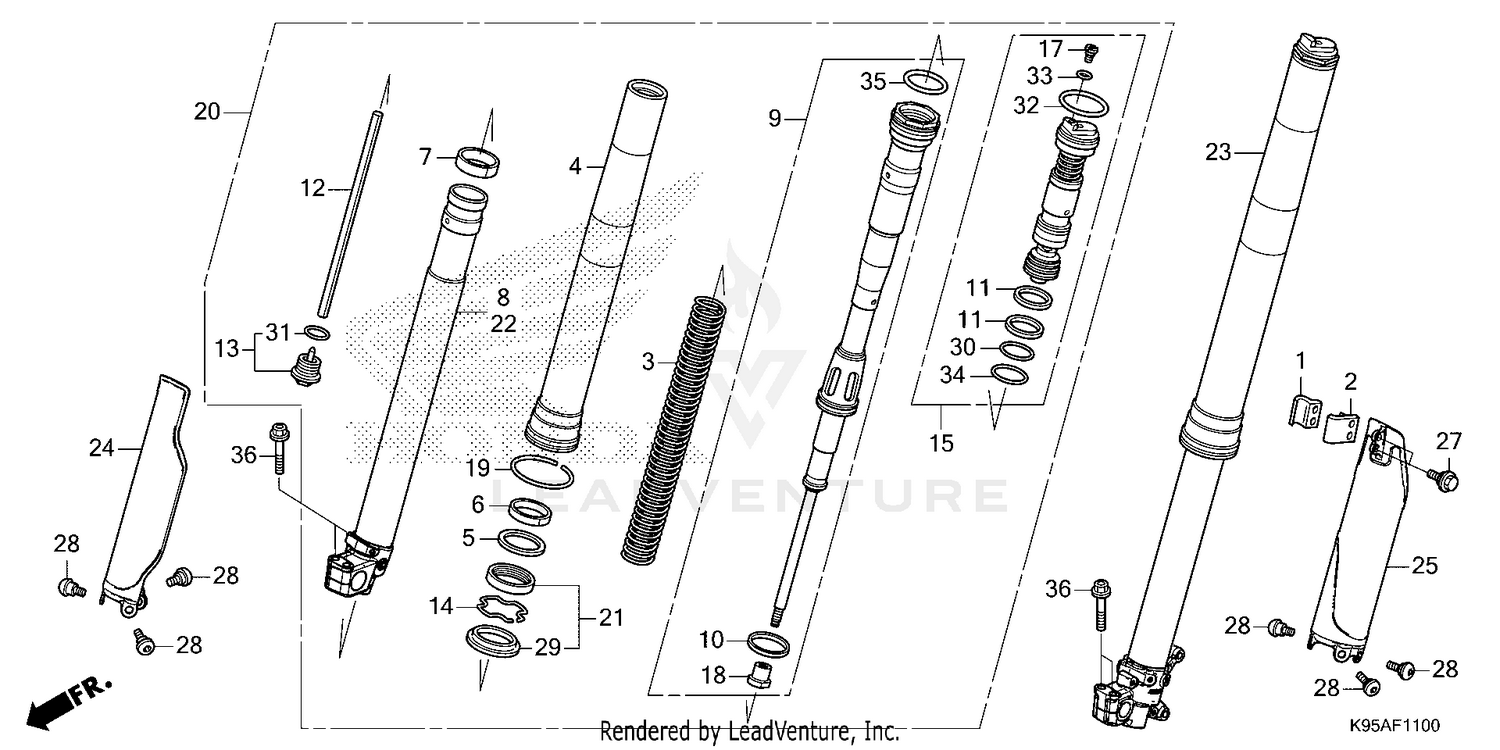

| Ref | Part Number | Description |
|---|
| 1 |
45461-MEN-000 |
CLAMP A, FR. BRAKE HOSE Price: $7.98 |
| 2 |
45462-MEN-000 |
CLAMP B, FR. BRAKE HOSE Price: $5.89 |
| 3 |
51401-MKE-A01 |
SPRING, FR. FORK (4.8N/MM) Price: $127.24 |
| 4 |
51410-MKE-A01 |
TUBE (OUTER) Price: $605.71 |
| 5 |
51412-MKE-A71 |
RING, BACK-UP Price: $8.98 |
| 6 |
51414-KRN-A91 |
BUSH, GUIDE Price: $15.85 |
| 7 |
51415-KRN-A91 |
BUSH, SLIDER Price: $15.60 |
| 8 |
51420-MKE-AF1 |
PIPE, R. SLIDE Price: $447.56 |
| 9 |
51430-K95-AA1 |
DAMPER, FR. Price: $463.15 |
| 10 |
51431-MKE-A01 |
BUSH B, SLIDER Price: $14.95 |
| 11 |
51436-KRN-A91 |
BUSH, SLIDER Price: $15.67 |
| 12 |
51438-MKE-AF1 |
COLLAR, REBOUND NEEDLE Price: $13.27 |
| 13 |
51440-KRN-A91 |
BOLT, CENTER Price: $47.35 |
| 14 |
51447-KRN-A91 |
RING, OIL SEAL STOP Price: $4.71 |
| 15 |
51450-K95-AA1 |
BOLT ASSY., FR. FORK Price: $246.53 |
| 17 |
51456-KZ3-J41 |
BOLT, PLUG Price: $7.80 |
| 18 |
51458-KRN-A91 |
NUT, LOCK Price: $13.47 |
| 19 |
51476-KRN-A91 |
RING, WEAR Price: $9.71 |
| 20 |
51400-K95-AA1 |
FORK ASSY., R. FR. Price: $1,691.51 |
| 21 |
51490-KRN-A91 |
SEAL SET, FR. FORK Price: $32.00 |
| 22 |
51520-MKE-AF1 |
PIPE, L. SLIDE Price: $447.56 |
| 23 |
51500-K95-AA1 |
FORK ASSY., L. FR. Price: $1,691.51 |
| 24 |
51610-MKE-A70ZA |
PROTECTOR, R. FR. FORK *R292R* (EXTREME RED) Price: $102.55 |
| 25 |
51620-MKE-A70ZA |
PROTECTOR, L. FR. FORK *R292R* (EXTREME RED) Price: $87.56 |
| 27 |
90113-KZ3-000 |
BOLT, FLANGE (6MM) Price: $3.24 |
| 28 |
90113-MAC-780 |
BOLT, PROTECTOR Price: $4.42 |
| 29 |
91254-KRN-A91 |
DUST SEAL Price: $15.40 |
| 30 |
91351-MKE-AF1 |
O-RING (32.7X3.5) Price: $3.62 |
| 31 |
91257-KRN-A91 |
O-RING (22.1X1.9) Price: $2.87 |
| 32 |
91258-GF4-003 |
O-RING (42.2X2.4) Price: $7.42 |
| 33 |
91301-KZ3-711 |
O-RING (3.5X1.5) Price: $3.09 |
| 34 |
91302-MA3-661 |
O-RING (35.5X2) Price: $3.33 |
| 35 |
91351-KRN-A41 |
O-RING (47.2X2.4) Price: $4.75 |
