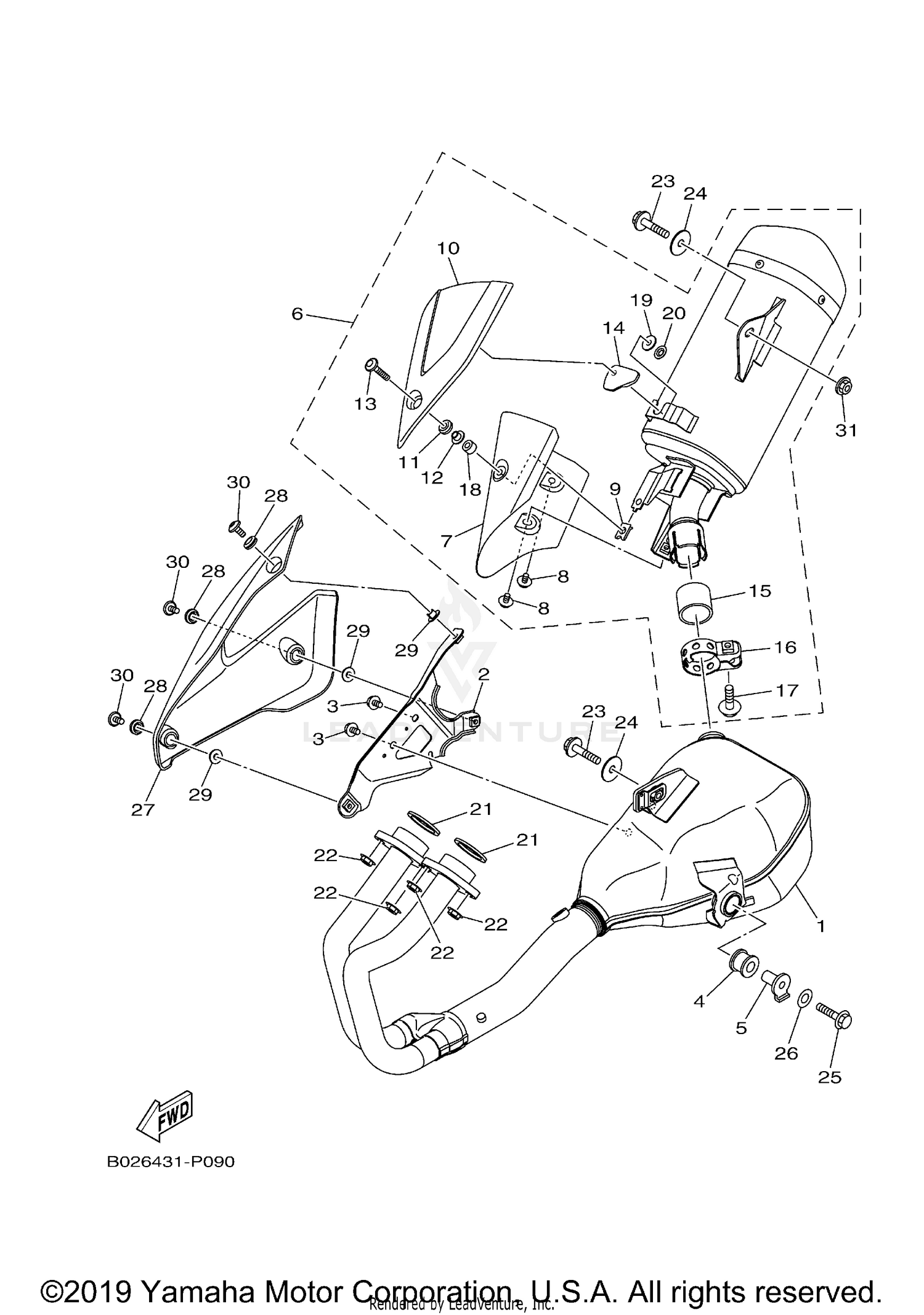

| Ref | Part Number | Description |
|---|
| 1 |
2MS-E4602-00-00 |
EXHAUST PIPE COMP. Price: $782.99 |
| 2 |
1WD-E473L-00-00 |
BRACKET 3 Price: $55.99 |
| 3 |
95027-06010-00 |
BOLT, FLANGE Price: $3.55 |
| 4 |
4XV-27424-00-00 |
DAMPER, MUFFLER This part replaces 5TP-E4747-00-00. Price: $16.49 |
| 5 |
1WD-E4775-00-00 |
NUT Price: $4.35 |
| 6 |
2MS-E4710-00-00 |
MUFFLER ASSY 1 Price: $274.99 |
| 7 |
1WD-E4758-00-00 |
PROTECTOR, SILENCER Price: $29.99 |
| 8 |
90111-06031-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06802-00. Price: $9.49 |
| 9 |
90183-06818-00 |
NUT, SPRING Price: $0.80 |
| 10 |
1WD-E4728-00-00 |
PROTECTOR, MUFFLER 2 Price: $113.99 |
| 11 |
90480-12581-00 |
GROMMET Price: $8.49 |
| 12 |
90387-087L0-00 |
COLLAR Price: $9.49 |
| 13 |
90111-06847-00 |
BOLT, HEX. SOCKET BUTTON Price: $1.50 |
| 14 |
1WD-E4763-00-00 |
SPACER Price: $39.99 |
| 15 |
54D-E4714-00-00 |
GASKET, MUFFLER Price: $10.49 |
| 16 |
1WD-E4715-00-00 |
BAND, MUFFLER Price: $10.49 |
| 17 |
95027-08035-00 |
BOLT, FLANGE Price: $9.49 |
| 18 |
90387-068N4-00 |
COLLAR Price: $2.75 |
| 19 |
90201-06088-00 |
WASHER, PLATE Price: $9.49 |
| 20 |
90183-06071-00 |
NUT, SPRING This part replaces 90183-06011-00. Price: $0.80 |
| 21 |
1WD-E4613-00-00 |
GASKET, EXHAUST PIPE Price: $9.49 |
| 22 |
95707-08500-00 |
NUT,FLANGE (JN5) Price: $1.95 |
| 23 |
90105-088G7-00 |
BOLT, FLANGE Price: $1.40 |
| 24 |
90201-08612-00 |
WASHER, PLATE Price: $9.49 |
| 25 |
95817-08030-00 |
BOLT, FLANGE Price: $9.49 |
| 26 |
90201-087F0-00 |
WASHER, PLATE Price: $6.49 |
| 27 |
1WD-E4628-00-00 |
PROTECTOR, EXHAUST PIPE Price: $19.99 |
| 28 |
90480-12581-00 |
GROMMET Price: $8.49 |
| 29 |
90387-087L0-00 |
COLLAR Price: $9.49 |
| 30 |
90111-06087-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06152-00. Price: $5.49 |
