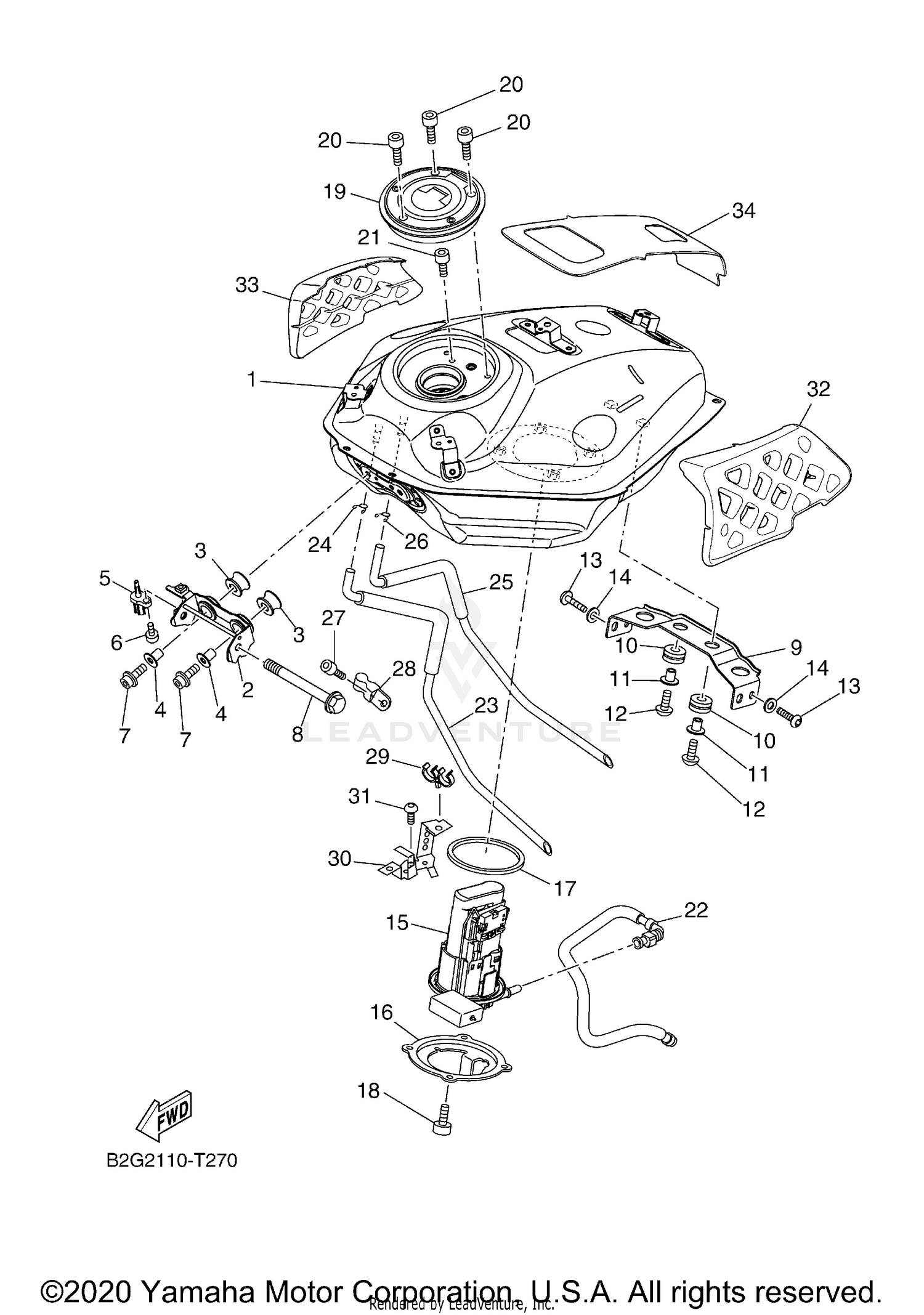

| Ref | Part Number | Description |
|---|
| 1 |
B2G-24110-00-00 |
FUEL TANK COMP. Price: $314.99 |
| 2 |
1WS-2412Y-00-00 |
BRACKET, TANK FITTING Price: $37.99 |
| 3 |
3D7-24339-00-00 |
GROMMET Price: $5.49 |
| 4 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 5 |
5YU-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $37.99 |
| 6 |
98517-05012-00 |
SCREW, PAN HEAD This part replaces 98502-05012-00. Price: $5.49 |
| 7 |
90110-06172-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 8 |
95817-08100-00 |
BOLT, FLANGE Price: $6.49 |
| 9 |
B2G-2413Y-00-00 |
BRACKET, TANK FITTING Price: $17.99 |
| 10 |
90480-16003-00 |
GROMMET Price: $10.49 |
| 11 |
90387-06287-00 |
COLLAR Price: $10.49 |
| 12 |
90111-06084-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 13 |
92012-06014-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 14 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 15 |
1WS-13907-01-00 |
FUEL PUMP COMP. Price: $261.99 |
| 16 |
1WS-24491-01-00 |
BRACKET, FUEL PUMP Price: $16.49 |
| 17 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 18 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 19 |
1WS-24602-00-00 |
CAP ASSY Price: $321.99 |
| 20 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 21 |
91317-05010-00 |
BOLT, HEX. SOCKET HEAD Price: $2.75 |
| 22 |
1WS-13971-01-00 |
PIPE, FUEL 1 Price: $84.99 |
| 23 |
1WS-24318-00-00 |
PIPE, OVERFLOW Price: $32.99 |
| 24 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 25 |
1WS-24312-00-00 |
PIPE 2 Price: $30.99 |
| 26 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 27 |
92017-06010-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 28 |
1WS-24135-00-00 |
CLAMP 1 Price: $11.49 |
| 29 |
90464-11007-00 |
CLAMP Price: $4.15 |
| 30 |
1WS-2419F-00-00 |
BRACKET, CANISTOR Price: $17.49 |
| 31 |
90111-06119-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 32 |
B34-F414H-02-00 |
DAMPER, PLATE 1 Price: $98.99 |
| 33 |
B34-F414J-03-00 |
DAMPER, PLATE 2 This part replaces B34-F414J-02-00. Price: $98.99 |
