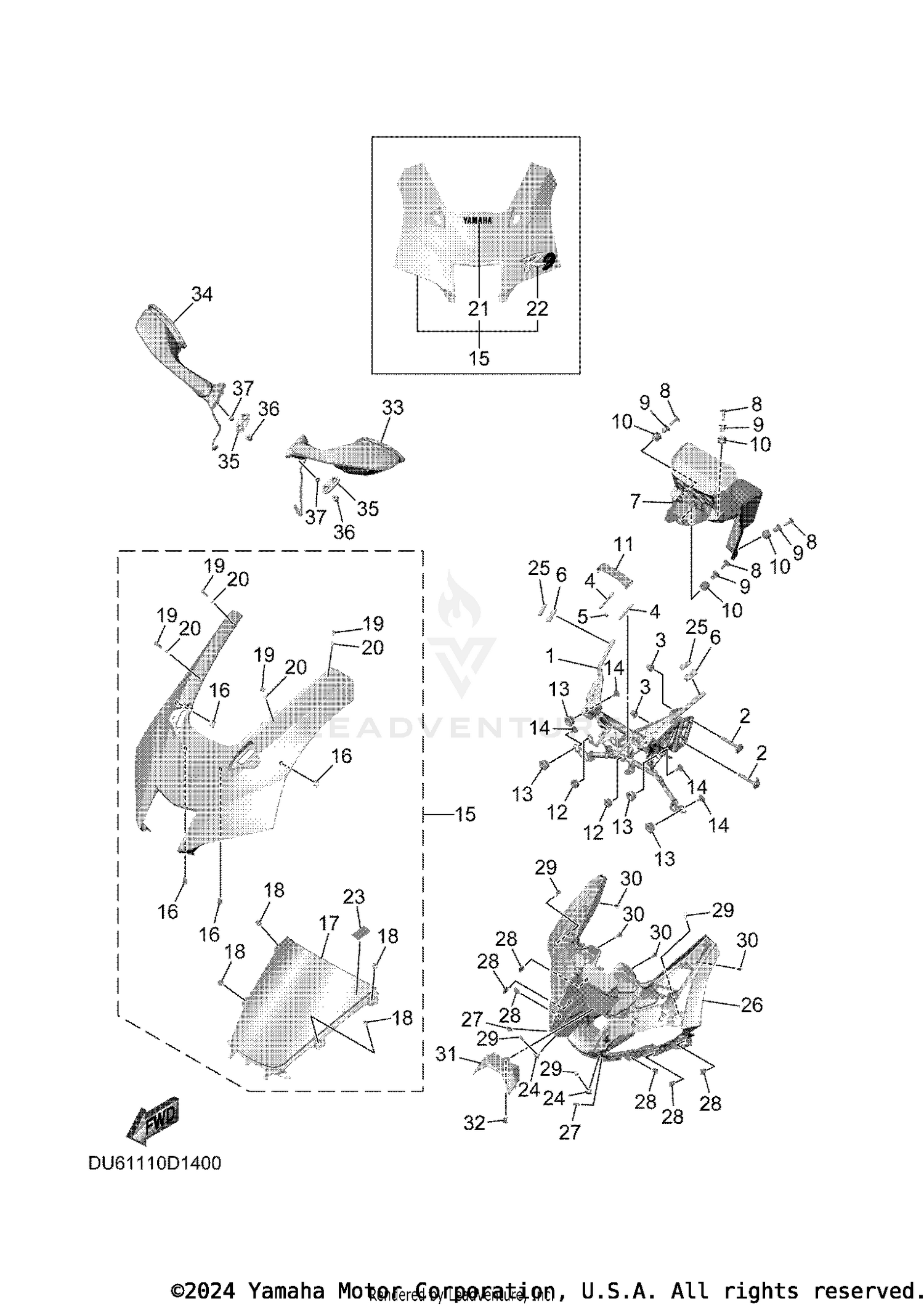

| Ref | Part Number | Description |
|---|
| 1 |
BKN-28356-00-00 |
STAY 1 Price: $289.99 |
| 2 |
BKN-28336-00-00 |
PLATE Price: $12.49 |
| 3 |
90176-08026-00 |
NUT, CROWN Price: $16.49 |
| 4 |
2C0-28247-00-00 |
DAMPER 4 Price: $4.80 |
| 5 |
4D9-28425-00-00 |
DAMPER 3 Price: $0.85 |
| 6 |
BKN-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $3.98 |
| 7 |
BKN-28365-00-00 |
COVER Price: $35.99 |
| 8 |
90111-06117-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.80 |
| 9 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 10 |
90480-14023-00 |
GROMMET This part replaces 90480-14102-00. Price: $8.49 |
| 11 |
7H3-82131-00-00 |
BAND, BATTERY Price: $18.99 |
| 12 |
90480-13567-00 |
GROMMET Price: $5.49 |
| 13 |
90480-14039-00 |
GROMMET Price: $6.49 |
| 14 |
90167-05020-00 |
SCREW, TAPPING Price: $3.95 |
| 16 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 17 |
BKN-28381-00-00 |
WINDSHIELD Price: $155.99 |
| 18 |
90179-05523-00 |
NUT Price: $7.49 |
| 19 |
90150-05024-00 |
SCREW, ROUND HEAD Price: $3.35 |
| 20 |
90202-05088-00 |
WASHER, PLATE Price: $7.70 |
| 21 |
99241-00080-00 |
EMBLEM, YAMAHA Price: $15.49 |
| 22 |
DU6-2839H-00-00 |
EMBLEM 1 Price: $40.99 |
| 23 |
4B5-2815K-00-00 |
LABEL, NOTICE WINDSHIELD 1 Price: $8.49 |
| 24 |
BKN-28334-00-00 |
CLIP, COWLING Price: $4.50 |
| 25 |
BKN-2411N-00-00 |
HOOK,SIDE COVER 3 Price: $11.49 |
| 26 |
BKN-2835H-00-00 |
BODY, FRONT UPPER 2 Price: $197.99 |
| 27 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 28 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 29 |
90464-04005-00 |
CLAMP Price: $5.49 |
| 30 |
90167-05079-00 |
SCREW, TAPPING Price: $4.50 |
| 32 |
90464-04005-00 |
CLAMP Price: $5.49 |
| 33 |
B3L-F6280-30-00 |
REAR VIEW MIRROR A Price: $260.99 |
| 34 |
B3L-F6290-30-00 |
REAR VIEW MIRROR A Price: $260.99 |
| 35 |
4C8-26298-00-00 |
PLATE, MIRROR FITTING 1 Price: $8.49 |
| 36 |
90179-06500-00 |
NUT Price: $8.49 |
