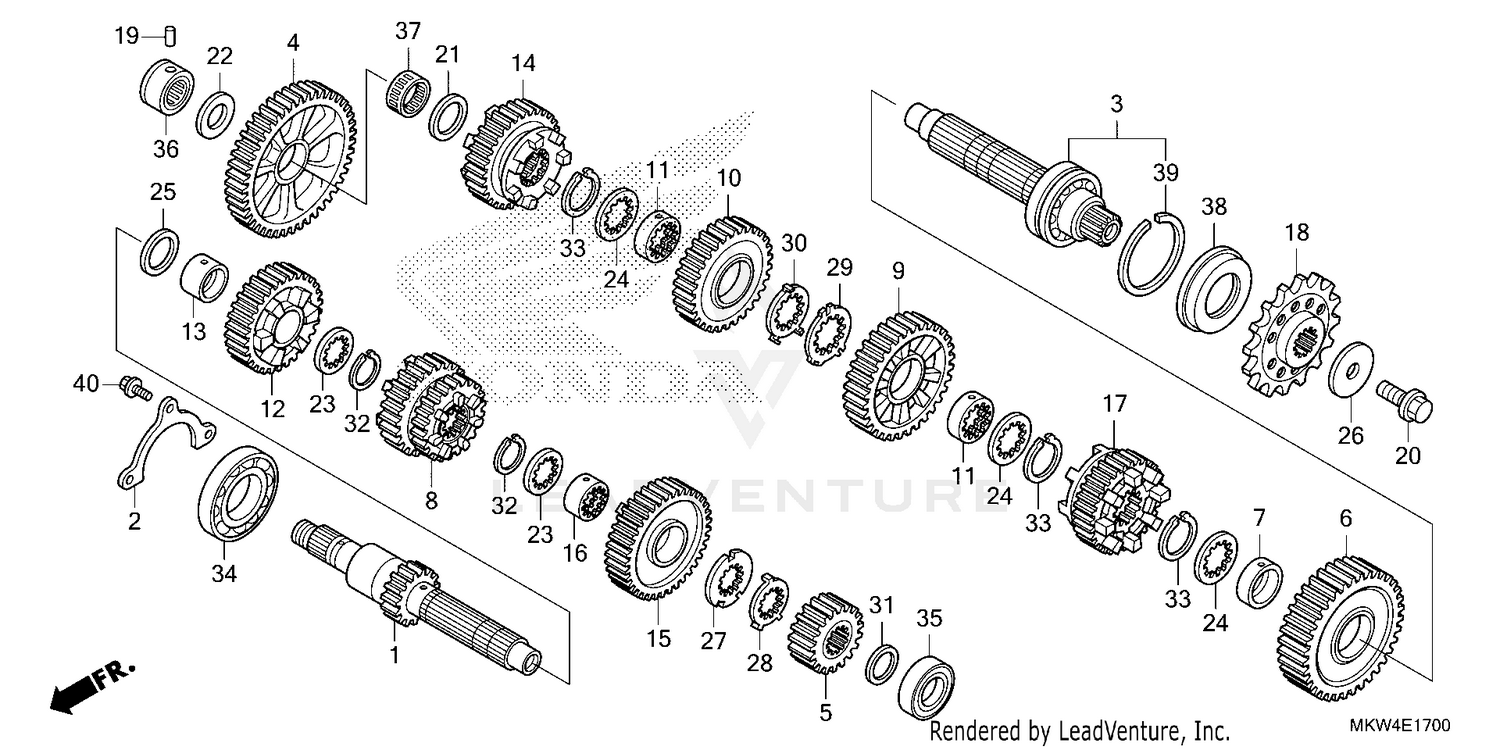

| Ref | Part Number | Description |
|---|
| 1 |
23211-MKW-D00 |
MAINSHAFT (15T) Price: $269.07 |
| 2 |
23212-MGS-D30 |
PLATE, MAINSHAFT BEARING SETTING Price: $3.65 |
| 3 |
23220-MKW-D00 |
COUNTERSHAFT Price: $286.49 |
| 4 |
23421-MKW-D00 |
GEAR, COUNTERSHAFT FIRST (40T) Price: $127.91 |
| 5 |
23431-MKW-D00 |
GEAR, MAINSHAFT SECOND (21T) Price: $64.38 |
| 6 |
23441-MKW-D00 |
GEAR, COUNTERSHAFT SECOND (40T) Price: $127.91 |
| 7 |
23442-MM4-000 |
COLLAR (28MM) Price: $26.98 |
| 8 |
23451-MKW-D00 |
GEAR, MAINSHAFT THIRD & FOURTH (22T/28T) Price: $143.95 |
| 9 |
23461-MKW-D00 |
GEAR, COUNTERSHAFT THIRD (32T) Price: $115.91 |
| 10 |
23481-MKW-D00 |
GEAR, COUNTERSHAFT FOURTH (33T) Price: $115.91 |
| 11 |
23482-MV9-670 |
COLLAR, SPLINE (28X31X9) Price: $21.91 |
| 12 |
23491-MKW-D00 |
GEAR, MAINSHAFT FIFTH (31T) Price: $125.98 |
| 13 |
23492-MGS-D30 |
COLLAR (25X28X19) Price: $10.44 |
| 14 |
23501-MKW-D00 |
GEAR, COUNTERSHAFT FIFTH (30T) Price: $131.95 |
| 15 |
23511-MKW-D00 |
GEAR, MAINSHAFT SIXTH (38T) Price: $124.91 |
| 16 |
23512-MV9-670 |
COLLAR, SPLINE (25X28X13) Price: $30.98 |
| 17 |
23521-MKW-D00 |
GEAR, COUNTERSHAFT SIXTH (31T) Price: $131.95 |
| 18 |
23801-MKW-D00 |
SPROCKET, DRIVE (16T) Price: $69.29 |
| 19 |
24261-283-000 |
PIN, GEARSHIFT FORK GUIDE Price: $5.29 |
| 20 |
90037-422-003 |
BOLT, SPECIAL (10MM) Price: $9.20 |
| 21 |
90402-MEW-920 |
WASHER, THRUST (24X32X1.5) Price: $2.58 |
| 23 |
90451-KY2-000 |
WASHER, SPLINE (25X31X1.5) Price: $4.80 |
| 24 |
90452-MR7-000 |
WASHER, SPLINE (28X34X1.5) Price: $7.24 |
| 25 |
90456-MA6-000 |
WASHER, THRUST (25MM) Price: $3.04 |
| 26 |
90459-438-000 |
WASHER (10.2MM) Price: $7.33 |
| 27 |
90461-MW0-000 |
WASHER, SPLINE (25MM) Price: $6.35 |
| 28 |
90462-MBW-000 |
WASHER, LOCK (25MM) Price: $7.80 |
| 29 |
90463-MR7-000 |
WASHER, SPLINE (28MM) Price: $12.07 |
| 30 |
90464-MR7-000 |
WASHER, LOCK (28MM) Price: $12.07 |
| 31 |
90469-ME5-000 |
WASHER, THRUST (20X0.9) Price: $5.49 |
| 32 |
90601-107-000 |
CIRCLIP (25MM) Price: $4.71 |
| 33 |
90603-MN4-000 |
CIRCLIP (28MM) Price: $4.71 |
| 34 |
91001-MGS-D31 |
BEARING, RADIAL BALL (31X68X15) Price: $24.16 |
| 35 |
91006-MGS-D31 |
BEARING, RADIAL BALL (6204U) Price: $19.80 |
| 36 |
91022-MJE-DB1 |
BEARING, NEEDLE (20MM) (NTN) Price: $49.93 |
| 37 |
91026-MEL-003 |
BEARING, NEEDLE (24X28X10) Price: $12.42 |
| 38 |
91207-KT8-003 |
OIL SEAL (34X62X8) Price: $15.49 |
| 39 |
94560-62200 |
RING, SNAP (62MM) Price: $3.47 |
