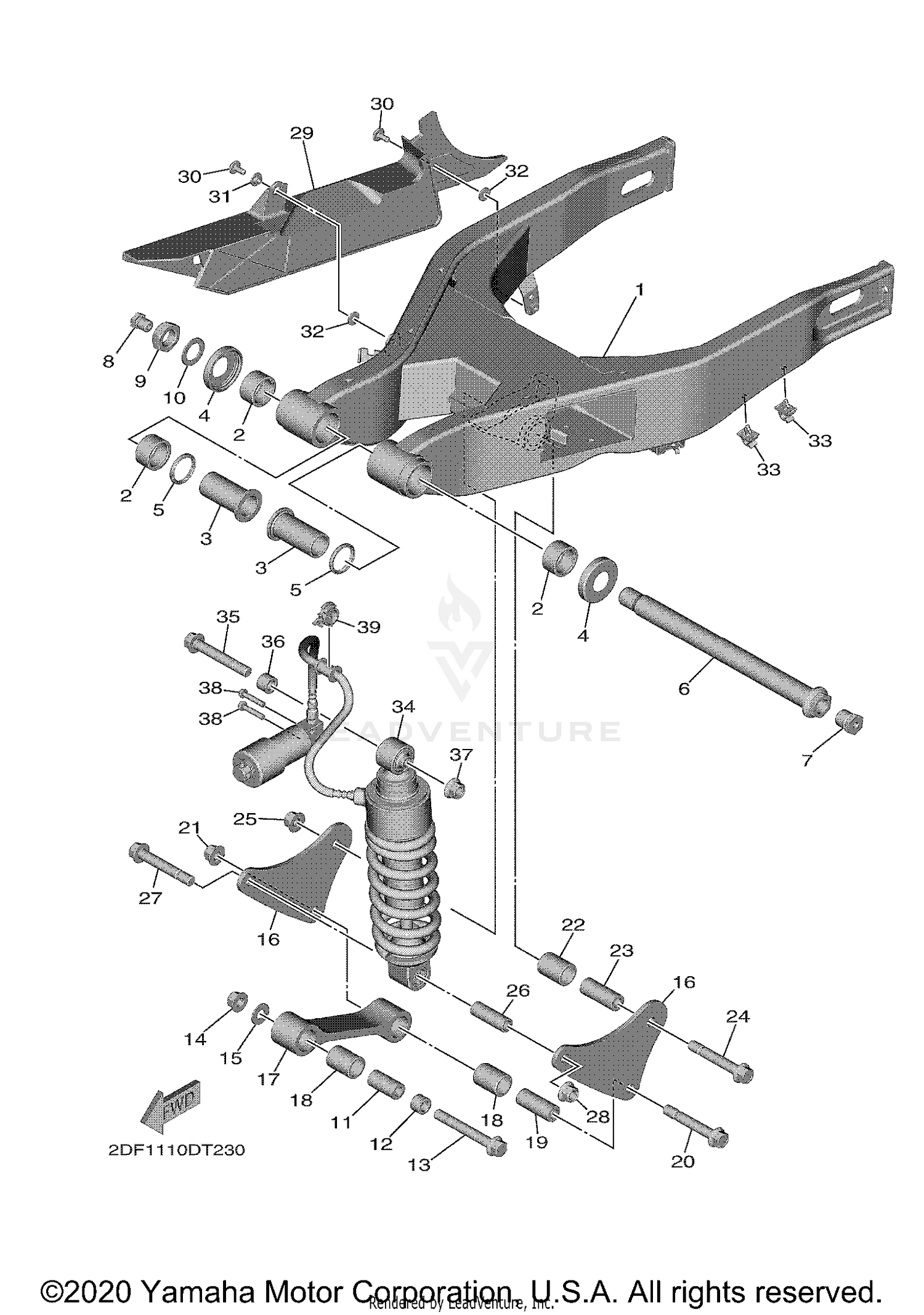

| Ref | Part Number | Description |
|---|
| 2 |
93317-330A1-00 |
BEARING Price: $35.99 |
| 3 |
2DF-22184-00-00 |
BUSH Price: $33.99 |
| 4 |
2C0-22128-00-00 |
COVER, THRUST 1 Price: $31.99 |
| 5 |
93106-30002-00 |
OIL SEAL Price: $5.99 |
| 6 |
2DF-22141-00-00 |
SHAFT, PIVOT Price: $74.99 |
| 7 |
2DF-22123-00-00 |
BUSH 1 Price: $30.99 |
| 8 |
2DF-22124-00-00 |
BUSH 2 Price: $22.99 |
| 9 |
90185-22009-00 |
NUT, SELF-LOCKING Price: $21.99 |
| 10 |
90201-22021-00 |
WASHER, PLATE Price: $6.49 |
| 11 |
90387-12605-00 |
COLLAR Price: $9.99 |
| 12 |
90387-12607-00 |
COLLAR Price: $5.99 |
| 13 |
90105-12064-00 |
BOLT, FLANGE Price: $16.49 |
| 14 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 15 |
90201-12045-00 |
WASHER, PLATE Price: $6.49 |
| 16 |
2DF-2217A-00-00 |
ARM, RELAY Price: $27.99 |
| 17 |
2DF-2217M-00-00 |
ARM 1 Price: $47.99 |
| 18 |
93317-42060-00 |
BEARING Price: $50.99 |
| 19 |
90387-12606-00 |
COLLAR Price: $11.49 |
| 20 |
90105-12057-00 |
BOLT, FLANGE Price: $12.49 |
| 21 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 22 |
93317-42060-00 |
BEARING Price: $50.99 |
| 23 |
90387-12606-00 |
COLLAR Price: $11.49 |
| 24 |
90105-12057-00 |
BOLT, FLANGE Price: $12.49 |
| 25 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 26 |
90387-12047-00 |
COLLAR Price: $8.49 |
| 27 |
90105-12057-00 |
BOLT, FLANGE Price: $12.49 |
| 28 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 29 |
2DF-22312-00-00 |
CASE, CHAIN 2 Price: $63.99 |
| 30 |
90111-06097-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.55 |
| 31 |
90387-06048-00 |
COLLAR Price: $9.49 |
| 32 |
90201-063A5-00 |
WASHER, PLATE Price: $10.49 |
| 33 |
90464-07259-00 |
CLAMP Price: $3.23 |
| 34 |
2DF-22210-00-00 |
SHOCK ABSORBER ASSY, REAR Price: $807.99 |
| 35 |
90105-12119-00 |
BOLT, FLANGE Price: $7.49 |
| 36 |
90387-12607-00 |
COLLAR Price: $5.99 |
| 37 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 38 |
95027-06030-00 |
BOLT, FLANGE Price: $4.30 |
