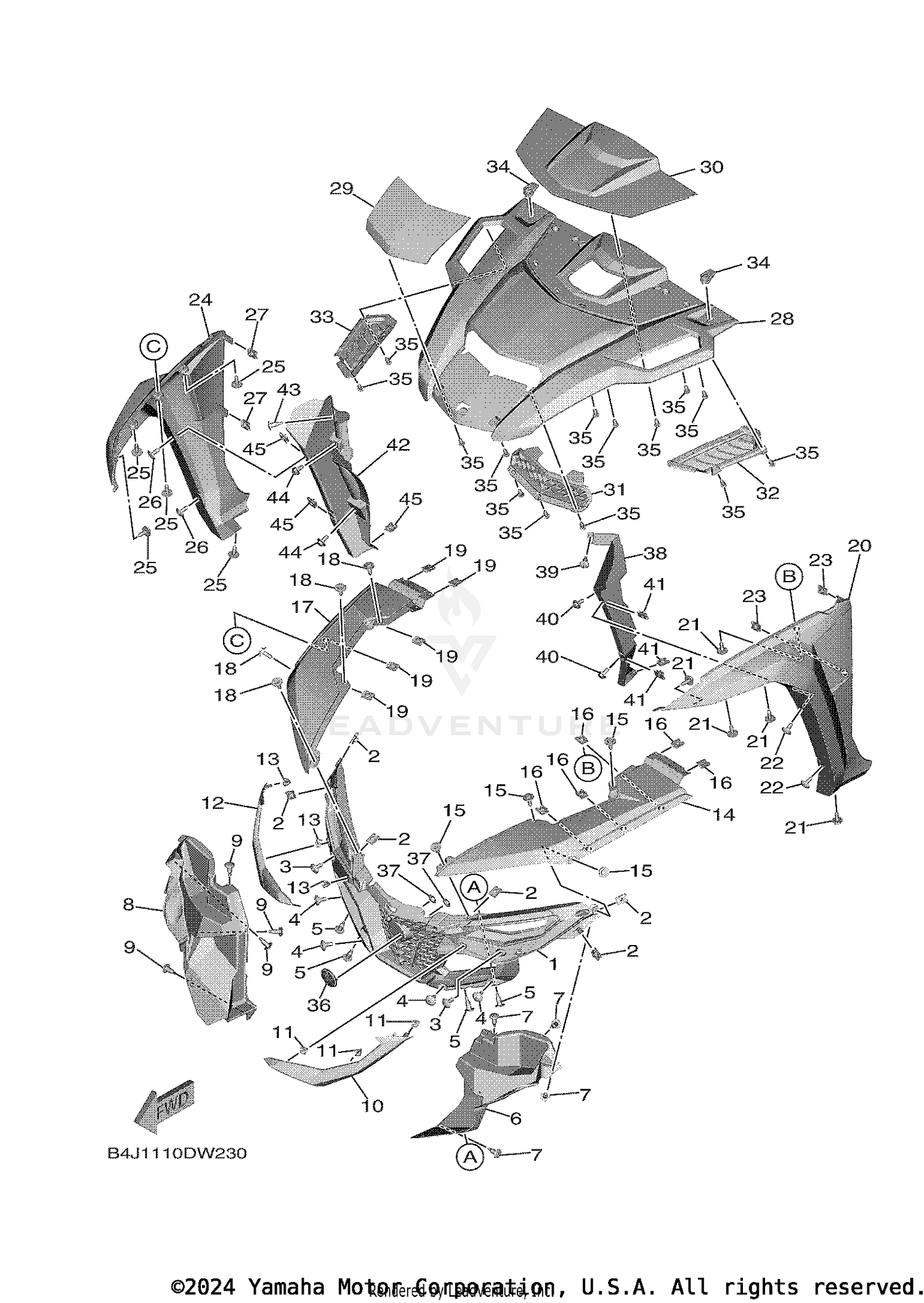

| Ref | Part Number | Description |
|---|
| 1 |
B4J-F8309-00-00 |
GRILLE, FRONT Price: $146.99 |
| 2 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 3 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 4 |
90109-06334-00 |
BOLT Price: $2.80 |
| 5 |
90269-07805-00 |
RIVET Price: $1.75 |
| 6 |
B4J-E246A-02-00 |
COVER 1 Price: $31.99 |
| 7 |
90269-07805-00 |
RIVET Price: $1.75 |
| 8 |
B4J-E246E-02-00 |
COVER 2 Price: $31.99 |
| 9 |
90269-07805-00 |
RIVET Price: $1.75 |
| 10 |
B4J-F835U-40-00 |
PANEL 1 Price: $21.99 |
| 11 |
90468-040A0-00 |
CLIP Price: $9.49 |
| 12 |
B4J-F835V-40-00 |
PANEL 2 Price: $34.99 |
| 13 |
90468-040A0-00 |
CLIP Price: $9.49 |
| 14 |
B4J-F1552-30-00 |
FENDER, INNER Price: $81.99 |
| 15 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 16 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 17 |
B4J-F1553-30-00 |
FENDER, INNER 2 Price: $79.99 |
| 18 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 19 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 20 |
B4J-F1511-30-00 |
FENDER, FRONT Price: $199.99 |
| 21 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 22 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 23 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 24 |
B4J-F1556-30-00 |
FENDER, FRONT 2 Price: $199.99 |
| 25 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 26 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 27 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 28 |
B4J-F197H-01-00 |
HOOD 3 Price: $174.99 |
| 29 |
B4J-F835E-00-00 |
HOOD 1 Price: $15.49 |
| 30 |
B4J-F835F-01-00 |
HOOD 2 Price: $36.99 |
| 31 |
B4J-K715N-01-00 |
GRILLE Price: $16.49 |
| 32 |
B4J-K715H-00-00 |
VENT, FRONT 1 Price: $9.49 |
| 33 |
B4J-K715J-00-00 |
VENT, FRONT 2 Price: $9.49 |
| 34 |
1XD-2175K-10-00 |
LEVER, LOCK Price: $12.49 |
| 35 |
90169-06802-00 |
TAPPING SCREW Price: $1.15 |
| 36 |
B4J-F153E-00-00 |
EMBLEM, YAMAHA Price: $19.49 |
| 37 |
90183-06071-00 |
NUT, SPRING Price: $0.80 |
| 38 |
B4J-F152R-00-00 |
GUARD, MUD Price: $18.49 |
| 39 |
90269-07805-00 |
RIVET Price: $1.75 |
| 40 |
90119-06242-00 |
BOLT, WITH WASHER This part replaces 90119-06044-00. Price: $8.49 |
| 41 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 42 |
B4J-F1629-00-00 |
GUARD, MUD Price: $17.49 |
| 43 |
90269-07805-00 |
RIVET Price: $1.75 |
| 44 |
90119-06242-00 |
BOLT, WITH WASHER This part replaces 90119-06044-00. Price: $8.49 |
