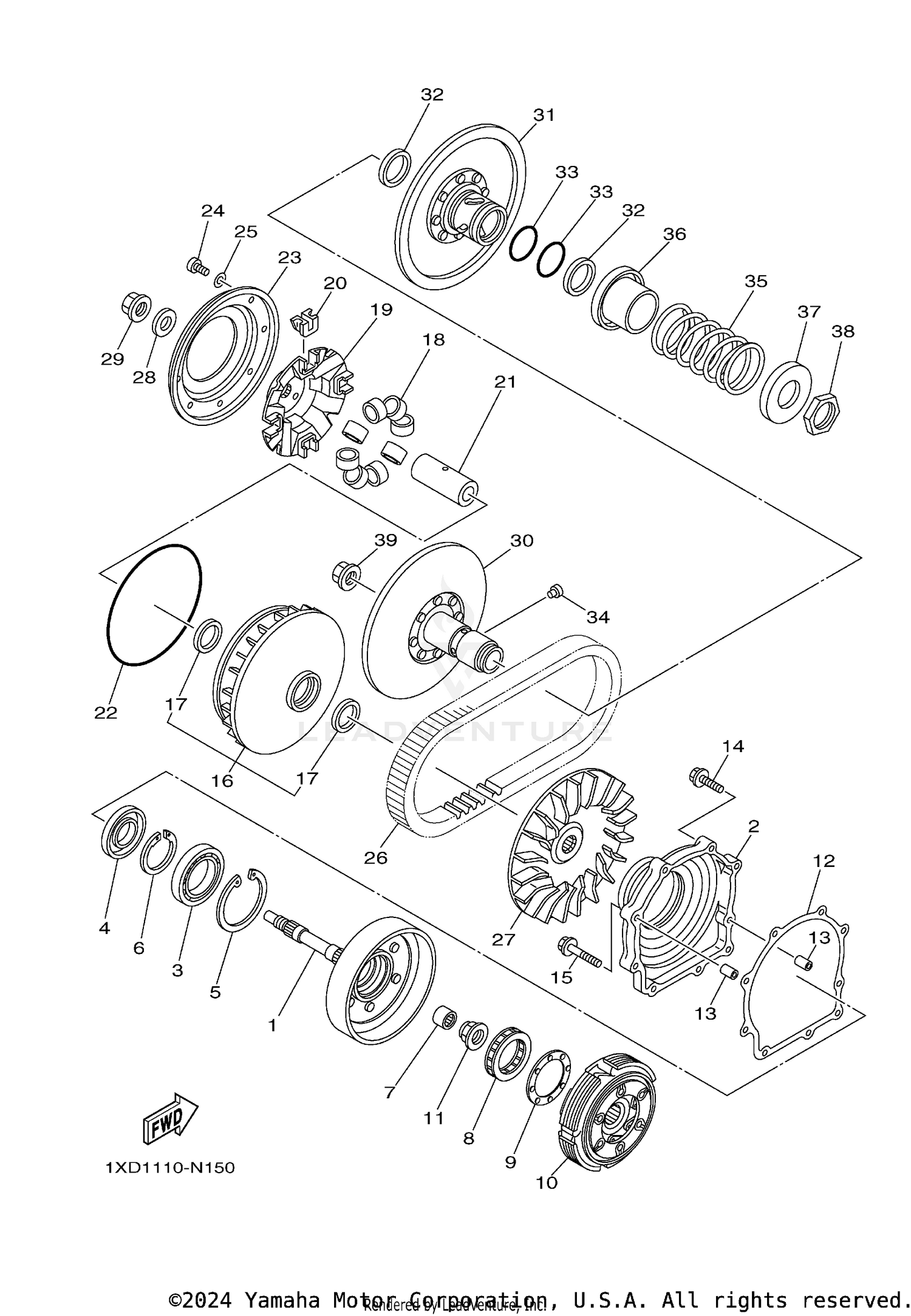

| Ref | Part Number | Description |
|---|
| 1 |
2PG-16611-00-00 |
CLUTCH HOUSING COMP. Price: $397.99 |
| 2 |
3B4-15163-00-00 |
HOUSING, BEARING 1 Price: $120.99 |
| 3 |
93316-01003-00 |
BEARING Price: $113.99 |
| 4 |
93102-35004-00 |
OIL SEAL Price: $23.99 |
| 5 |
93420-80066-00 |
CIRCLIP This part replaces 99009-80500-00. Price: $16.49 |
| 6 |
93410-46079-00 |
CIRCLIP Price: $9.49 |
| 7 |
93315-21813-00 |
BEARING Price: $39.99 |
| 8 |
4SH-16664-00-00 |
BEARING, ONE WAY Price: $167.99 |
| 9 |
1HP-16717-00-00 |
RING, SEAL Price: $34.99 |
| 10 |
2PG-16620-00-00 |
CLUTCH CARRIER ASSY Price: $363.99 |
| 11 |
90179-22021-00 |
NUT Price: $28.99 |
| 12 |
3B4-15463-00-00 |
GASKET, COVER PINION 2 Price: $14.49 |
| 13 |
99530-10116-00 |
PIN, DOWEL Price: $4.40 |
| 14 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 15 |
95022-06040-00 |
BOLT, FLANGE Price: $3.70 |
| 16 |
1XD-17606-00-00 |
PRIMARY SLIDING SHEAVE COMP. Price: $290.99 |
| 17 |
93101-35001-00 |
OIL SEAL Price: $23.99 |
| 18 |
3B4-17632-01-00 |
WEIGHT Price: $17.49 |
| 19 |
3B4-17623-02-00 |
CAM Price: $52.99 |
| 20 |
16B-17653-00-00 |
SLIDER Price: $10.49 |
| 21 |
1XD-17645-00-00 |
COLLAR Price: $90.99 |
| 22 |
93211-59001-00 |
O-RING Price: $22.99 |
| 23 |
4WV-17639-10-00 |
STOPPER Price: $35.99 |
| 24 |
90157-04006-00 |
SCREW, PAN HEAD Price: $5.49 |
| 26 |
1XD-17641-00-00 |
V-BELT Price: $203.99 |
| 27 |
3B4-17611-00-00 |
SHEAVE, PRIMARY FIXED Price: $188.99 |
| 28 |
90201-190T7-00 |
WASHER, PLATE Price: $9.49 |
| 29 |
90179-16005-00 |
NUT Price: $12.49 |
| 30 |
1XD-17660-00-00 |
SECONDARY FIXED SHEAVE COMP. Price: $353.99 |
| 31 |
2PG-17670-00-00 |
SECONDARY SLIDING SHEAVE Price: $206.99 |
| 32 |
93104-41119-00 |
OIL SEAL Price: $18.49 |
| 33 |
93210-44545-00 |
O-RING Price: $14.49 |
| 34 |
4CW-17664-00-00 |
PIN, GUIDE Price: $8.49 |
| 35 |
90501-650A0-00 |
SPRING, COMPRESSION Price: $49.99 |
| 36 |
4WV-17684-00-00 |
SEAT, SECONDARY SPRING Price: $62.99 |
| 37 |
4WV-17644-00-00 |
SEAT, SPRING Price: $32.99 |
| 38 |
90170-36279-00 |
NUT Price: $18.49 |
