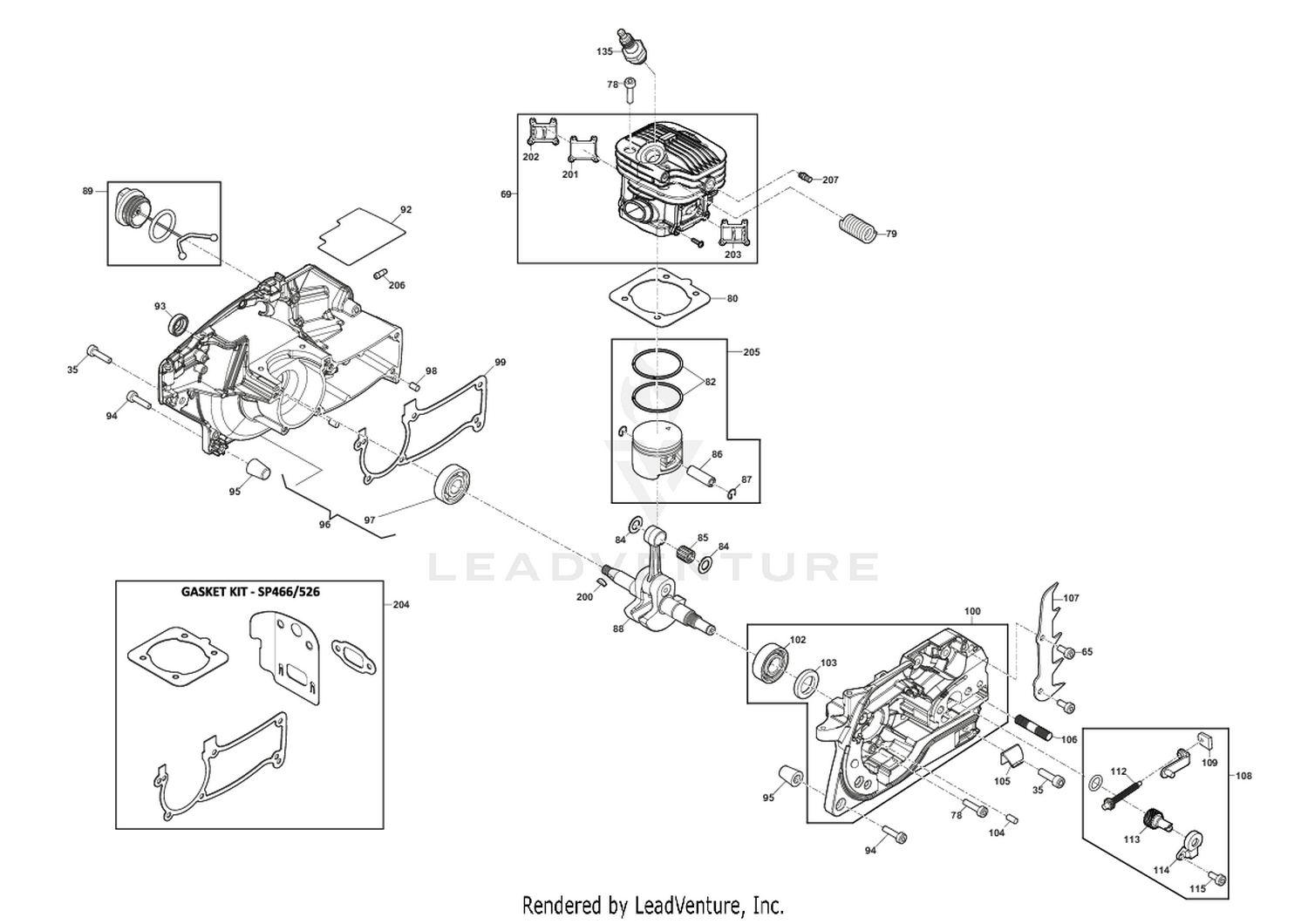

Engine - Cylinder/Piston
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 2132180 | Screw Price: Call Us |
| 65 | 9943-0516-16 | Screw Price: Call Us |
| 69 | 118805706/0 | Cylinder Assy Price: Call Us |
| 78 | 2132550 | Screw Price: Call Us |
| 79 | 118804931/0 | Spring Price: Call Us |
| 80 | 118805215/0 | Cylinder Gasket Price: Call Us |
| 82 | 118804249/0 | Piston Ring Price: Call Us |
| 84 | 118804244/0 | Needle Bearing Gasket Price: Call Us |
| 85 | 118804412/0 | Needle bearing Price: Call Us |
| 86 | 118804223/0 | Piston Pin Price: Call Us |
| 87 | 118804255/0 | Circlip Price: Call Us |
| 88 | 118804393/0 | Crankshaft Price: Call Us |
| 89 | 118804252/0 | Oil Tank Cap Assy Price: Call Us |
| 92 | 118804341/0 | Heat Insulator Gasket Price: Call Us |
| 93 | 118804350/0 | Oil Seal Price: Call Us |
| 94 | 2132550 | Screw Price: Call Us |
| 95 | 118804309/0 | Shock Absorber Price: Call Us |
| 96 | 118805304/0 | Left Crankcase Price: Call Us |
| 97 | 3112040 | Ball Bearing Price: Call Us |
| 98 | 118801158/0 | Pin Price: Call Us |
| 99 | 118804620/0 | Crankcase Gasket Price: Call Us |
| 100 | 118804929/0 | Right Crankcase Assy Price: Call Us |
| 102 | 118804324/0 | Bearing Price: Call Us |
| 103 | 118804319/0 | Oil Seal Price: Call Us |
| 104 | 118801158/0 | Pin Price: Call Us |
| 105 | 118804302/0 | Chain Guard Price: Call Us |
| 106 | 118804284/1 | Bolt Price: Call Us |
| 107 | 118804298/0 | Spike Price: Call Us |
| 108 | 118804928/1 | Chain Tensioner Price: Call Us |
| 109 | 118804285/0 | Plate Price: Call Us |
| 112 | 118804289/0 | Tensioner Screw Price: Call Us |
| 113 | 118804288/0 | Chain Tensioner Price: Call Us |
| 114 | 118804928/1 | Chain Tensioner This part replaces 118804287/0. Price: Call Us |
| 115 | 2135180 | Screw Price: Call Us |
| 135 | 3210024 | Spark Plug Price: Call Us |
| 200 | 118800959/0 | Key Price: Call Us |
| 201 | 118805209/0 | Cylinder cover plate Gasket Price: Call Us |
| 202 | 118805213/0 | Left Cylinder Cover Plate Price: Call Us |
| 203 | 118805214/0 | Right cylinder cover plate Price: Call Us |
| 204 | 118804253/0 | Gaskets Assy Price: Call Us |
| 205 | 118804247/0 | Piston Assy Price: Call Us |
| 206 | 118804283/0 | Nozzle Price: Call Us |
