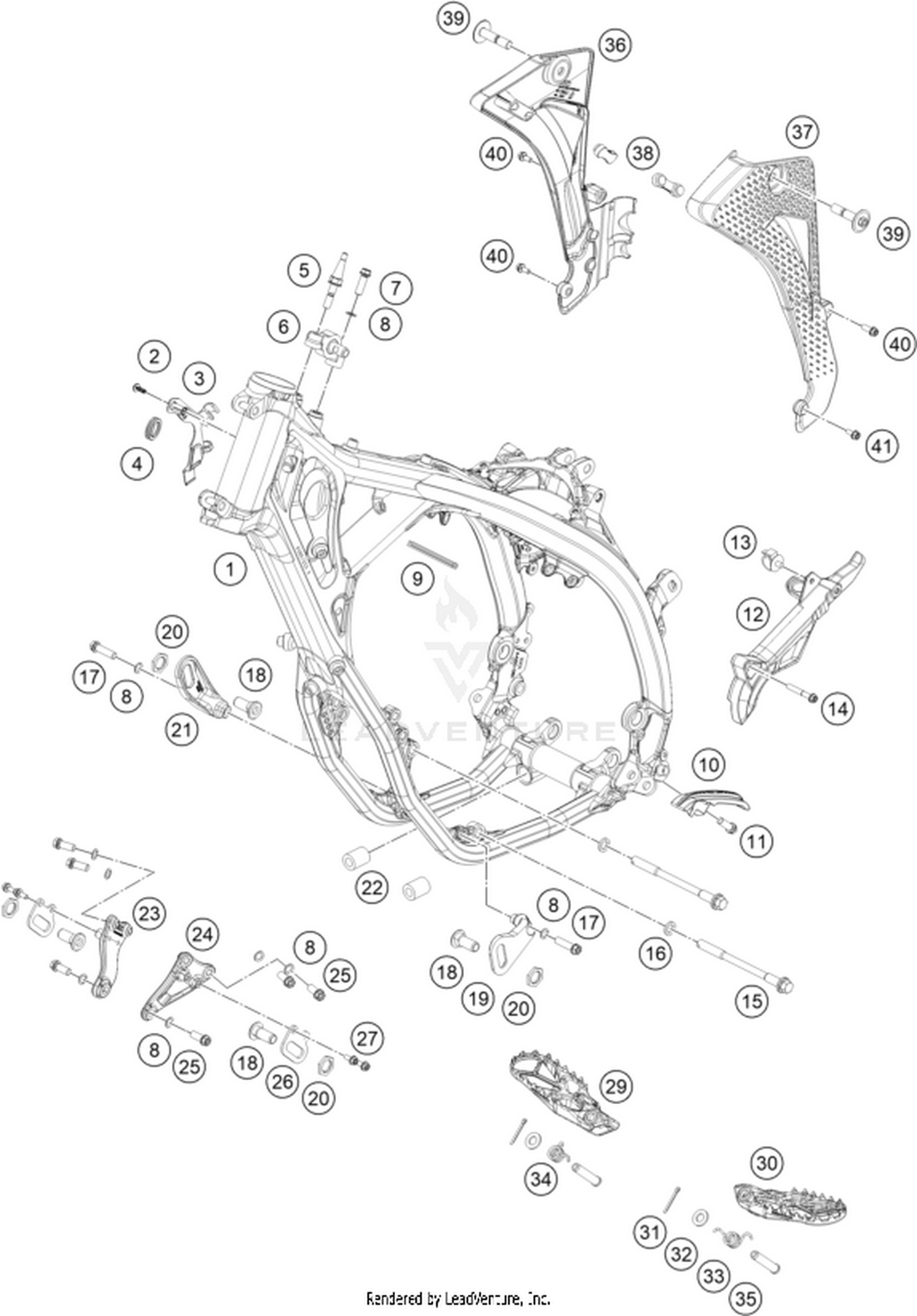

03 FRAME
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A58003101000EB | Replica frame Price: Call Us |
| 2 | 0081050141 | EJOT PT screw K50x14 Price: Call Us |
| 3 | A46003099020 | Cable bracket/throttle cable g Price: Call Us |
| 4 | 76712069090 | Rubber grommet d24 Price: Call Us |
| 5 | A58002025000 | Steering damper post mount Price: Call Us |
| 6 | A58003043000 | Fuel tank bracket top cmpl. Price: Call Us |
| 7 | 0025080256S | HH COLLAR SCREW M8X25 TX40 Price: Call Us |
| 8 | 36003014000 | LOCK WASHER 8MM Price: Call Us |
| 9 | 76003095074 | Edge protection 9.5x6.5x74 Price: Call Us |
| 10 | A46003053000 | Chain slider below Price: Call Us |
| 11 | 0025080206 | HH collar screw M8x20 Price: Call Us |
| 12 | A58003196000 | Front sprocket cover Price: Call Us |
| 13 | 58111076000 | CABLE SUPPORT KHS NR.150-47610 Price: Call Us |
| 14 | 0025060406 | HH collar screw M6x40 TX30 Price: Call Us |
| 15 | 0000151013800 | Collar screw M10x138 WS=13 Price: Call Us |
| 16 | 50233041100 | PAIR OF WASHERS M10 NORDLOCK Price: Call Us |
| 17 | 0025080306S | HH COLLAR SCREW M8X30 TX40 Price: Call Us |
| 18 | 76407063000 | FIXING SCREW TANK Price: Call Us |
| 19 | A58003101093 | Front tank connection left Price: Call Us |
| 20 | 60512063050 | NUT F.TANK BRAKET REAR Price: Call Us |
| 21 | A58003101094 | Front tank connection right Price: Call Us |
| 22 | A58003005031 | Rubber grommet, engine brace Price: Call Us |
| 23 | A58003114000 | Engine brace right Price: Call Us |
| 24 | A58003113000 | Engine brace left Price: Call Us |
| 25 | 0025080206S | HH collar screw M8x20 TX40 SL Price: Call Us |
| 26 | A58003014010 | Retaining bracket front tank h Price: Call Us |
| 27 | 0025050126 | HH collar screw M5x12 TX30 Price: Call Us |
| 29 | A58003041000 | Footpeg right Price: Call Us |
| 30 | A58003040000 | Footpeg left Price: Call Us |
| 31 | 0094032250 | PIN DIN 0094-3.2X25 NIRO Price: Call Us |
| 33 | A46003044000 | Footrest spring left Price: Call Us |
| 34 | A46003045000 | Footrest spring right Price: Call Us |
| 35 | 54803044000 | PIN FOR FOOT PED 51.5X9.8 MM Price: Call Us |
| 36 | A58003093000 | Frame protection right Price: Call Us |
| 37 | A58003092000 | Frame protection left Price: Call Us |
| 39 | 00001410045U0 | Special screw M10 Price: Call Us |
| 40 | 0025060166 | HH collar screw M6x16 TX30 Price: Call Us |
