Parts Catalog

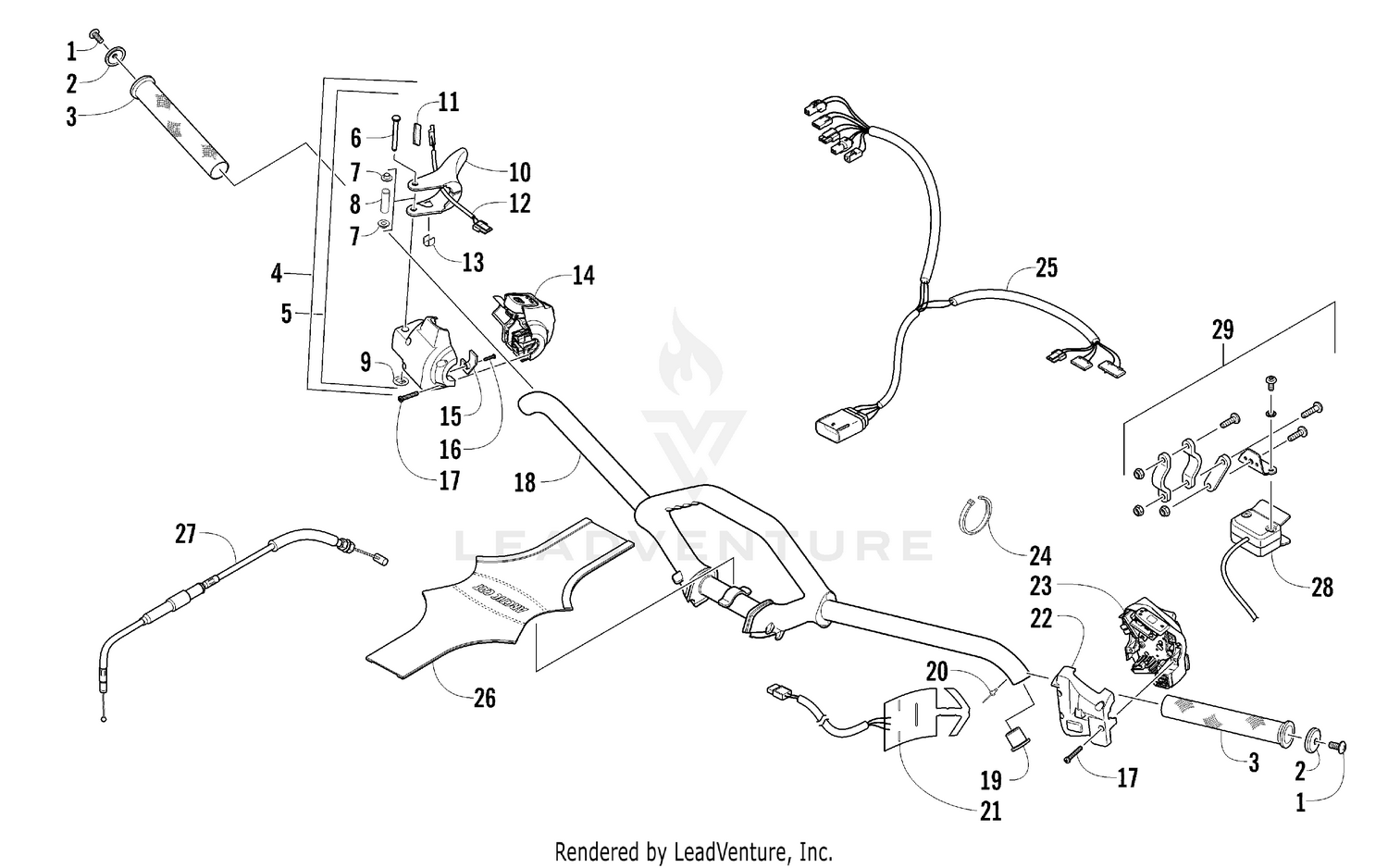

HANDLEBAR AND CONTROLS [97574]

Parts (24)

Ref	Part Number	Description
1	1623-618	Screw, Self-Tapping Price: $7.23
2	1623-754	Washer, Backing Price: $1.80
3	4606-945	Grip Price: $19.35
10	0609-795	Lever, Throttle Price: $49.95
11	0617-248	Pad, Insulator Price: $2.09
12	0609-827	Element, Thumbwarmer Price: $77.95
13	0609-595	Clip, Retaining Price: $2.66
14	0609-884	Control, Throttle - Front Price: $98.95
15	0609-792	Cover, Connector Price: $2.05
16	0609-793	Screw, Machine Price: $1.29
17	0609-791	Screw, Self-Tapping Price: $0.24
19	0605-945	Insert, Handlebar Price: $3.75
20	8060-682	Rivet Price: $0.24
21	0609-828	Element, Handwarmer - Right Price: $91.95
21	0609-829	Element, Handwarmer - Left Price: $91.95
22	0609-883	Control, Dimmer - Rear Price: $14.49
23	0609-929	Control, Dimmer - Front Price: $100.95
24	0123-788	Tie, Cable - 8 in Price: $0.23
24	0123-811	Tie, Cable - 4 in. Price: $0.35
24	0123-903	Tie, Cable Price: $0.59
25	1686-653	Harness, Handlebar Price: $128.95
26	1705-389	Wrap, Handlebar Price: $50.95
27	0687-215	Cable, Throttle Price: $119.95
28	0641-249	SWITCH ASSY,CONTROL-WINCH(5639-340) Price: $72.95
