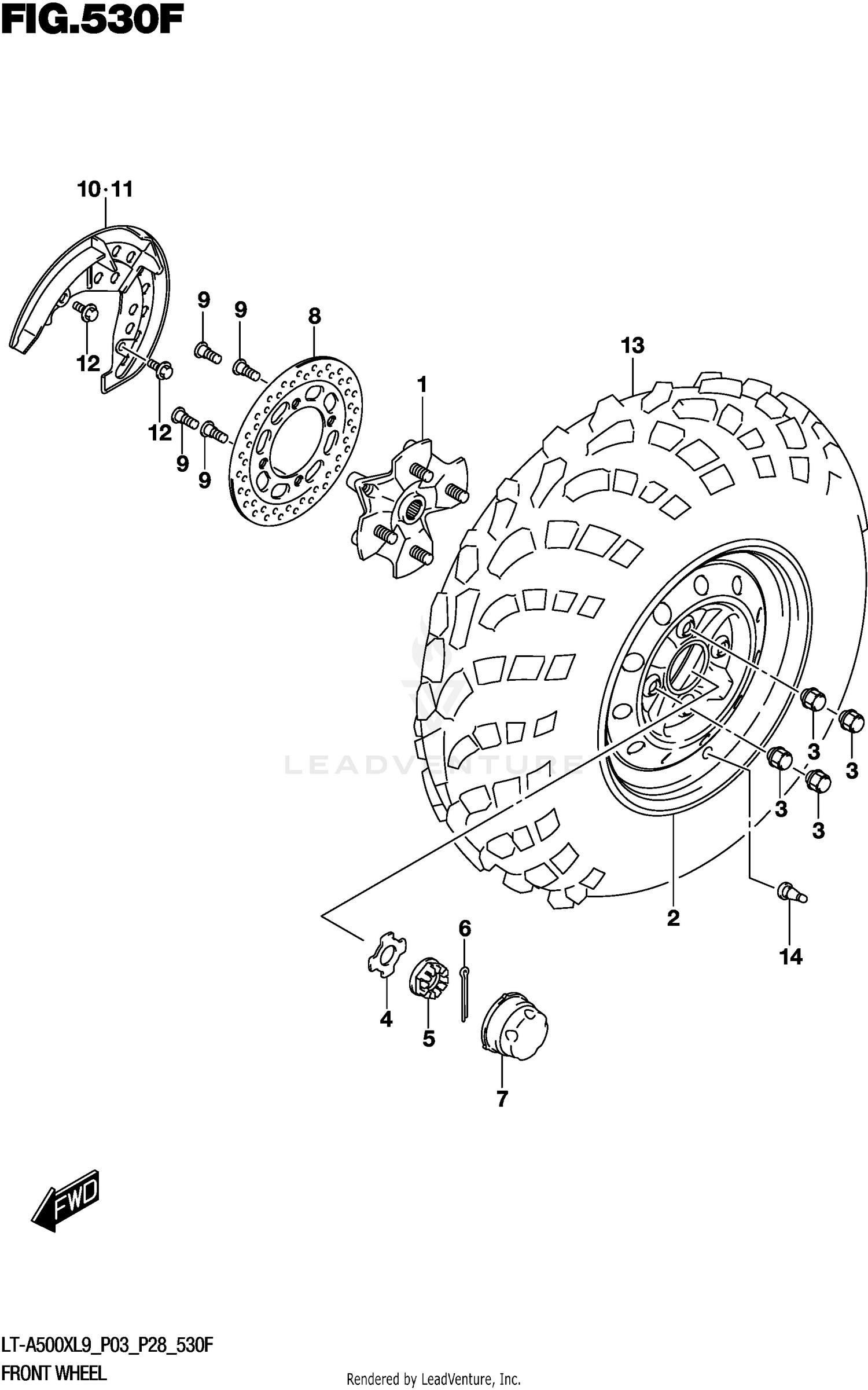

FRONT WHEEL (LT-A500XPL9 P33)
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 54110-31G10 | HUB,FRONT WHEEL This part replaces 54110-31G00. Price: $146.92 |
| 2 | 55310-34K10-291 | FRONT WHEEL (12X6.0AT,BLACK) Price: $267.94 |
| 3 | 09140-10021 | NUT Price: $2.45 |
| 4 | 64723-09F00 | WASHER,HUB Price: $14.43 |
| 5 | 09141-18010 | NUT Price: $12.49 |
| 6 | 04111-4035A | PIN Price: $1.65 |
| 7 | 54725-09F01 | CAP,WHEEL CENTER Price: $12.30 |
| 8 | 59211-31G20 | DISC,FRONT BRAKE Price: $44.60 |
| 9 | 09106-08160 | BOLT (8X21) Price: $4.35 |
| 10 | 59231-31G11 | COVER,FRONT DISC RH This part replaces 59231-31G10. Price: $23.45 |
| 11 | 59431-31G11 | COVER,FRONT DISC LH This part replaces 59431-31G10. Price: $23.03 |
| 12 | 09111-06085 | BOLT (6X12) Price: $5.61 |
