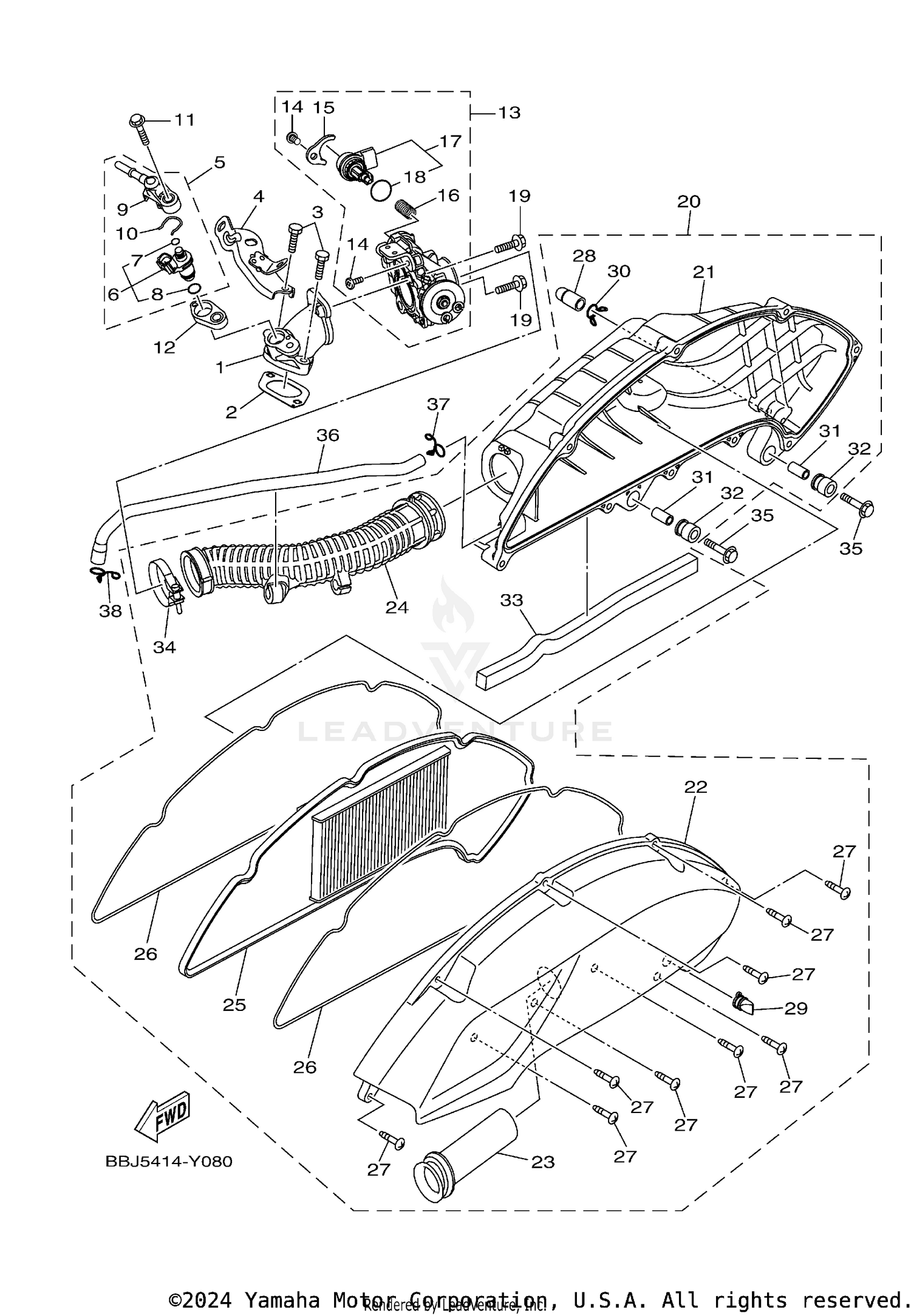

INTAKE
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B6H-E3585-00-00 | MANIFOLD Price: $25.99 |
| 2 | B6H-E4199-00-00 | GASKET Price: $2.35 |
| 3 | 91332-06025-00 | BOLT Price: $1.40 |
| 4 | B8R-E4146-00-00 | PLATE Price: $5.49 |
| 5 | B8R-E3770-00-00 | INJECTOR ASSY Price: $72.99 |
| 7 | 54P-E4147-00-00 | O-RING Price: $5.49 |
| 8 | 5CA-E4147-00-00 | O-RING Price: $6.99 |
| 9 | 54P-E3938-00-00 | PIPE Price: $11.49 |
| 10 | 54P-E4137-00-00 | CLIP Price: $4.95 |
| 11 | 95D32-06030-00 | BOLT, FLANGE DEEP Price: $0.35 |
| 12 | 2DP-E3556-00-00 | GASKET, MANIFOLD Price: $4.40 |
| 13 | BJC-E3750-01-00 | THROTTLE BODY ASSY Price: $173.99 |
| 14 | 98517-06012-00 | SCREW,PAN This part replaces 98502-06012-00. Price: $4.10 |
| 15 | 54P-E4243-00-00 | PLATE Price: $7.99 |
| 17 | B63-H5801-01-00 | STEPPING MOTOR Price: $80.99 |
| 18 | 54P-E416A-00-00 | O-RING Price: $7.49 |
| 19 | 90110-06846-00 | BOLT, HEXAGON SOCKET HEAD Price: $1.80 |
| 20 | B8R-E4400-20-00 | AIR CLEANER ASSY Price: $152.99 |
| 25 | B6H-E4451-00-00 | ELEMENT, AIR CLEAN Price: $29.99 |
| 26 | B6H-E4452-10-00 | SEAL Price: $3.05 |
| 27 | 97707-50025-00 | SCREW, TAPPING Price: $9.49 |
| 28 | 5TL-E443E-00-00 | PIPE, DRAIN (MIO AL1 Price: $1.10 |
| 30 | 90467-12809-00 | CLIP Price: $1.75 |
| 31 | B74-E4449-00-00 | COLLAR Price: $1.25 |
| 34 | 90450-43805-00 | HOSE CLAMP ASSY Price: $4.90 |
| 35 | 95D32-06030-00 | BOLT, FLANGE DEEP Price: $0.35 |
| 36 | B8R-E1166-00-00 | PIPE, BREATHER 1 Price: $3.95 |
| 37 | 90467-11825-00 | CLIP Price: $0.80 |
