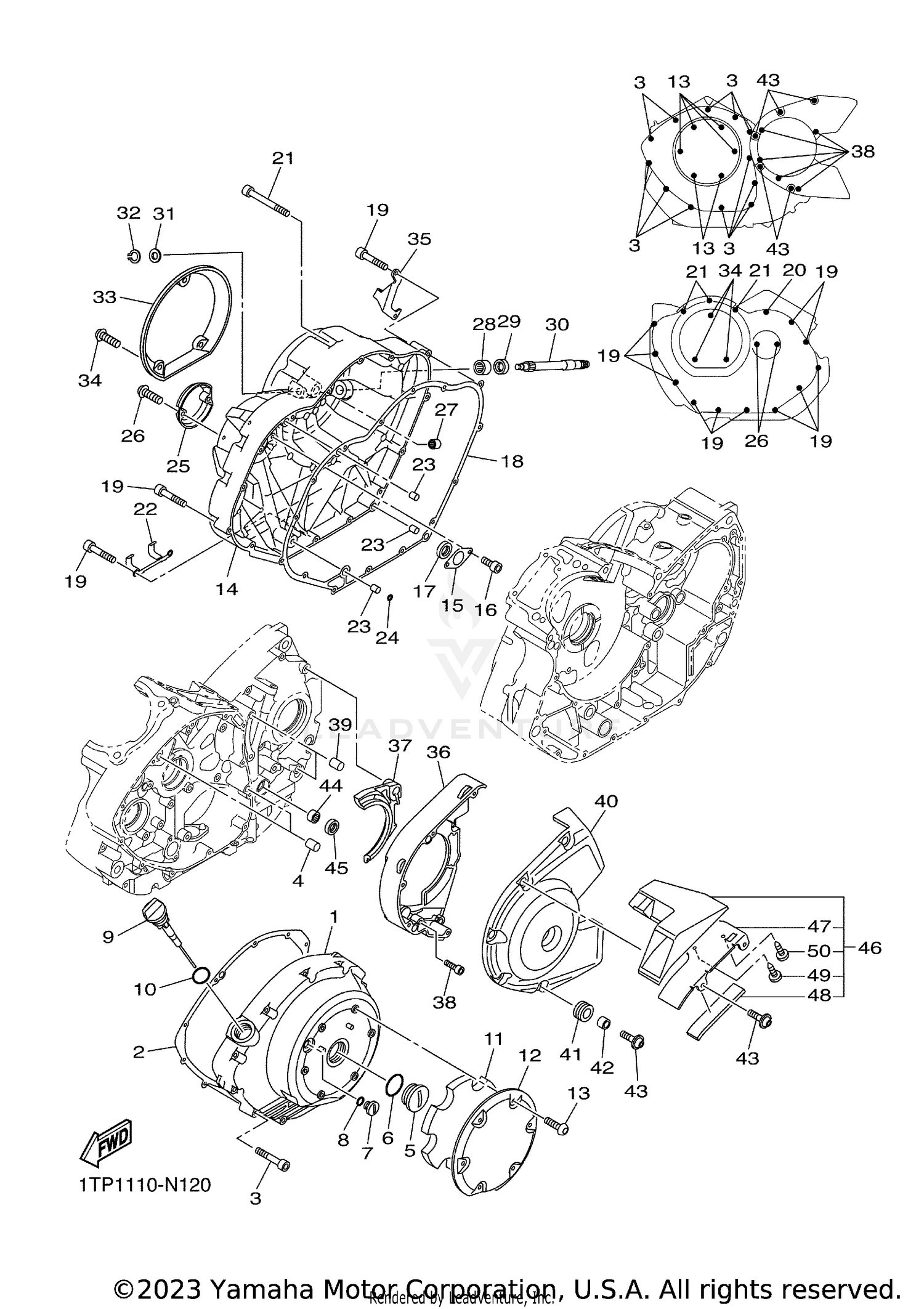

| Ref | Part Number | Description |
|---|
| 2 |
3D8-15451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $25.99 |
| 3 |
91314-06040-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06086-00. Price: $9.49 |
| 4 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 5 |
90340-36078-00 |
PLUG, STRAIGHT SCREW Price: $16.49 |
| 6 |
93210-35804-00 |
O-RING This part replaces 93210-357A3-00. Price: $0.60 |
| 7 |
90340-14117-00 |
PLUG, STRAIGHT SCREW Price: $16.49 |
| 8 |
93210-14369-00 |
O-RING Price: $8.49 |
| 9 |
5S7-15362-10-00 |
PLUG, OIL LEVEL Price: $33.99 |
| 10 |
93210-27778-00 |
O-RING This part replaces 93210-27370-00. Price: $9.49 |
| 11 |
5S7-1542A-00-00 |
DAMPER 1 Price: $22.99 |
| 12 |
1TP-15492-00-00 |
COVER Price: $74.99 |
| 13 |
92014-06014-00 |
BOLT, BUTTON HEAD Price: $4.05 |
| 15 |
3D8-15388-00-00 |
PLATE, BEARING COVER Price: $2.30 |
| 16 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 17 |
93101-14102-00 |
OIL SEAL Price: $15.49 |
| 19 |
91314-06040-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06086-00. Price: $9.49 |
| 20 |
90110-06299-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06311-00. Price: $8.49 |
| 21 |
91314-06065-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06334-00. Price: $9.49 |
| 22 |
1TP-81845-00-00 |
PLATE Price: $10.49 |
| 23 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 24 |
93210-07135-00 |
O-RING Price: $6.99 |
| 25 |
1TP-15423-00-00 |
COVER 2 Price: $46.99 |
| 26 |
92014-06014-00 |
BOLT, BUTTON HEAD Price: $4.05 |
| 27 |
93317-11096-00 |
BEARING Price: $25.99 |
| 28 |
93315-31502-00 |
BEARING Price: $39.99 |
| 29 |
93102-15212-00 |
OIL SEAL Price: $10.49 |
| 30 |
3D8-16382-00-00 |
AXLE, PUSH LEVER Price: $87.99 |
| 31 |
92990-08600-00 |
WASHER, PLATE This part replaces 92902-08600-00. Price: $2.70 |
| 32 |
99080-07600-00 |
CIRCLIP This part replaces 99002-07600-00. Price: $3.55 |
| 33 |
1TP-15415-01-00 |
COVER, 1 Price: $71.99 |
| 34 |
92014-06014-00 |
BOLT, BUTTON HEAD Price: $4.05 |
| 35 |
3D8-15441-00-00 |
HOLDER, CLUTCH CABLE Price: $18.49 |
| 36 |
3D8-1541A-01-00 |
STAY, CRANKCASE COVER 1 Price: $203.99 |
| 37 |
3D8-15337-02-00 |
DAMPER 4 Price: $16.49 |
| 38 |
91317-08035-00 |
BOLT This part replaces 91312-08035-00. Price: $8.49 |
| 39 |
99590-10114-00 |
PIN, DOWEL Price: $5.55 |
| 40 |
1TP-15426-00-00 |
COVER, OIL PUMP 2 Price: $99.99 |
| 41 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 42 |
90387-06286-00 |
COLLAR Price: $2.70 |
| 43 |
90149-06302-00 |
SCREW Price: $6.49 |
| 44 |
93317-11287-00 |
BEARING Price: $25.99 |
| 45 |
93102-12106-00 |
OIL SEAL (SD 12-22-5 HS) Price: $12.49 |
| 46 |
1TP-15470-00-00 |
AIR DUCT ASSY Price: $64.99 |
| 47 |
1TP-15113-00-00 |
PLATE Price: $22.99 |
| 48 |
5S7-15316-00-00 |
DAMPER 1 Price: $13.49 |
| 49 |
97707-40014-00 |
SCREW, TAPPING This part replaces 97702-40014-00. Price: $8.49 |
