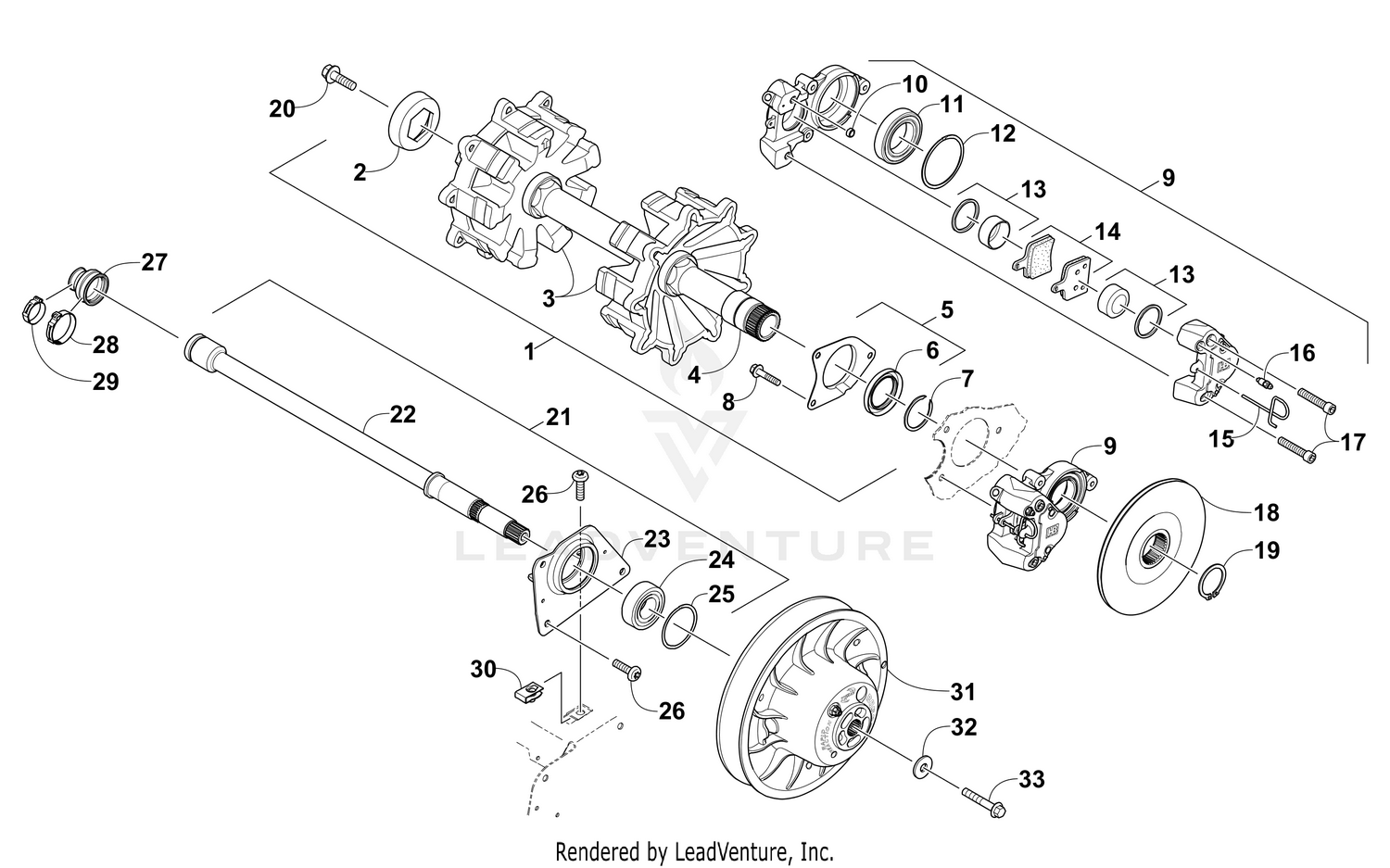

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [102915]

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [102915]

Parts (27)

RefPart NumberDescription
2 1602-984 Seal Price: $15.71
3 2602-912 Sprocket, Drive Price: $67.99
4 1702-380 Driveshaft Price: $365.95
6 1602-344 Seal Price: $6.95
7 2602-233 Ring, Retaining Price: $2.42
8 8408-831 Screw, Cap Price: $1.08
10 2602-411 Seal Price: $5.59
11 2602-198 Bearing Price: $26.95
12 2602-280 Ring, Retaining Price: $3.88
13 2602-410 Piston Set Price: $82.95
15 2602-409 Pin, Retaining Price: $6.06
16 2602-408 Fitting, Bleed Price: $7.23
17 2602-412 Screw, Cap Price: $5.15
18 2602-249 Disc, Brake Price: $246.95
19 2602-629 Ring, Retaining Price: $2.91
20 8413-041 Screw, Cap Price: $3.38
22 2602-781 Shaft, Driven Price: $340.95
23 2602-657 Bearing Support, Driven Shaft Price: $71.95
24 2602-524 Bearing Price: $14.49
25 2602-236 Ring, Retaining Price: $3.38
26 8476-826 Screw, Machine Price: $6.06
27 2602-361 Boot, Coupler - Driven Shaft Price: $2.49
28 0423-393 CLAMP,42mm DIA - BOOT Price: $4.57
29 0423-411 CLAMP,30MM-BOOT Price: $4.42
30 1623-640 Clip, U-Nut Price: $3.63
31 0726-375 Clutch, Driven - Assembly Price: $826.95
32 2623-120 Washer, Belleville Price: $5.44
