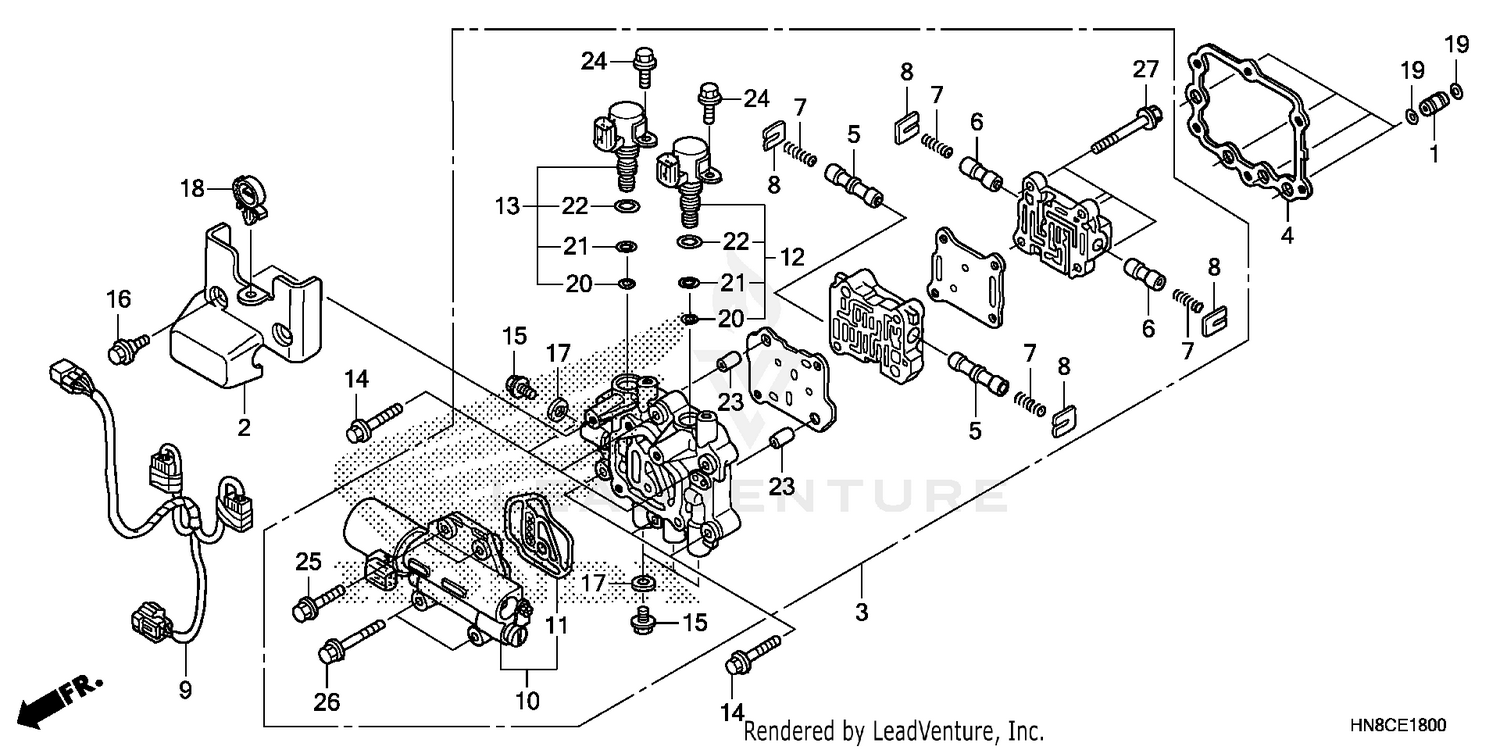

| Ref | Part Number | Description |
|---|
| 1 |
11334-HN8-010 |
PIN, OIL GUIDE (10MM) Price: $11.29 |
| 2 |
11355-HN8-000 |
COVER, SOLENOID Price: $21.75 |
| 3 |
27100-HN8-003 |
BODY ASSY., MAIN VALVE Price: $957.16 |
| 4 |
27135-HN8-000 |
GASKET, OIL CONTROL COVER Price: $11.25 |
| 5 |
27211-HN8-003 |
VALVE, SHIFT Price: $13.41 |
| 6 |
27221-HN8-003 |
VALVE, ORIFICE CONTROL Price: $11.72 |
| 7 |
27231-HN8-003 |
SPRING, VALVE Price: $7.40 |
| 8 |
27263-PX3-000 |
SEAT, VALVE SPRING Price: $4.68 |
| 9 |
32102-HN8-F40 |
SUB-WIRE, SOLENOID Price: $43.67 |
| 10 |
38610-HN8-003 |
SOLENOID ASSY., LINEAR Price: $315.71 |
| 11 |
38615-HN8-003 |
GASKET, BASE Price: $26.89 |
| 12 |
38620-HN8-003 |
SOLENOID ASSY. A Price: $114.96 |
| 13 |
38630-HN8-003 |
SOLENOID ASSY. B Price: $114.96 |
| 14 |
90004-GHB-690 |
BOLT, FLANGE (6X32) (NSHF) Price: $4.84 |
| 15 |
90024-612-000 |
BOLT, SEALING (8MM) Price: $5.97 |
| 16 |
90111-187-000 |
BOLT, FLANGE (6MM) Price: $7.02 |
| 17 |
90471-580-000 |
WASHER (8MM) Price: $3.40 |
| 18 |
90684-ZA0-601 |
CLIP, WIRE HARNESS Price: $3.67 |
| 19 |
91301-473-003 |
O-RING (7X1.7) Price: $3.11 |
| 20 |
91301-P6H-003 |
O-RING (7.6X1.9) (KEIHIN) Price: $3.50 |
| 21 |
91302-P7W-A00 |
O-RING (9.6X1.9) This part replaces 91302-P6H-003. Price: $3.05 |
| 22 |
91303-P6H-003 |
O-RING (11.7X1.9) (KEIHIN) Price: $3.50 |
| 23 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 24 |
95701-06014-08 |
BOLT, FLANGE (6X14) Price: $1.70 |
| 25 |
95701-06025-08 |
BOLT, FLANGE (6X25) BOLT, FLANGE (6X16) Price: $1.88 |
| 26 |
95701-06035-08 |
BOLT, FLANGE (6X35) Price: $1.82 |
