Parts Catalog

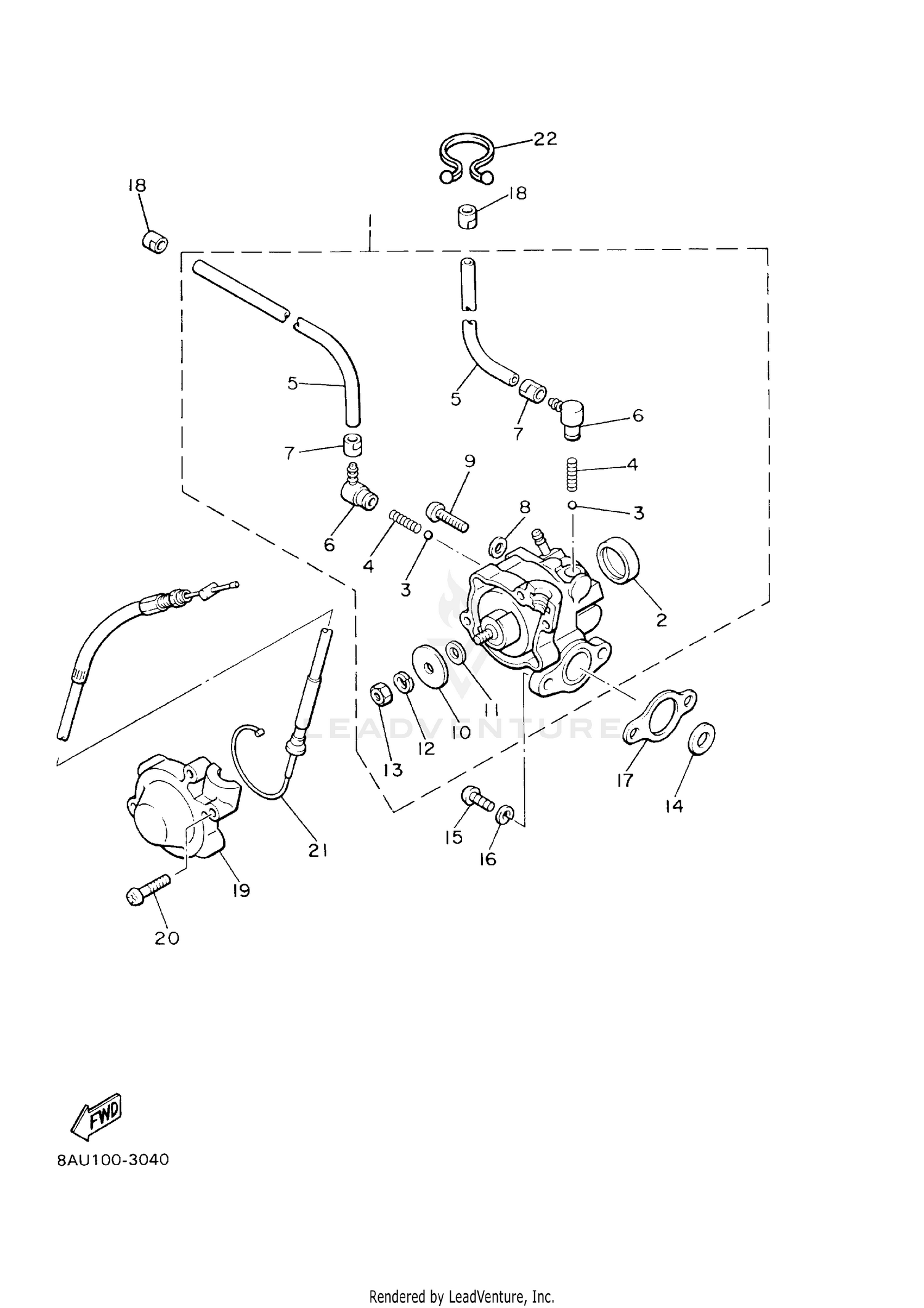

OIL PUMP [106330]

Parts (20)

Ref	Part Number	Description
2	3021-402	Plug Price: $5.95
3	3021-584	Ball Price: $1.00
4	3021-494	Spring, Compression Price: $4.37
5	3021-521	Tube, Flexible Vinyl Price: $11.18
6	3020-659	Nozzle Price: $19.04
7	3021-487	Clip Price: $2.99
8	3021-447	Gasket Price: $1.78
9	3021-677	Screw, Bind Price: $0.59
10	3020-638	Plate, Adjusting Price: $15.67
11	3020-637	Shim, Plunger Price: $4.48
12	3021-530	Washer, Spring Price: $1.78
13	3021-595	Nut Price: $0.44
14	3021-332	Washer, Plate Price: $5.04
15	3021-673	Screw, Pan Head Price: $0.99
16	3021-540	Washer, Spring Price: $2.34
17	3021-258	Gasket, Pump Case Price: $1.79
18	3021-487	Clip Price: $2.99
19	3020-850	Cover,Adjust Pulley Price: $29.95
20	3021-672	Screw, Pan Head Price: $2.34
21	3021-140	Pump Cable Assembly Price: $43.95
