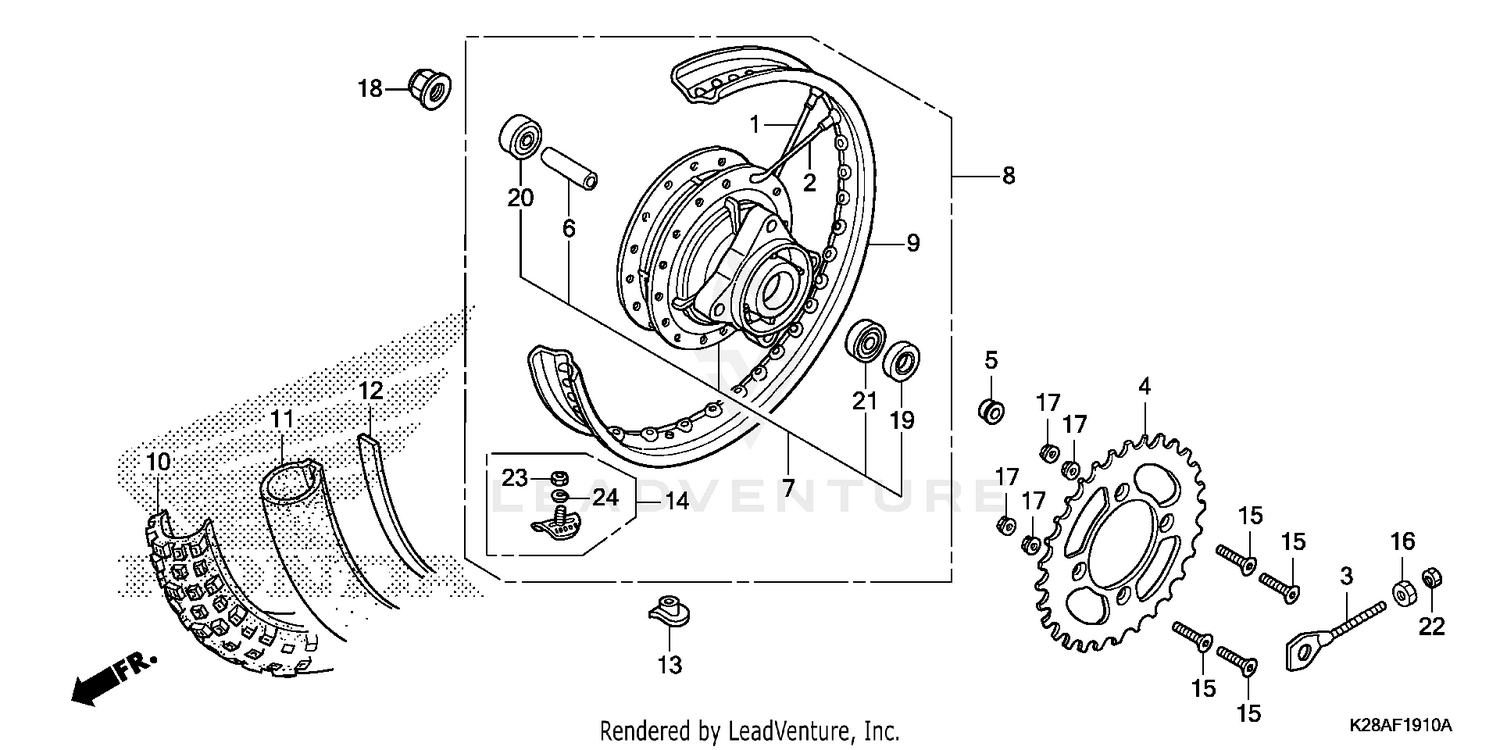

| Ref | Part Number | Description |
|---|
| 1 |
06420-K28-920 |
SPOKE SET A, FR. (B10X146.5) (INSIDE) Price: $4.47 |
| 2 |
06421-K28-920 |
SPOKE SET B, FR. (B10X146.0) (OUTSIDE) Price: $4.47 |
| 3 |
40543-K28-910 |
ADJUSTER, CHAIN Price: $3.85 |
| 4 |
41201-K28-920 |
SPROCKET, FINAL DRIVEN (49T) Price: $64.44 |
| 5 |
42311-K28-910 |
COLLAR, RR. WHEEL SIDE Price: $15.46 |
| 6 |
42620-KYK-910 |
COLLAR, RR. AXLE DISTANCE Price: $12.65 |
| 7 |
42635-K28-910 |
HUB SUB-ASSY., RR. Price: $265.80 |
| 8 |
42650-K28-306 |
WHEEL SUB-ASSY., RR. (COO) Price: $400.53 |
| 9 |
42701-K28-920 |
RIM, RR. WHEEL (16X1.85) Price: $76.42 |
| 10 |
42711-K28-922 |
TIRE, RR. This part replaces 42711-K28-921. Price: $118.08 |
| 11 |
42712-K28-921 |
TUBE, TIRE (90/100-16) (CST) Price: $44.73 |
| 12 |
42713-K28-921 |
FLAP, TIRE (CST) Price: $5.29 |
| 13 |
42714-KA3-710 |
CAP, VALVE Price: $12.67 |
| 14 |
42715-KA2-680 |
STOPPER, BEAD (1.85) STOPPER, BEAD (1.85B) Price: $39.11 |
| 15 |
90125-KA4-000 |
SCREW, FLAT (8X31) Price: $3.87 |
| 16 |
90302-KBP-900 |
NUT, SPECIAL (6MM) Price: $2.33 |
| 17 |
90303-K28-911 |
NUT, FLANGE SPECIAL (8MM) Price: $5.20 |
| 18 |
90306-KYA-601 |
NUT, FLANGE (12MM) (PT) Price: $3.45 |
| 19 |
90755-GC4-003 |
DUST SEAL (21X37X5.5) (ARAI) Price: $6.35 |
| 20 |
91051-K28-911 |
BEARING, RADIAL BALL (6201UU) Price: $20.44 |
| 21 |
91052-KWW-C51 |
BEARING, RADIAL BALL (6301UU) Price: $21.33 |
| 22 |
94001-06200-0S |
NUT, HEX. (6MM) This part replaces 94001-06000-0S. Price: $1.37 |
| 23 |
94001-08000-0S |
NUT, HEX. (8MM) Price: $1.37 |
