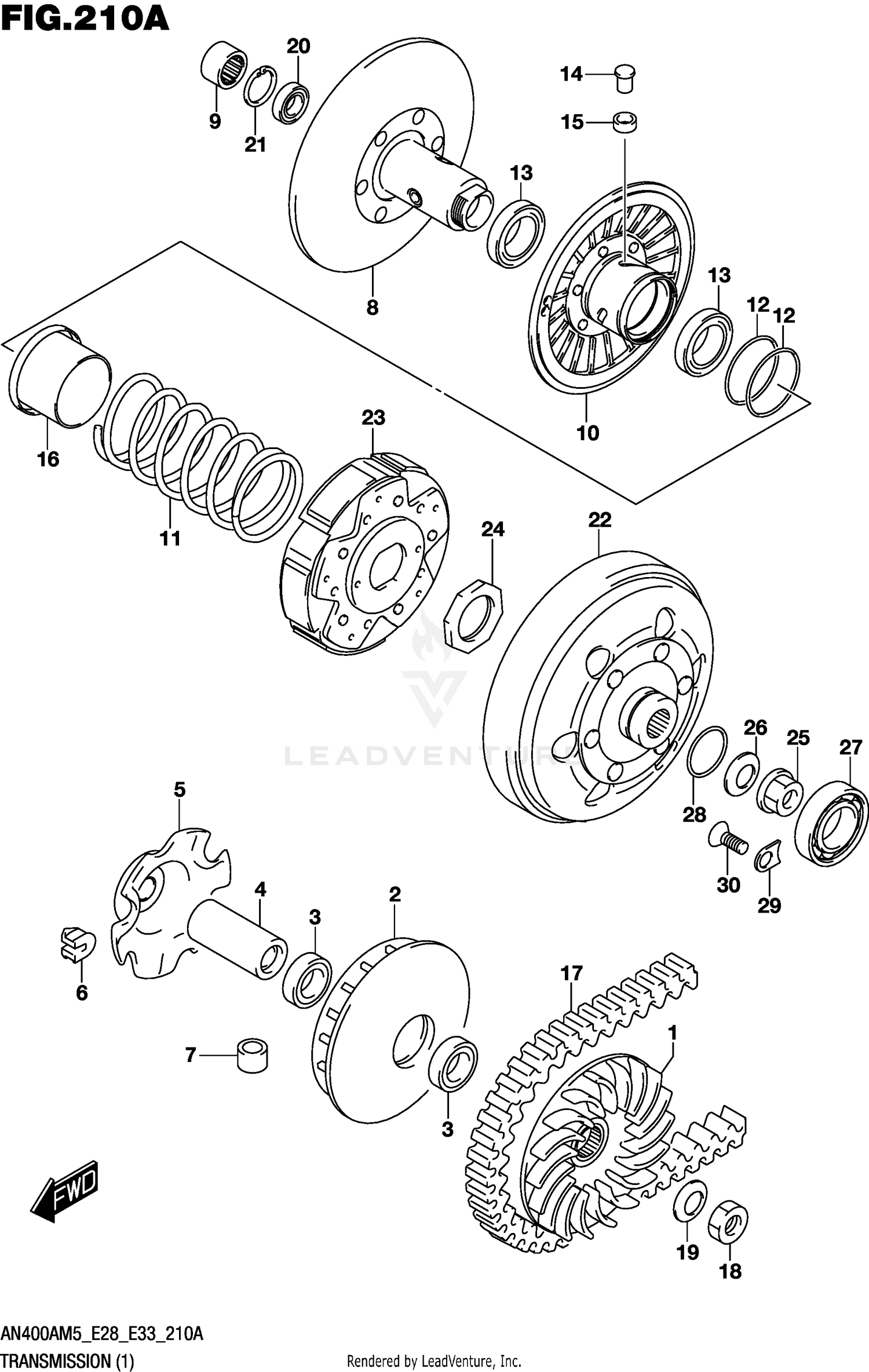

| Ref | Part Number | Description |
|---|
| 1 |
21110-05H00 |
FACE,FIXED DRIVE Price: $122.76 |
| 2 |
21120-05H00 |
FACE,MOVABLE DRIVE Price: $138.68 |
| 3 |
21124-15F00 |
SEAL,MOVABLE DRIVE FACE OIL Price: $13.36 |
| 4 |
21125-05H00 |
SPACER,MOVABLE DRIVE Price: $59.65 |
| 5 |
21431-05H00 |
PLATE,MOVABLE DRIVE Price: $56.82 |
| 6 |
21481-14F00 |
DAMPER,MOVABLE DRIVE PLATE Price: $8.92 |
| 7 |
21650-15F40 |
ROLLER,MOVABLE DRIVEN Price: $18.27 |
| 8 |
21210-05H00 |
FACE,FIXED DRIVEN Price: $288.39 |
| 9 |
21214-15F01 |
BEARING,FIXED DRIVEN RH Price: $33.00 |
| 10 |
21240-05H10 |
FACE,MOVABLE DRIVEN Price: $268.24 |
| 11 |
21243-15F40 |
SPRING,MOVABLE DRIVEN Price: $44.71 |
| 12 |
21245-15F00 |
O-RING Price: $6.38 |
| 13 |
21247-31G00 |
SEAL,MOVABLE DRIVEN Price: $15.42 |
| 14 |
21248-15F01 |
PIN,MOVABLE DRIVEN Price: $6.05 |
| 15 |
21249-15F00 |
SPACER,MOVABLE DRIVEN PIN Price: $6.83 |
| 16 |
21471-15F20 |
SHEET,MOVABLE DRIVEN Price: $18.68 |
| 17 |
27601-05H10 |
V BELT, DRIVE Price: $189.06 |
| 18 |
09140-18501 |
NUT Price: $3.62 |
| 19 |
09164-18001 |
WASHER (18.3X31.5X1.8) Price: $4.01 |
| 20 |
08123-6904B |
BEARING Price: $24.60 |
| 21 |
08331-41379 |
CIRCLIP Price: $3.02 |
| 22 |
21220-05H30 |
HOUSING,CLUTCH Price: $359.16 |
| 23 |
21501-05H41 |
CLUTCH ASSY,SHOE Price: $301.11 |
| 24 |
21518-15F00 |
NUT,SHOE CLUTCH Price: $11.83 |
| 25 |
09140-16002 |
NUT Price: $3.91 |
| 26 |
09164-16002 |
WASHER Price: $3.91 |
| 27 |
09262-35064 |
BEARING (35X62X14) Price: $74.80 |
| 28 |
09280-32008 |
O-RING (D:2,ID:31) Price: $11.51 |
| 29 |
24742-44B00 |
RETAINER Price: $5.21 |
