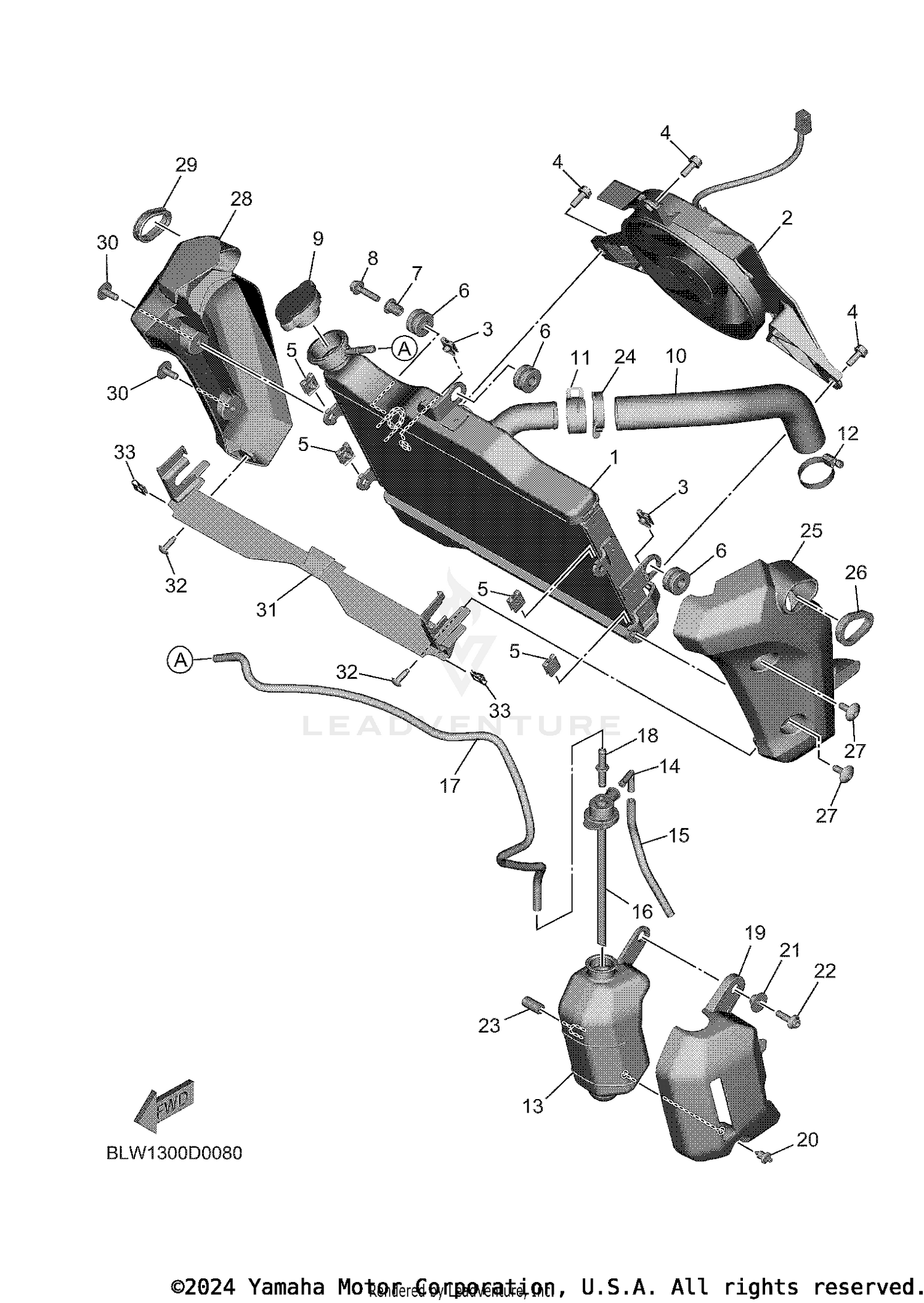

| Ref | Part Number | Description |
|---|
| 1 |
BLW-12461-00-00 |
RADIATOR COMP Price: $260.99 |
| 2 |
BEB-12405-00-00 |
BLOWER ASSY Price: $234.99 |
| 3 |
1WS-12671-00-00 |
NUT 1 Price: $3.75 |
| 4 |
2S3-12675-00-00 |
BOLT, BLOWER HOLDING Price: $7.49 |
| 5 |
1WS-12671-00-00 |
NUT 1 Price: $3.75 |
| 6 |
90480-15363-00 |
GROMMET Price: $9.49 |
| 7 |
90387-06263-00 |
COLLAR Price: $6.85 |
| 8 |
95D32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $1.15 |
| 9 |
5SL-12462-01-00 |
CAP, RADIATOR Price: $35.99 |
| 10 |
1WS-12578-00-00 |
HOSE 3 Price: $38.99 |
| 11 |
90467-290A0-00 |
CLIP Price: $18.49 |
| 12 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 13 |
BLW-21871-00-00 |
TANK, RECOVERY Price: $32.99 |
| 14 |
26H-21828-00-00 |
ELBOW Price: $30.99 |
| 15 |
BEB-21817-00-00 |
PIPE 2 Price: $2.95 |
| 16 |
3P6-21875-00-00 |
CAP Price: $10.49 |
| 17 |
BEB-21816-00-00 |
PIPE 1 Price: $8.49 |
| 18 |
4XY-14568-00-00 |
JOINT Price: $7.49 |
| 19 |
BLW-2172W-00-00 |
COVER Price: $12.49 |
| 20 |
90269-06008-00 |
RIVET Price: $9.49 |
| 21 |
90387-06024-00 |
COLLAR Price: $12.49 |
| 22 |
90110-06163-00 |
BOLT, HEXAGON SOCKET HEAD Price: $11.49 |
| 23 |
90445-10064-00 |
HOSE Price: $1.10 |
| 24 |
90464-07M40-00 |
CLAMP Price: $18.49 |
| 25 |
BLW-21731-00-00 |
COVER, SIDE 3 Price: $19.49 |
| 26 |
B7N-83321-00-00 |
DAMPER, FLASHER 1 Price: $4.65 |
| 27 |
90111-06191-00 |
BOLTHEX. SOCKET BUTTON Price: $1.35 |
| 28 |
BLW-21741-00-00 |
COVER, SIDE 4 Price: $19.49 |
| 29 |
B7N-83321-00-00 |
DAMPER, FLASHER 1 Price: $4.65 |
| 30 |
90111-06191-00 |
BOLTHEX. SOCKET BUTTON Price: $1.35 |
| 31 |
BLW-2172A-00-00 |
PANEL 1 Price: $13.99 |
| 32 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
