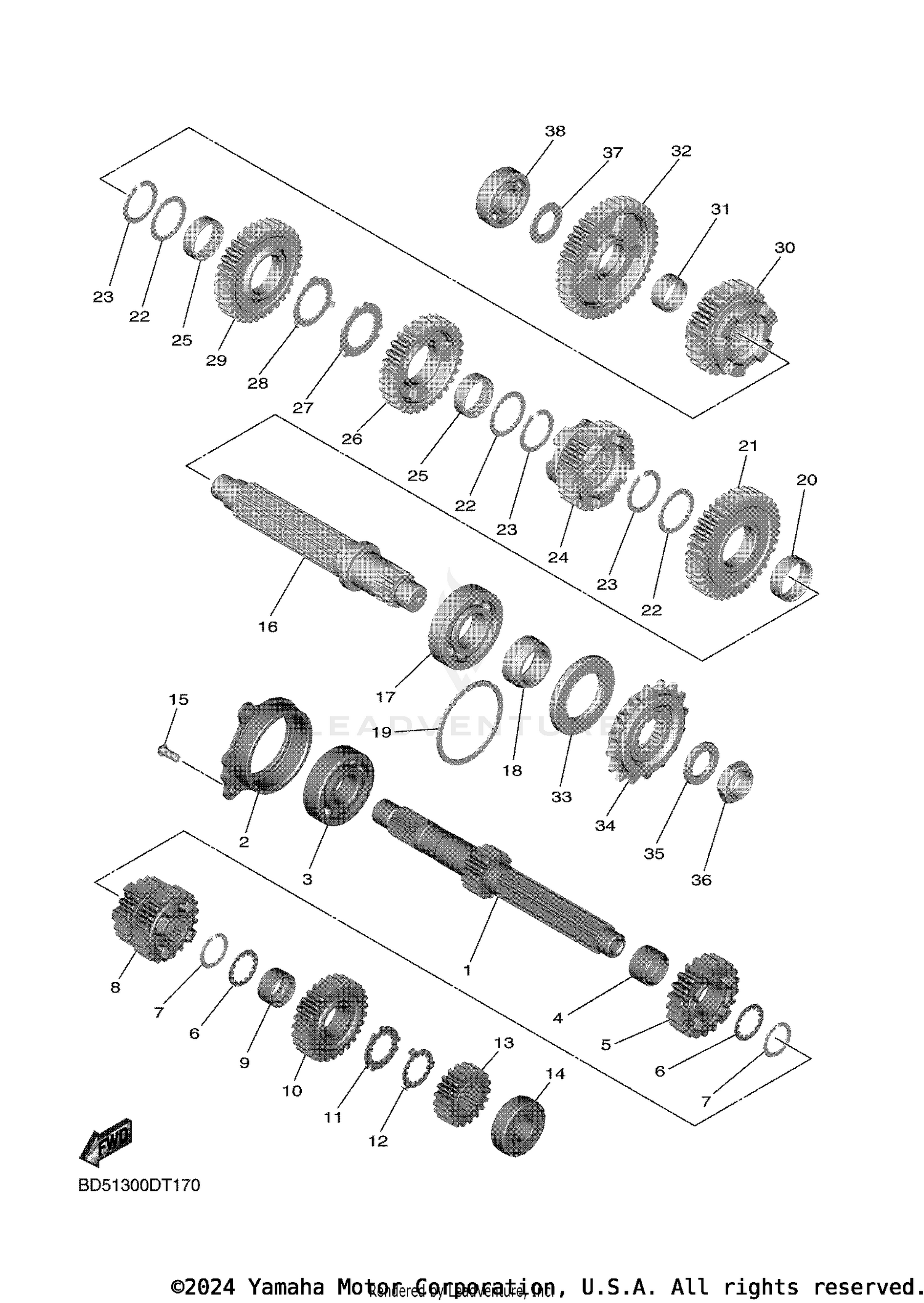

| Ref | Part Number | Description |
|---|
| 1 |
1RC-17411-00-00 |
AXLE, MAIN (15T) Price: $201.99 |
| 2 |
1RC-15163-00-00 |
HOUSING, BEARING 1 Price: $114.99 |
| 3 |
93306-30560-00 |
BEARING This part replaces 93306-30534-00. Price: $85.99 |
| 4 |
90387-25030-00 |
COLLAR Price: $16.49 |
| 5 |
BD5-17151-00-00 |
GEAR, 5TH PINION (21 Price: $72.99 |
| 6 |
90209-21332-00 |
WASHER Price: $8.49 |
| 7 |
93440-25186-00 |
CIRCLIP Price: $8.49 |
| 8 |
BD5-17131-00-00 |
GEAR, 3RD PINION (21 Price: $199.99 |
| 9 |
90387-21003-00 |
COLLAR Price: $32.99 |
| 10 |
BD5-17161-00-00 |
GEAR, 6TH PINION (27 Price: $91.99 |
| 11 |
90209-22352-00 |
WASHER Price: $22.99 |
| 12 |
90209-21351-00 |
WASHER Price: $13.49 |
| 13 |
BD5-17121-00-00 |
GEAR, 2ND PINION (19 Price: $63.99 |
| 14 |
93306-20464-00 |
BEARING Price: $45.99 |
| 15 |
90149-06081-00 |
SCREW This part replaces 90149-06082-00. Price: $9.49 |
| 16 |
1RC-17421-00-00 |
AXLE, DRIVE Price: $170.99 |
| 17 |
93306-20663-00 |
BEARING Price: $97.99 |
| 18 |
90387-30012-00 |
COLLAR Price: $32.99 |
| 19 |
93440-64199-00 |
CIRCLIP Price: $9.49 |
| 20 |
90387-31003-00 |
COLLAR Price: $23.99 |
| 21 |
BD5-17221-00-00 |
GEAR, 2ND WHEEL (38T Price: $107.99 |
| 22 |
90209-28008-00 |
WASHER Price: $9.49 |
| 23 |
93440-31187-00 |
CIRCLIP Price: $9.49 |
| 24 |
BD5-17261-00-00 |
GEAR, 6TH WHEEL (28T Price: $95.99 |
| 25 |
90387-28004-00 |
COLLAR Price: $36.99 |
| 26 |
BD5-17241-00-00 |
GEAR, 4TH WHEEL (29T Price: $78.99 |
| 27 |
90214-29002-00 |
WASHER, CLAW Price: $9.49 |
| 28 |
90214-28002-00 |
WASHER, CLAW Price: $9.49 |
| 29 |
BD5-17231-00-00 |
GEAR, 3RD WHEEL (34T Price: $96.99 |
| 30 |
BD5-17251-00-00 |
GEAR, 5TH WHEEL (25T Price: $117.99 |
| 31 |
90387-25008-00 |
COLLAR Price: $36.99 |
| 32 |
1RC-17211-00-00 |
GEAR, 1ST WHEEL (40T) Price: $106.99 |
| 33 |
93102-40030-00 |
OIL SEAL Price: $17.49 |
| 34 |
5PS-17460-00-00 |
SPROCKET, DRIVE (16T) Price: $39.99 |
| 35 |
90208-22002-00 |
WASHER, CONICAL SPRING Price: $22.99 |
| 36 |
90179-22018-00 |
NUT Price: $31.99 |
| 37 |
90201-20008-00 |
WASHER, PLATE Price: $9.49 |
