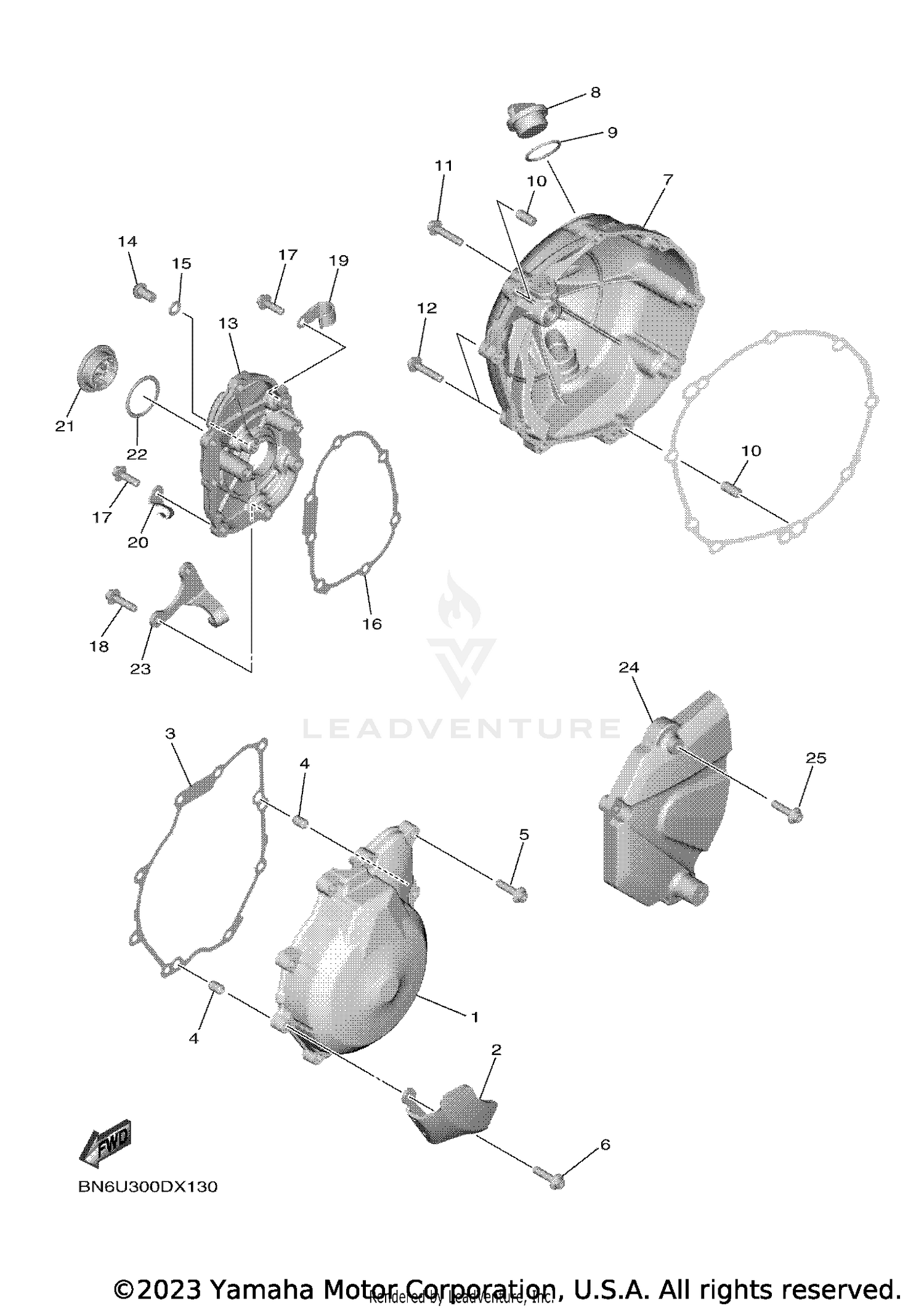

| Ref | Part Number | Description |
|---|
| 2 |
BN6-15490-00-00 |
COVER ASSY Price: $140.99 |
| 3 |
2C0-15451-01-00 |
GASKET, CRANKCASE COVER 1 Price: $19.99 |
| 4 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 5 |
90110-06387-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.65 |
| 6 |
90110-06387-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06390-00. Price: $4.65 |
| 8 |
BAT-15362-00-00 |
PLUG, OIL LEVEL This part replaces 3F9-15362-10-00. Price: $21.99 |
| 9 |
93210-27778-00 |
O-RING This part replaces 93210-27194-00. Price: $9.49 |
| 10 |
93608-17263-00 |
PIN, DOWEL Price: $3.15 |
| 11 |
90110-06388-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 12 |
90110-06388-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06389-00. Price: $6.49 |
| 14 |
92014-08014-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 15 |
90430-08143-00 |
GASKET Price: $3.35 |
| 16 |
2C0-15456-01-00 |
GASKET, OIL PUMP COVER 1 Price: $18.99 |
| 17 |
90110-06396-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.20 |
| 18 |
90110-06387-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.65 |
| 19 |
90465-08395-00 |
CLAMP Price: $16.49 |
| 20 |
2C0-21823-00-00 |
CLAMP, HOSE Price: $14.49 |
| 21 |
90340-32004-00 |
PLUG, STRAIGHT SCREW Price: $32.99 |
| 22 |
93210-32172-00 |
O-RING Price: $8.49 |
| 23 |
2C0-15441-00-00 |
HOLDER, CLUTCH CABLE Price: $28.99 |
| 24 |
2C0-15418-00-00 |
COVER, CHAIN CASE Price: $33.99 |
