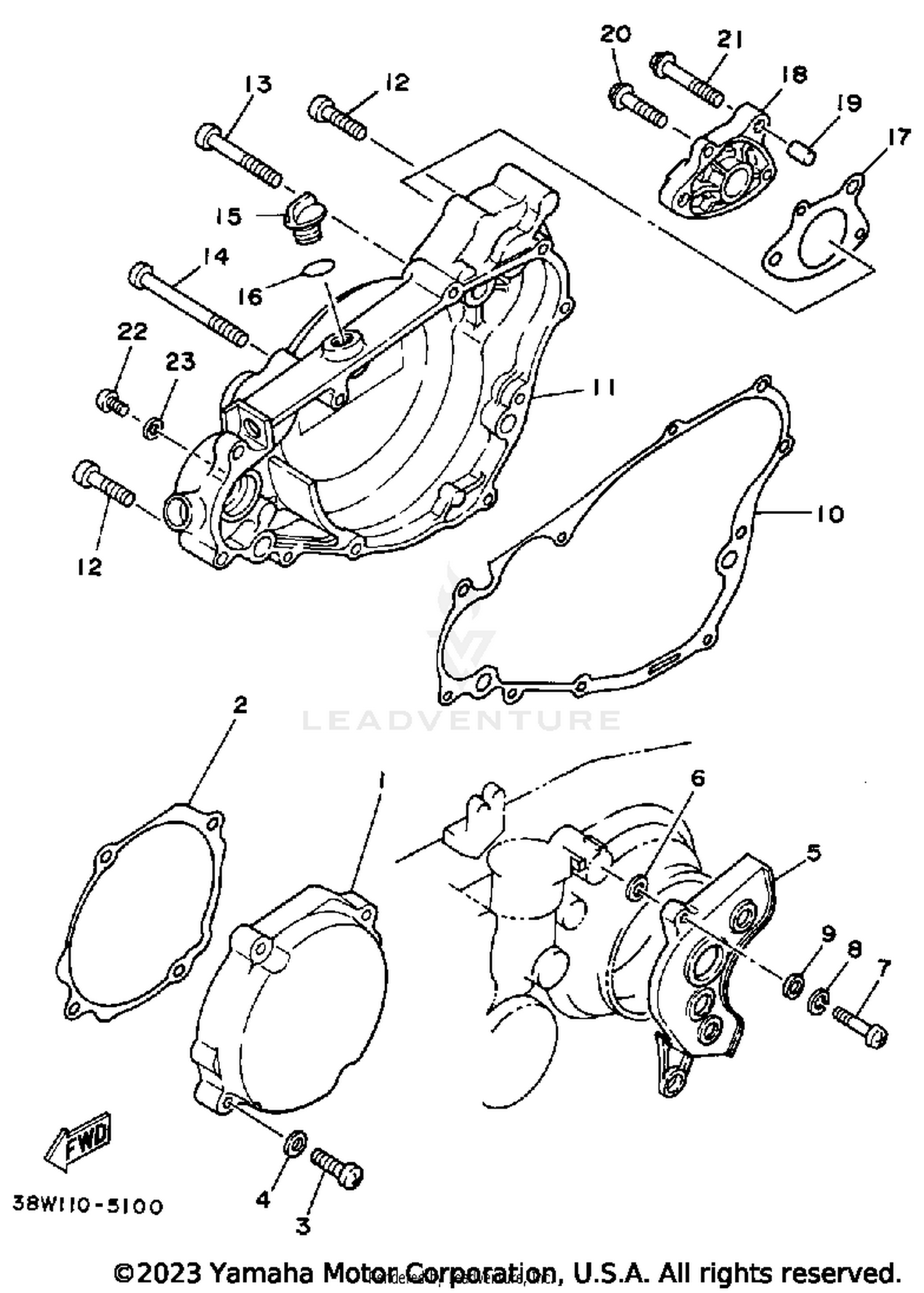

| Ref | Part Number | Description |
|---|
| 1 |
38W-15411-00-00 |
COVER, CRANKCASE L Price: $24.25 |
| 2 |
38W-15451-10-00 |
GASKET, GAS COVER This part replaces 38W-15451-00-00. Price: $15.49 |
| 3 |
98507-06035-00 |
SCREW, PAN HEAD This part replaces 98506-06035-00. Price: $9.49 |
| 4 |
92907-06600-00 |
WASHER, PLATE This part replaces 92906-06600-00. Price: $1.00 |
| 5 |
23X-15421-00-00 |
COVER, CRANKCASE 2 Price: $49.99 |
| 6 |
90201-062J7-00 |
WASHER, PLATE Price: $4.40 |
| 7 |
98517-06030-00 |
SCREW, PAN HEAD This part replaces 98516-06030-00. Price: $3.35 |
| 8 |
92907-06100-00 |
WASHER, SPRING This part replaces 92906-06100-00. Price: $1.30 |
| 9 |
92907-06600-00 |
WASHER, PLATE This part replaces 92906-06600-00. Price: $1.00 |
| 10 |
5X5-15462-01-00 |
GASKET,CRCS COVER3 This part replaces 5X5-15462-00-00. Price: $38.99 |
| 11 |
38W-15431-00-00 |
COVER, CRANKCASE 3 Price: $248.99 |
| 12 |
91317-06025-00 |
BOLT This part replaces 91316-06025-00. Price: $2.65 |
| 13 |
91317-06045-00 |
BOLT This part replaces 91316-06045-00. Price: $5.49 |
| 14 |
91317-06065-00 |
BOLT This part replaces 91316-06065-00. Price: $4.05 |
| 15 |
1G8-15362-00-00 |
PLUG, OIL LEVEL Price: $17.49 |
| 16 |
93210-14579-00 |
O-RING This part replaces 93210-14104-00. Price: $7.49 |
| 17 |
38W-15462-10-00 |
GASKET8 GAS COR3 This part replaces 38W-15462-00-00. Price: $19.99 |
| 18 |
38W-15492-00-00 |
COVER Price: $29.99 |
| 19 |
99530-10114-00 |
PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 20 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95816-06025-00. Price: $1.75 |
| 21 |
95817-06035-00 |
BOLT, FLANGE This part replaces 95816-06035-00. Price: $8.49 |
| 22 |
98517-06008-00 |
SCREW This part replaces 98506-06008-00. Price: $9.49 |
