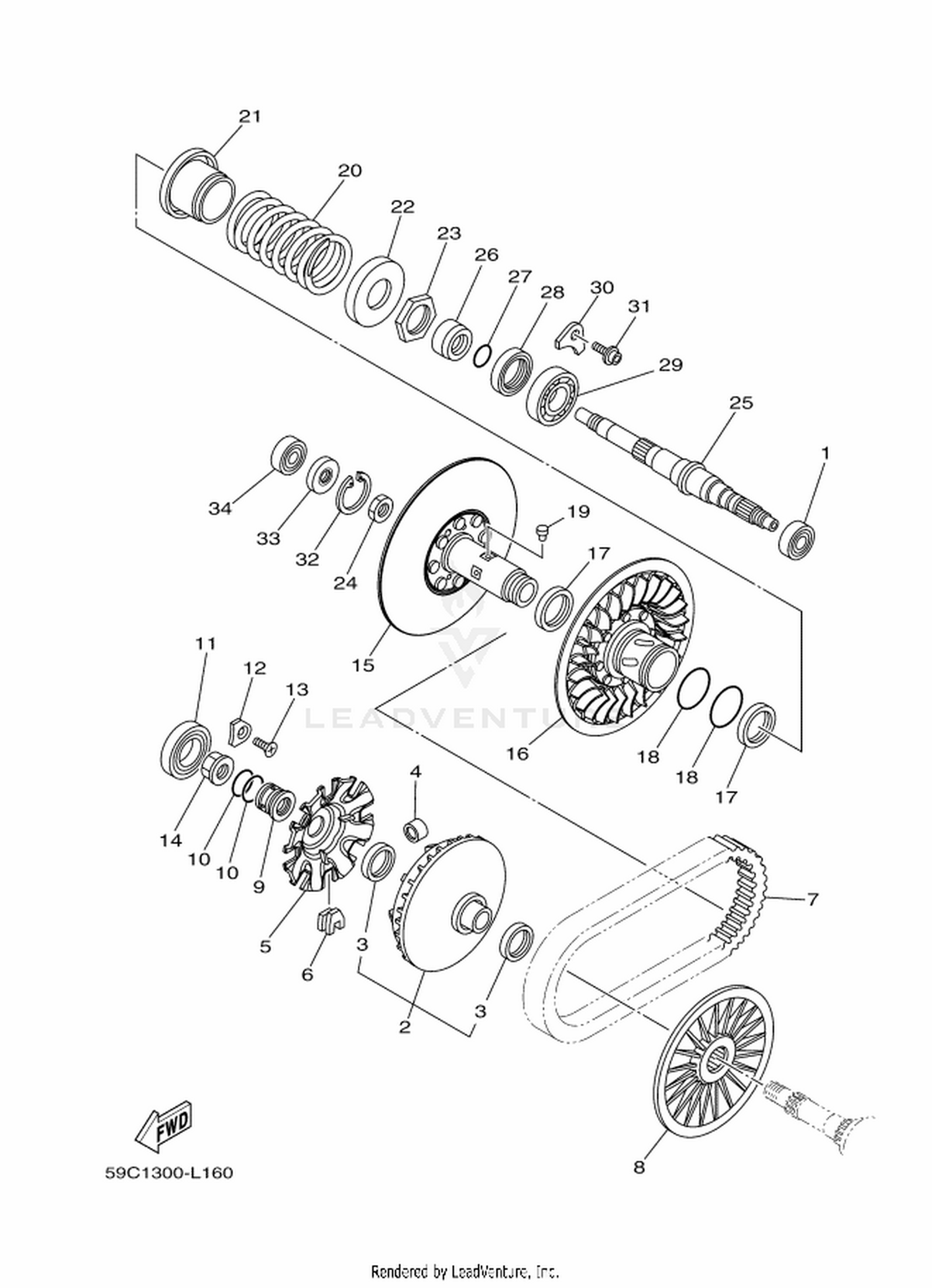

16 CLUTCH 2
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 93306-30102 | BEARING Price: Call Us |
| 2 | 59C-W1760-00 | PRIMARY SLIDING SHEAVE ASSY. Price: Call Us |
| 4 | 5RU-17632-20 | WEIGHT Price: Call Us |
| 5 | 59C-17623-00 | CAM Price: Call Us |
| 6 | 59C-17653-00 | SLIDER Price: Call Us |
| 7 | 59C-17641-00 | V-BELT Price: Call Us |
| 8 | 59C-17611-00 | SHEAVE, PRIMARY FIXED Price: Call Us |
| 9 | 59C-17649-00 | SPACER Price: Call Us |
| 10 | 93210-30611 | O-RING Price: Call Us |
| 11 | 93306-00713 | BEARING Price: Call Us |
| 12 | 4XM-15383-00 | PLATE, BEARING COVER Price: Call Us |
| 13 | 90151-06024 | SCREW, COUNTERSUNK Price: Call Us |
| 14 | 90179-20013 | NUT Price: Call Us |
| 15 | 59C-17660-00 | SECONDARY FIXED SHEAVE COMP. Price: Call Us |
| 16 | 59C-17670-00 | SECONDARY SLIDING SHEAVE Price: Call Us |
| 17 | 93104-41119 | OIL SEAL Price: Call Us |
| 19 | 4CW-17664-00 | PIN, GUIDE Price: Call Us |
| 20 | 90501-620A0 | SPRING, COMPRESSION Price: Call Us |
| 21 | 5GJ-17690-00 | SPRING SEAT COMP. Price: Call Us |
| 22 | 4WV-17644-00 | SEAT,SPRING Price: Call Us |
| 23 | 90170-36279 | NUT Price: Call Us |
| 24 | 90170-18221 | NUT Price: Call Us |
| 25 | 5VU-17681-00 | SHAFT, SECONDARY Price: Call Us |
| 26 | 90387-26001 | COLLAR Price: Call Us |
| 27 | 93210-26001 | O-RING Price: Call Us |
| 28 | 93102-42004 | OIL SEAL Price: Call Us |
| 29 | 93306-20651 | BEARING Price: Call Us |
| 30 | 5GJ-15383-00 | PLATE, BEARING COVER Price: Call Us |
| 31 | 90110-06036 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 32 | 99009-42500 | CIRCLIP Price: Call Us |
| 33 | 93102-15004 | OIL SEAL Price: Call Us |
