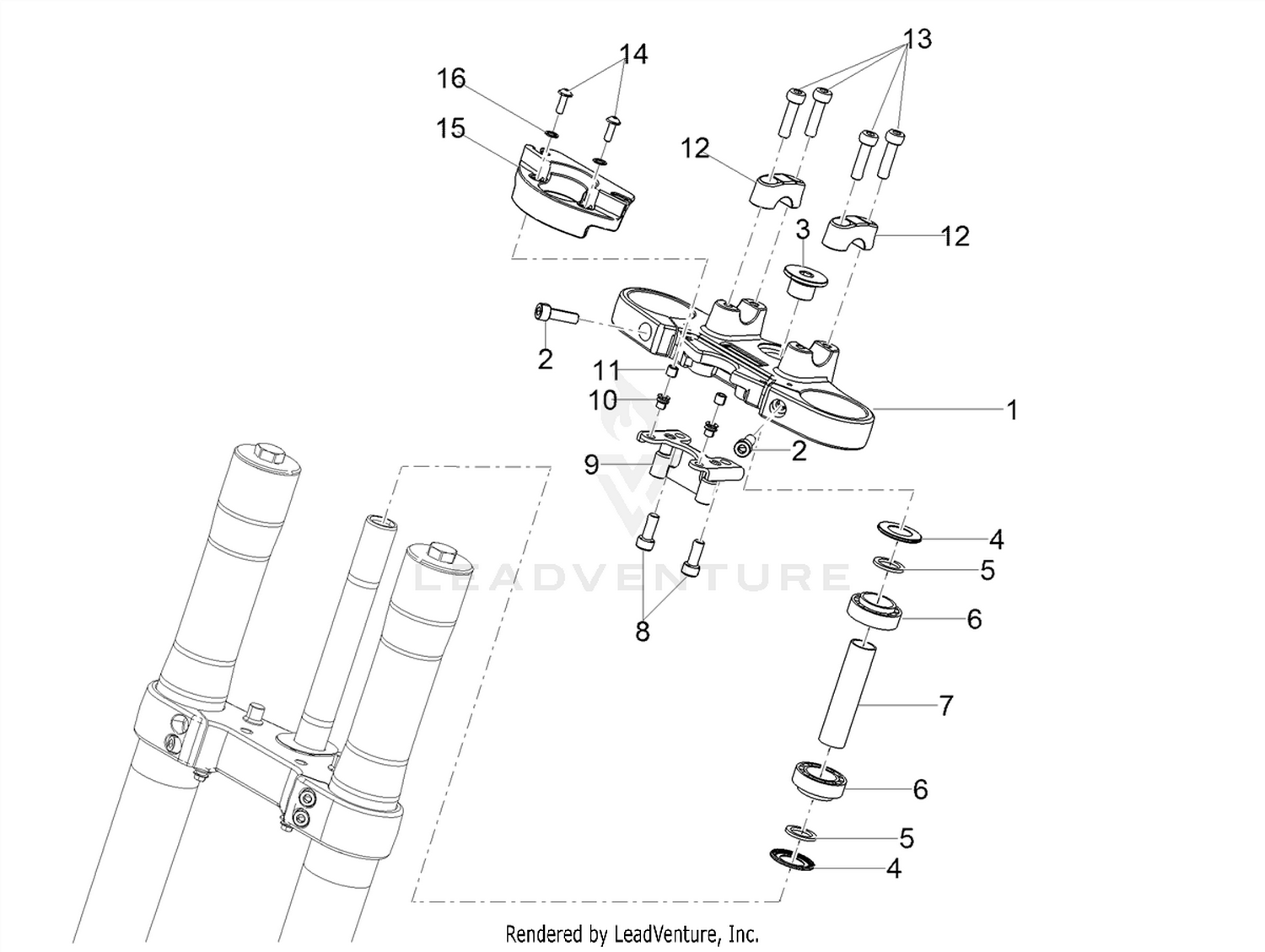

Steering
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2B003598 | Fork upper plate Price: $62.59 |
| 2 | AP8150170 | Hex socket screw Price: $0.20 |
| 3 | 865482 | Nut Price: Call Us |
| 4 | AP8104597 | Oil seal Price: $5.93 |
| 5 | AP8203550 | Steering washer Price: $2.70 |
| 6 | AP8110093 | Bearing Price: $12.43 |
| 7 | 865666 | Tube Price: Call Us |
| 8 | AP8150349 | Special screw Price: $3.22 |
| 9 | 2B003824 | Commutator support Price: $21.85 |
| 10 | AP8104390 | Threaded rivet Price: $2.70 |
| 11 | AP8221036 | Bushing Price: $0.20 |
| 12 | 2B003599 | U-bolt Price: $2.72 |
| 13 | AP8150107 | Hex socket screw Price: $2.70 |
| 14 | AP8152269 | Hex socket screw Price: $2.70 |
| 15 | 2B003760 | Switch cover Price: $3.90 |
