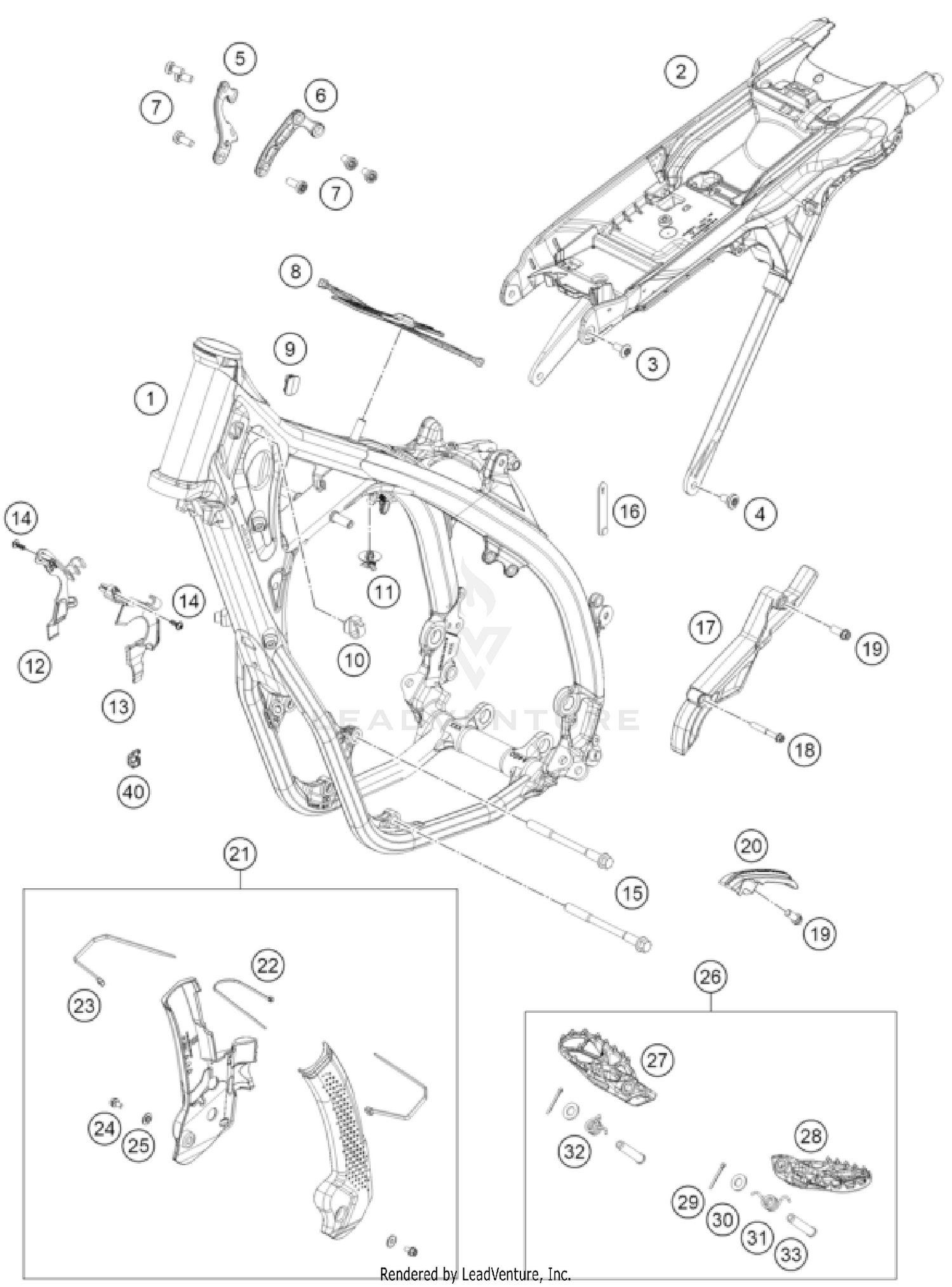

FRAME
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A39003001100HF | Frame Price: $2,441.88 |
| 2 | A36003002000C1A | Subframe Price: $450.79 |
| 3 | 09000008016U0 | Special screw M8x16 ISA45 self-locking Price: $1.99 |
| 4 | 79003003000 | SPECIAL SCREW M8X18 TORX45 SS Price: $3.99 |
| 5 | A49003014000 | Engine brace right Price: $52.46 |
| 6 | A49003013000 | Engine brace left Price: $51.03 |
| 7 | 0035080206S | SHCS M8x20 TX45 Price: $6.26 |
| 8 | A46007012100 | Fuel tank rubber Price: $11.65 |
| 9 | 79111013010 | Cover control head sheet Price: $2.99 |
| 10 | 58111076000 | CABLE SUPPORT KHS NR.150-47610 Price: $4.99 |
| 11 | 79711013010 | Cable bracket d8 Price: $1.99 |
| 12 | A46003099020 | Cable bracket/throttle cable guide Price: $4.99 |
| 13 | A46003099010 | Cable bracket Price: $4.99 |
| 14 | 0081050141 | EJOT PT screw K50x14 Price: $1.99 |
| 15 | 59003013000 | ENGINEBRAC.SCREW M10X123 WS=13 Price: $11.10 |
| 16 | 60011093075 | RUBBER CABLE TIE 75MM 03 Price: $6.15 |
| 17 | A46003096000 | Front sprocket cover Price: $16.05 |
| 18 | 0025060456 | HH COLLAR SCREW M6X45 TX30 Price: $2.99 |
| 19 | 0025080206 | HH collar screw M8x20 Price: $2.99 |
| 20 | A46003053000 | Chain slider below Price: $7.47 |
| 21 | A36003094100HA | Frame protection set Price: $20.99 |
| 22 | 44011176200 | CABLE TIE 200/2,5MM BLACK Price: Call Us |
| 23 | 44011076200 | CABLE TIE 200/3,6MM BLACK Price: $1.99 |
| 24 | 0025050106 | HH collar screw M5x10 TX30 Price: $1.99 |
| 25 | 54803092060 | BUSH F. FRAME PROTECTION 03 Price: $4.99 |
| 26 | A46003137033 | Footpeg set Price: $150.36 |
| 27 | A46003141000 | Footpeg right Price: $92.83 |
| 28 | A46003140000 | Footpeg left Price: $92.83 |
| 29 | 0094032250 | PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: $1.99 |
| 31 | A46003044000 | Footrest spring left Price: $1.99 |
| 32 | A46003045000 | Footrest spring right Price: $1.99 |
| 33 | 54803044000 | PIN FOR FOOT PED 51.5X9.8 MM Price: $14.62 |
