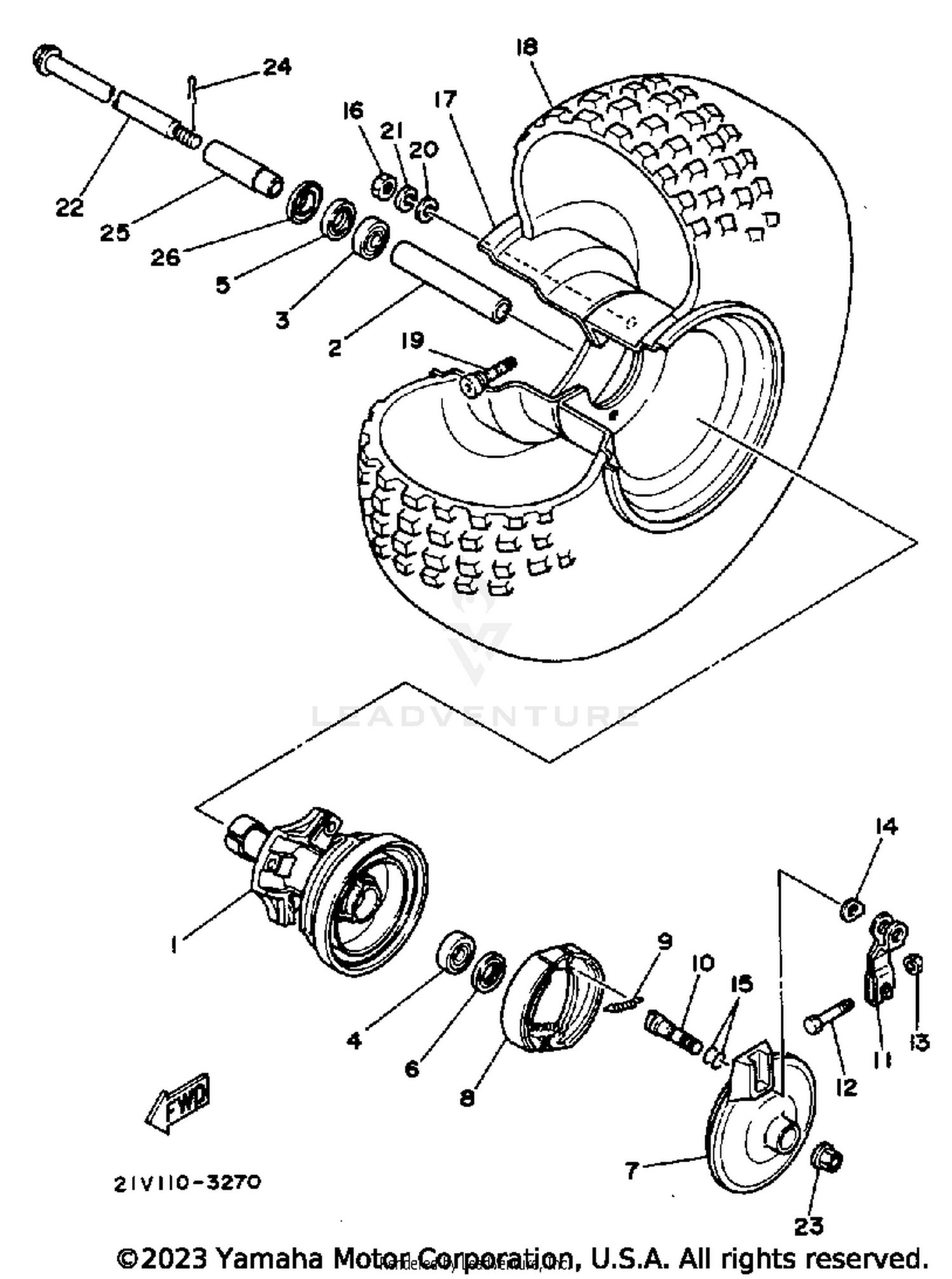

FRONT WHEEL YTM200K
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 29U-25111-00-00 | HUB,FRONT Price: $199.99 |
| 2 | 29U-25117-00-00 | SPACER, BEARING Price: $32.99 |
| 3 | 93306-20310-00 | BEARING (B6203DU) Price: $41.99 |
| 4 | 93306-00315-00 | BEARING This part replaces 93306-00302-00. Price: $36.99 |
| 5 | 93102-23252-00 | OIL SEAL Price: $16.49 |
| 6 | 93102-23275-00 | OIL SEAL Price: $16.49 |
| 8 | 4BE-W253E-00-00 | BRAKE SHOE KIT This part replaces 5G3-W2536-00-00. Price: $24.99 |
| 9 | 90506-15260-00 | SPRING, TENSION Price: $9.49 |
| 10 | 4GL-25351-00-00 | CAMSHAFT This part replaces 3Y6-25351-00-00. Price: $74.99 |
| 11 | 21V-25155-00-00 | LEVER, CAMSHAFT 1 Price: $17.49 |
| 12 | 90101-06278-00 | BOLT Price: $2.60 |
| 13 | 95380-06600-00 | NUT, HEXAGON Price: $4.80 |
