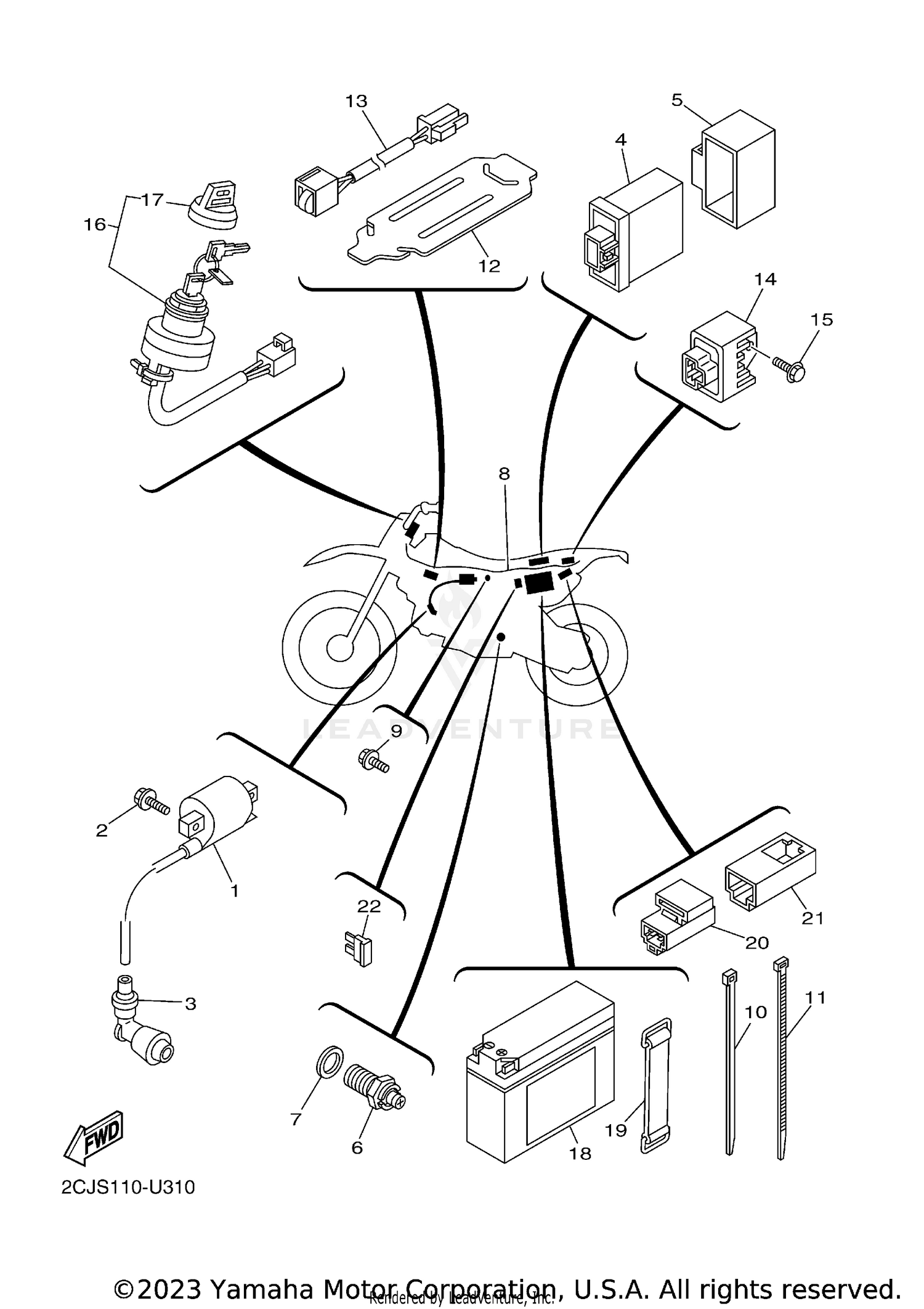

ELECTRICAL 1
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1P6-H2310-00-00 | IGNITION COIL ASSY Price: $96.99 |
| 2 | 95022-06020-00 | BOLT, FLANGE Price: $3.90 |
| 3 | 4BP-82370-01-00 | PLUG CAP ASSY This part replaces 4BP-82370-00-00. Price: $38.99 |
| 4 | 1P6-H5540-00-00 | C.D.I. UNIT ASSY Price: $241.99 |
| 5 | 1P6-H5546-00-00 | BAND Price: $7.49 |
| 6 | 5VL-H2540-11-00 | NEUTRAL SWITCH ASSY Price: $36.99 |
| 7 | 90430-10188-00 | GASKET Price: $7.49 |
| 8 | 1P6-H2590-12-00 | WIRE HARNESS ASSY Price: $246.99 |
| 9 | 97502-06514-00 | BOLT, WITH WASHER Price: $3.55 |
| 10 | 90464-35803-00 | CLAMP Price: $1.75 |
| 11 | 90464-20818-00 | CLAMP Price: $5.49 |
| 12 | 12B-H252U-00-00 | COVER Price: $11.49 |
| 13 | 5FU-82560-30-00 | THERMO SWITCH ASSY Price: $51.99 |
| 14 | 4CK-81960-01-00 | RECTIFIER & REGULATOR ASSY This part replaces 4GU-H1960-00-00. Price: $217.99 |
| 15 | 97502-06514-00 | BOLT, WITH WASHER Price: $3.55 |
| 16 | 1P6-H2510-13-00 | MAIN SWITCH ASSY Price: $92.99 |
| 17 | 1P6-H2579-00-00 | CAP, KEY Price: $22.99 |
| 18 | GT4-B5000-00-00 | GT4B5 GS BATTERY - Price: $104.99 |
| 19 | 1P6-H2131-00-00 | BAND, BATTERY Price: $10.99 |
| 20 | 29U-81950-93-00 | RELAY ASSY (ACA12115-1) Price: $84.99 |
| 21 | 1P6-H252U-00-00 | COVER Price: $5.49 |
