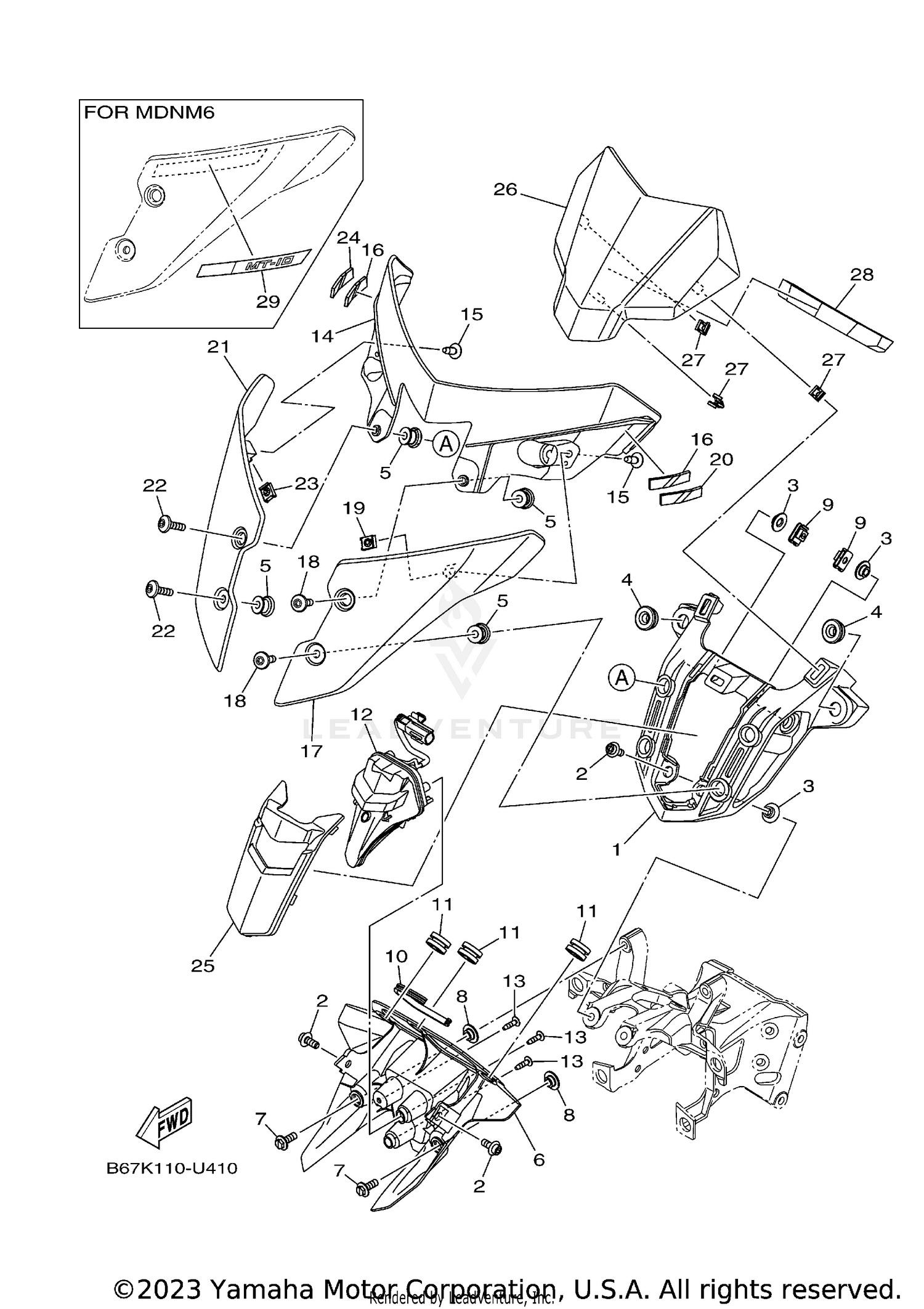

| Ref | Part Number | Description |
|---|
| 1 |
B67-28357-00-00 |
STAY 2 Price: $48.99 |
| 2 |
90110-06245-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 3 |
90387-06170-00 |
COLLAR Price: $9.49 |
| 4 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 5 |
90179-06072-00 |
NUT Price: $6.49 |
| 6 |
B67-2836R-00-00 |
PANEL, INNER 5 Price: $49.99 |
| 7 |
90105-06170-00 |
BOLT, FLANGE Price: $5.49 |
| 8 |
90387-06170-00 |
COLLAR Price: $9.49 |
| 9 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 10 |
2D1-24785-00-00 |
MOLD, SEAT Price: $9.49 |
| 11 |
4XV-83513-00-00 |
DAMPER Price: $8.49 |
| 12 |
B67-84301-00-00 |
PILOT LIGHT ASSY 1 Price: $262.99 |
| 13 |
97707-40016-00 |
SCREW, TAPPING This part replaces 97702-40016-00. Price: $9.49 |
| 14 |
B67-23121-00-00 |
COVER, UPPER 1 Price: $75.99 |
| 15 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 16 |
4XV-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $10.99 |
| 18 |
90111-06123-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.95 |
| 19 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 20 |
4XV-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $10.99 |
| 22 |
90111-06123-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.95 |
| 23 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 24 |
4XV-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $10.99 |
| 25 |
B67-28261-00-00 |
PANEL Price: $17.49 |
| 26 |
B67-83559-00-00 |
COVER, METER Price: $18.49 |
| 27 |
90468-040A0-00 |
CLIP Price: $9.49 |
| 28 |
90520-20003-00 |
DAMPER, PLATE Price: $9.49 |
