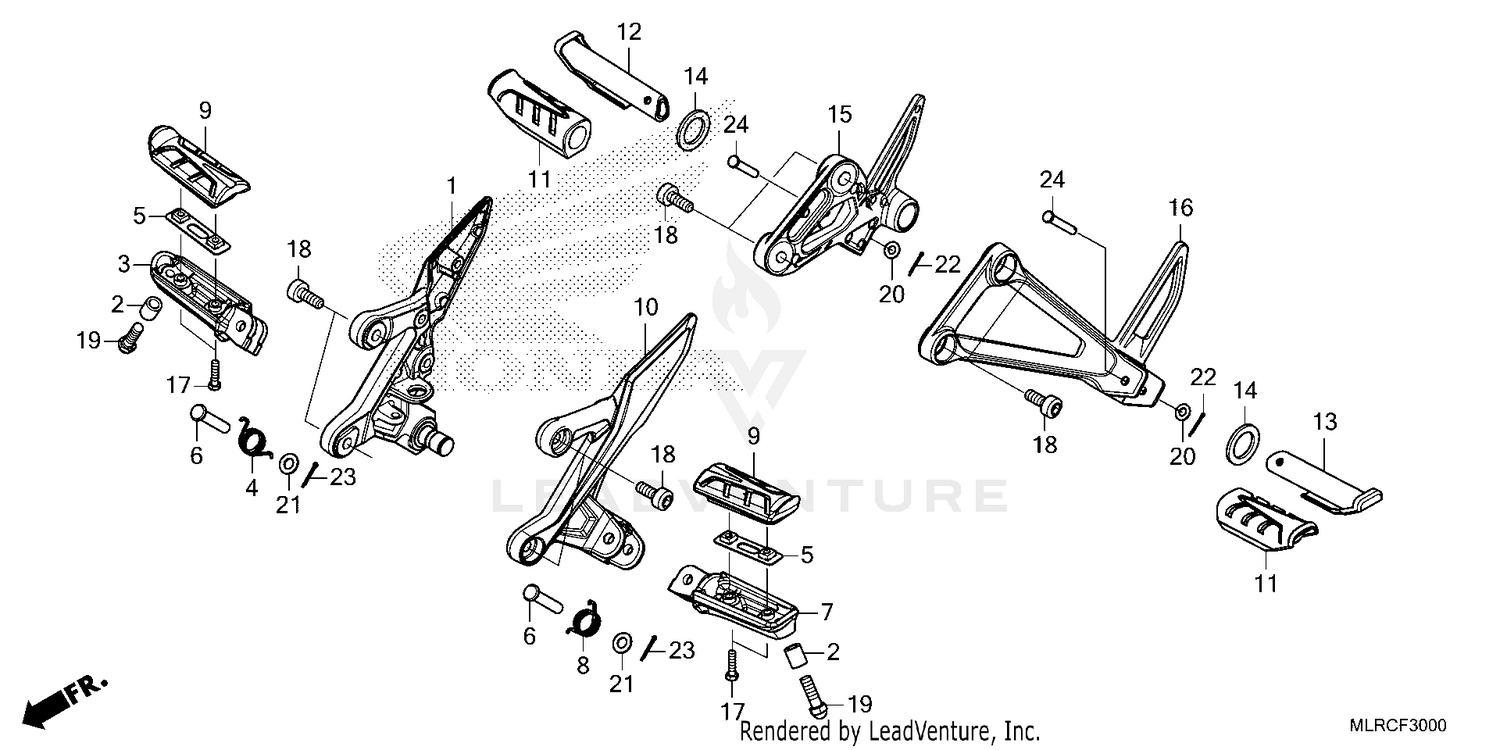

| Ref | Part Number | Description |
|---|
| 1 |
50600-MKP-J00 |
HOLDER, R. MAIN STEP Price: $45.42 |
| 2 |
50611-MKP-J80 |
COLLAR (12.7X15) Price: $1.56 |
| 3 |
50612-KYJ-305 |
ARM, R. STEP (COO) Price: $31.38 |
| 4 |
50617-445-840 |
SPRING, R. STEP RETURN (L. SIDE) Price: $6.84 |
| 5 |
50619-MM5-000 |
PLATE, STEP SETTING Price: $9.95 |
| 6 |
50639-ML0-010 |
PIN, STEP BAR Price: $6.36 |
| 7 |
50642-KYJ-305 |
ARM, L. STEP (COO) Price: $31.38 |
| 8 |
50644-445-840 |
SPRING, L. STEP RETURN (R. SIDE) Price: $6.84 |
| 9 |
50661-MJE-D00 |
RUBBER, MAIN STEP Price: $3.60 |
| 10 |
50700-MJW-J00 |
HOLDER, L. MAIN STEP Price: $37.13 |
| 11 |
50710-KYJ-305 |
RUBBER, PILLION STEP (COO) Price: $14.42 |
| 12 |
50711-KYJ-305 |
BAR, R. PILLION STEP (COO) This part replaces 50711-KET-600. Price: $18.15 |
| 13 |
50712-KYJ-305 |
BAR, L. PILLION STEP (COO) This part replaces 50712-KET-600. Price: $17.82 |
| 14 |
50714-KBA-930 |
PLATE, PILLION STEP SIDE Price: $1.69 |
| 15 |
50715-MKP-J80 |
HOLDER, R. PILLION STEP Price: $39.35 |
| 16 |
50725-MGZ-J00 |
HOLDER, L. PILLION STEP Price: $37.07 |
| 17 |
90115-MV9-000 |
BOLT, MAIN STEP RUBBER SETTING Price: $4.62 |
| 18 |
90116-MGZ-J00 |
BOLT, SOCKET (8X22) Price: $1.09 |
| 19 |
92501-08025-0A |
BOLT, CAP (8X25) (NOT AVAILABLE) Price: $4.78 |
| 20 |
94101-06800 |
WASHER, PLAIN (6MM) This part replaces 94101-06000. Price: $0.68 |
| 21 |
94102-08000 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 22 |
94201-16250 |
PIN, COTTER (1.6X25) This part replaces 94201-16150. Price: $1.08 |
| 23 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
