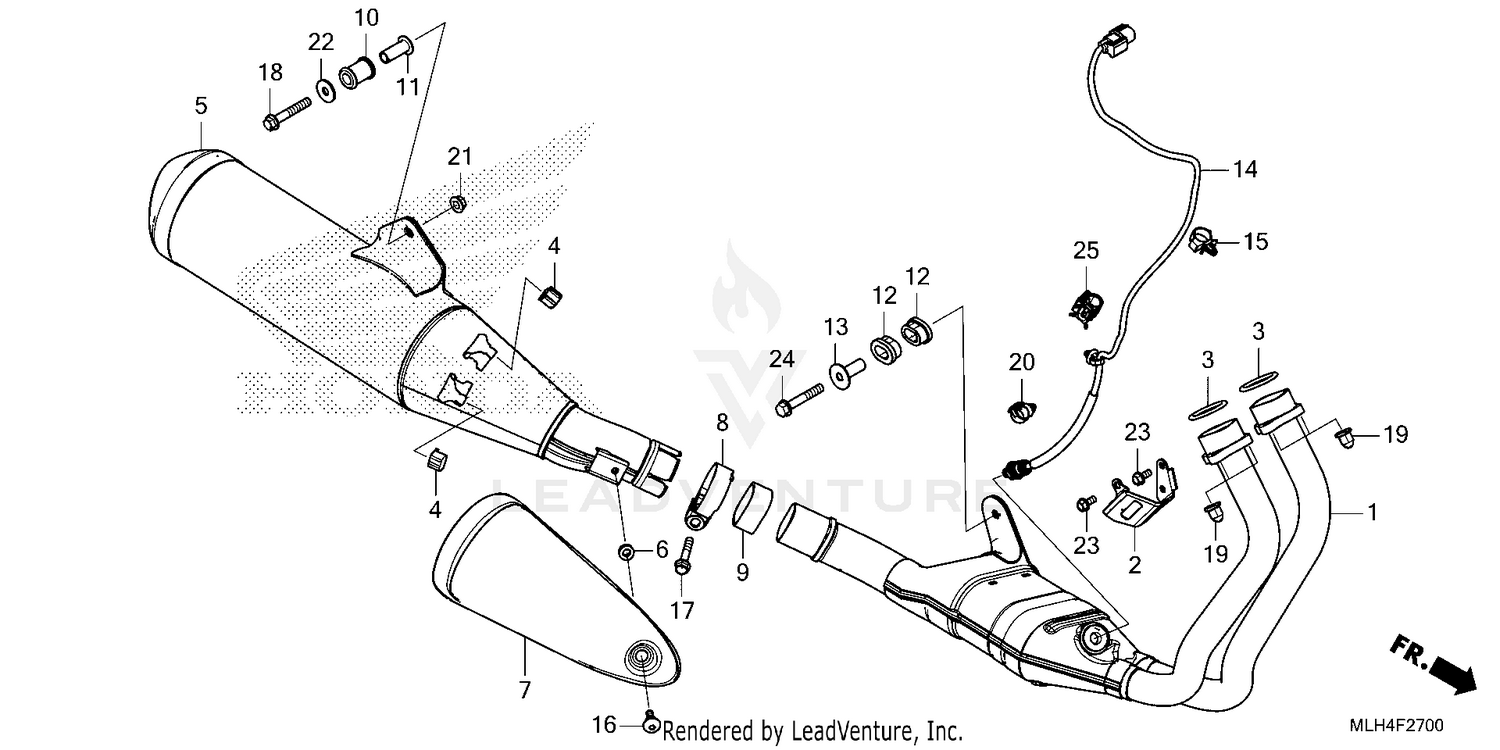

| Ref | Part Number | Description |
|---|
| 1 |
18150-MKG-A00 |
PIPE, EX. Price: $793.16 |
| 2 |
18190-MGZ-J40 |
COVER, SENSOR Price: $26.42 |
| 3 |
18291-MN4-920 |
GASKET, EX. PIPE Price: $6.67 |
| 4 |
18293-MN0-000 |
RUBBER, PROTECTOR Price: $2.44 |
| 5 |
18310-MKG-A00 |
MUFFLER Price: $436.98 |
| 6 |
18345-MBT-610 |
RUBBER, PROTECTOR MOUNTING Price: $2.49 |
| 7 |
18355-K87-A00 |
COVER, MUFFLER Price: $31.36 |
| 8 |
18376-MG7-000 |
BAND, L. RR. MUFFLER Price: $32.85 |
| 9 |
18391-MJW-J01 |
GASKET, MUFFLER Price: $13.05 |
| 10 |
18421-MB0-000 |
RUBBER, MUFFLER MOUNTING Price: $7.96 |
| 11 |
18422-MAL-600 |
COLLAR, MUFFLER MOUNTING This part replaces 18422-KAF-700. Price: $7.44 |
| 12 |
18422-MGZ-J00 |
RUBBER, EX. PIPE MOUNTING Price: $10.69 |
| 13 |
18423-MGZ-J00 |
COLLAR, EX. PIPE MOUNTING Price: $5.65 |
| 14 |
36531-MKG-A31 |
SENSOR, OXYGEN Price: $150.86 |
| 15 |
53781-SE0-952 |
CLIP, RETURN HOSE Price: $7.93 |
| 16 |
90115-K87-A00 |
SCREW, PAN (6X12) Price: $1.25 |
| 17 |
90161-MCT-770 |
BOLT, FLANGE (8X40) Price: $2.53 |
| 18 |
90163-GHB-730 |
BOLT, FLANGE (8X50) Price: $0.91 |
| 19 |
90304-KPH-700 |
NUT, HEX. CAP (8MM) Price: $1.95 |
| 20 |
90683-MGC-920 |
CLIP, HARNESS Price: $3.56 |
| 21 |
94050-08070 |
NUT, FLANGE (8MM) Price: $1.71 |
| 22 |
94103-08700 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 23 |
95701-06014-07 |
BOLT, FLANGE (6X14) Price: $1.52 |
| 24 |
95701-08050-00 |
BOLT, FLANGE (8X50) Price: $2.57 |
