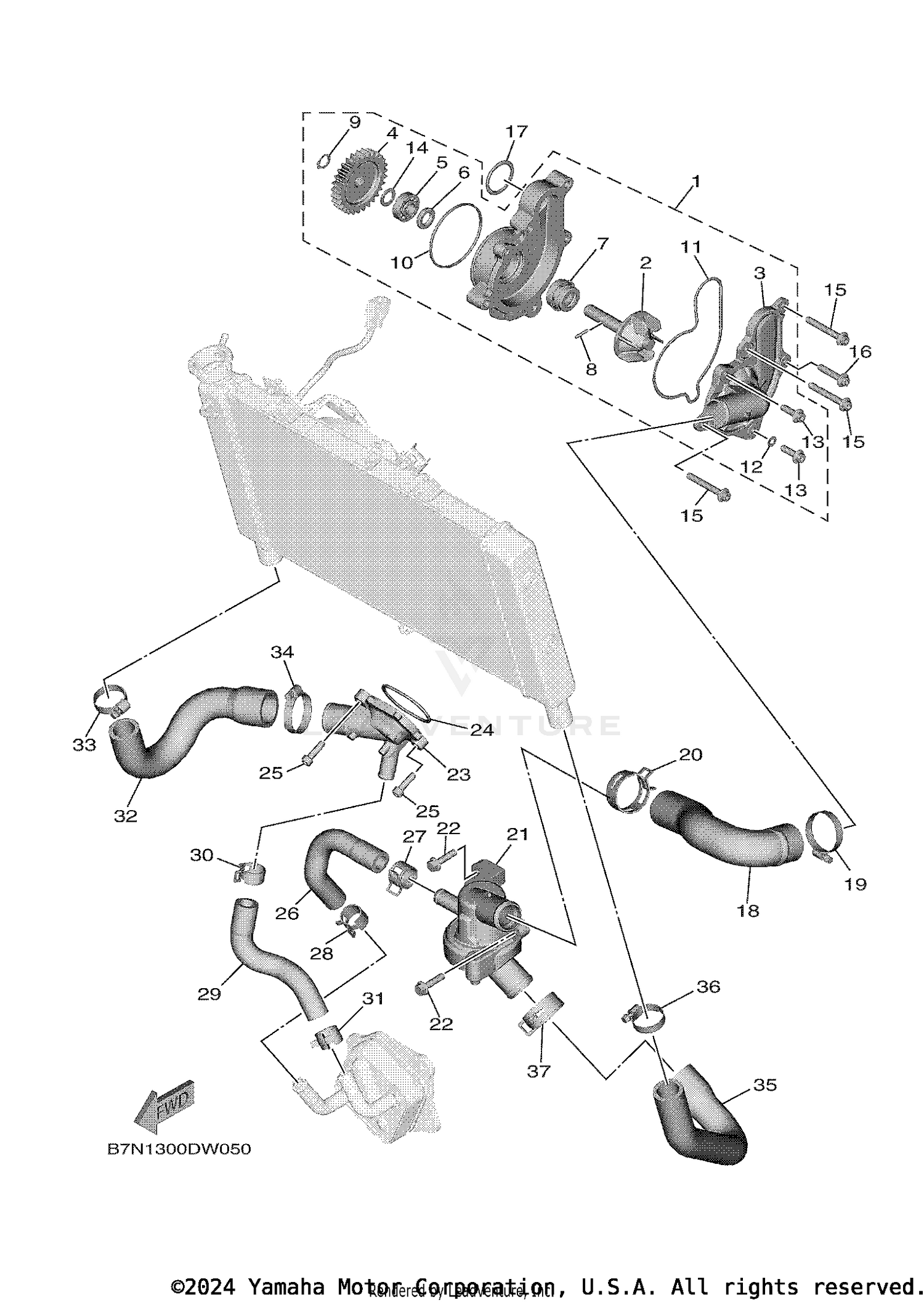

| Ref | Part Number | Description |
|---|
| 1 |
B7N-12420-00-00 |
WATER PUMP ASSY Price: $254.99 |
| 2 |
1RC-12450-10-00 |
IMPELLER SHAFT ASS Price: $42.99 |
| 3 |
B7N-12422-00-00 |
COVER, HOUSING Price: $79.99 |
| 4 |
1RC-12459-00-00 |
GEAR, IMPELLER SHAFT Price: $34.99 |
| 5 |
93306-00105-00 |
BEARING This part replaces 93306-00106-00. Price: $33.99 |
| 6 |
93101-12173-00 |
OIL SEAL Price: $14.49 |
| 7 |
5VK-12438-00-00 |
SEAL, MECHANICAL Price: $66.99 |
| 8 |
1RC-1319L-10-00 |
PIN, STRAIGHT Price: $4.10 |
| 9 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 10 |
93210-61750-00 |
O-RING Price: $9.49 |
| 11 |
1RC-12439-00-00 |
O-RING Price: $15.49 |
| 12 |
90430-06014-00 |
GASKET Price: $8.60 |
| 13 |
90110-06396-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.20 |
| 14 |
90201-12541-00 |
WASHER, PLATE Price: $8.49 |
| 15 |
90110-06394-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.60 |
| 16 |
90110-06388-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 17 |
93210-30694-00 |
O-RING Price: $8.49 |
| 18 |
1RC-12577-00-00 |
HOSE 2 Price: $24.99 |
| 19 |
90450-38040-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 20 |
90467-310A0-00 |
CLIP Price: $5.49 |
| 21 |
B7N-12410-00-00 |
THERMOSTAT ASSY Price: $133.99 |
| 22 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95822-06025-00. Price: $1.75 |
| 23 |
1RC-12469-00-00 |
JOINT 1 Price: $58.99 |
| 24 |
93210-46044-00 |
O-RING Price: $8.49 |
| 25 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 26 |
BS2-12578-00-00 |
HOSE 3 Price: $13.49 |
| 27 |
90467-21068-00 |
CLIP Price: $8.49 |
| 28 |
90467-200A0-00 |
CLIP Price: $9.99 |
| 29 |
BS2-12579-00-00 |
HOSE 4 Price: $16.49 |
| 30 |
90467-22002-00 |
CLIP Price: $4.49 |
| 31 |
90467-200A0-00 |
CLIP Price: $9.99 |
| 32 |
B7N-12588-00-00 |
HOSE 5 Price: $17.49 |
| 33 |
90450-32003-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 34 |
90450-38040-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 35 |
B7N-12576-00-00 |
HOSE 1 Price: $32.99 |
| 36 |
90450-32003-00 |
HOSE CLAMP ASSY Price: $18.49 |
