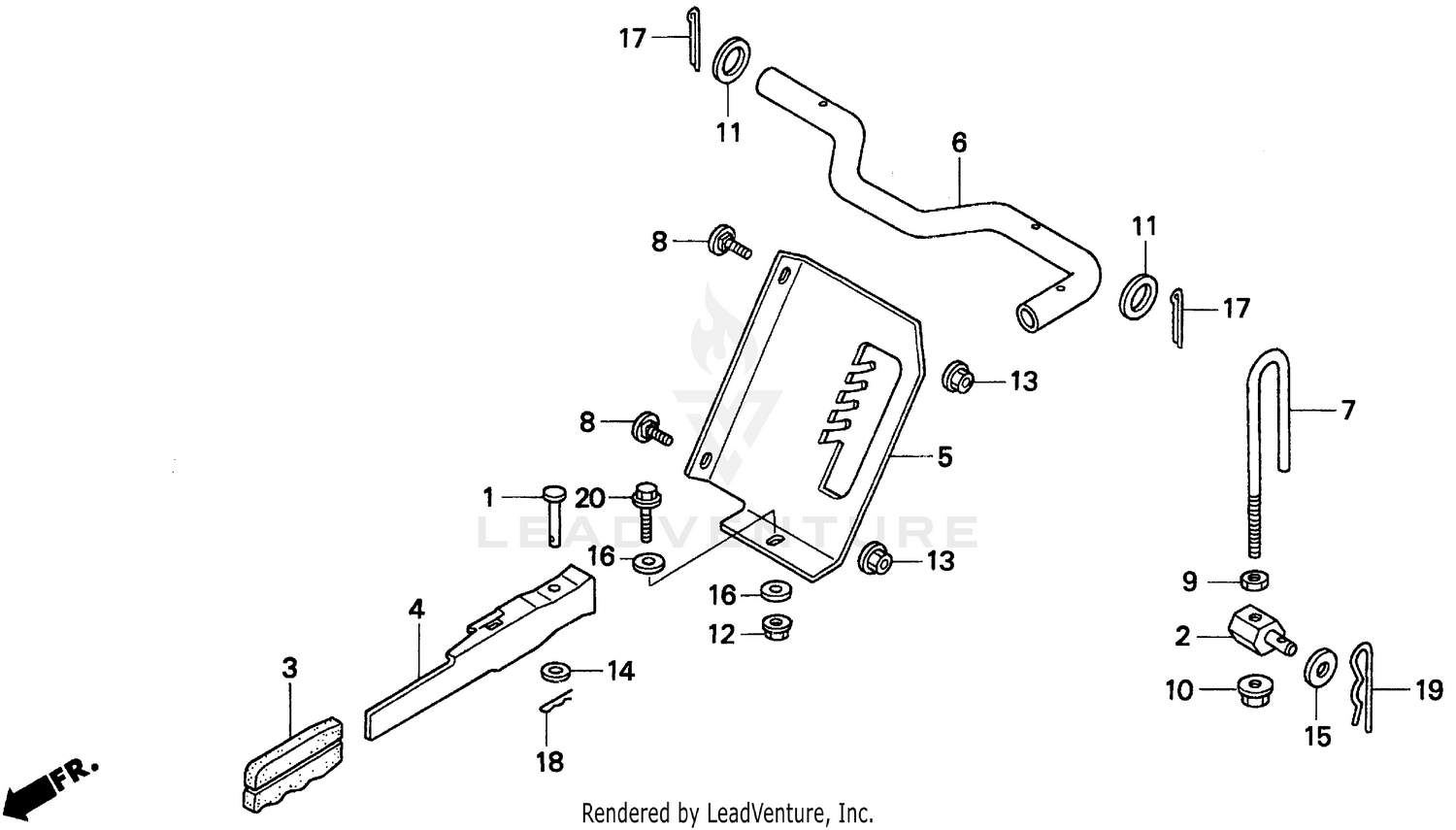

| Ref | Part Number | Description |
|---|
| 1 |
50603-KAE-000 |
PIN, STEP BAR JOINT Price: $5.52 |
| 2 |
76186-763-A00 |
PIN, RR. LINK ADJUSTING Price: $18.70 |
| 3 |
76315-772-000 |
GRIP, HEIGHT ADJUSTMENT Price: $1.72 |
| 4 |
76411-772-000 |
LEVER, HEIGHT ADJUSTMENT Price: $11.98 |
| 5 |
76412-772-000 |
PLATE, RATCHET Price: $22.50 |
| 6 |
76421-772-000 |
ARM, LIFT Price: $29.98 |
| 7 |
76432-772-000 |
BAR, ADJUSTMENT Price: $6.02 |
| 8 |
90101-963-000 |
BOLT, SPECIAL (9X15) Price: $4.20 |
| 9 |
90301-MB9-950 |
NUT, LOCK (12MM) Price: $4.10 |
| 10 |
90380-SB2-003 |
NUT, SELF-LOCK (OHASHI) Price: $2.40 |
| 11 |
91864-759-003 |
WASHER, PLAIN (26MM) Price: $11.06 |
| 12 |
94050-06080 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689). Price: $0.82 |
| 13 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 14 |
94101-08800 |
SEE PART DETAILS - SUP; WASHER, PLAIN (8MM) Price: $2.36 |
| 15 |
94101-14800 |
WASHER, PLAIN (14MM) Price: $1.54 |
| 16 |
94103-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) Price: $0.98 |
| 17 |
94201-50400 |
PIN, COTTER (5.0X40) Price: $1.26 |
| 18 |
94251-08000 |
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527). Price: $1.54 |
| 19 |
94252-14000 |
PIN, LOCK (14MM) Price: $2.60 |
