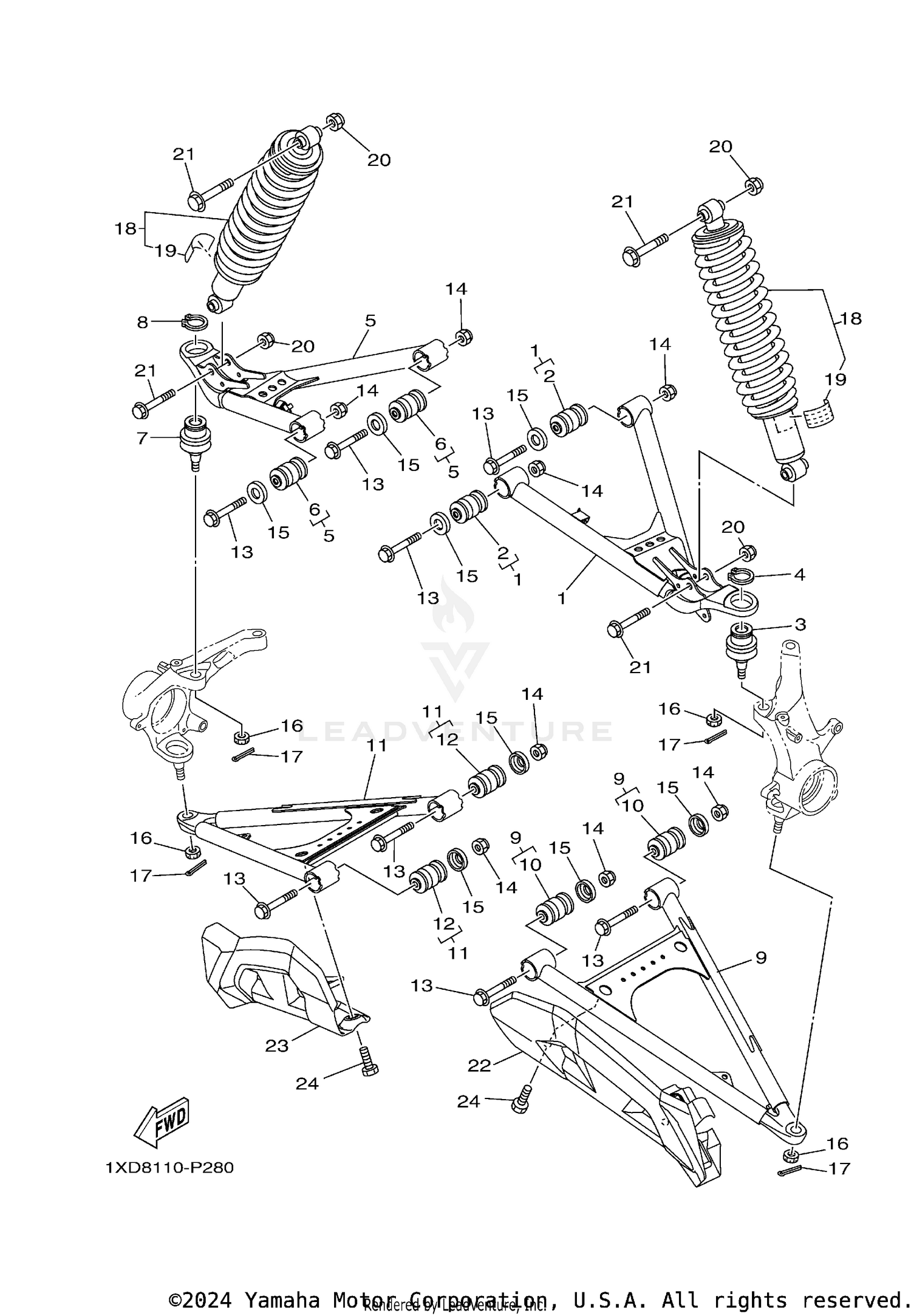

FRONT SUSPENSION & WHEEL
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1XD-F3540-02-00 | FRONT UPPER ARM CO Price: $95.99 |
| 2 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 3 | 1XD-23579-00-00 | BALL JOINT 2 Price: $83.99 |
| 4 | 93410-32075-00 | CIRCLIP This part replaces 99009-32400-00. Price: $10.49 |
| 5 | 1XD-F3550-02-00 | FRONT UPPER ARM CO Price: $95.99 |
| 6 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 7 | 1XD-23579-00-00 | BALL JOINT 2 Price: $83.99 |
| 8 | 93410-32075-00 | CIRCLIP This part replaces 99009-32400-00. Price: $10.49 |
| 9 | 2PG-F3570-01-00 | FRONT LOWER ARM CO Price: $99.99 |
| 10 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 11 | 2PG-F3580-01-00 | FRONT LOWER ARM CO Price: $95.99 |
| 12 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 13 | 90105-10267-00 | BOLT, FLANGE Price: $10.49 |
| 14 | 90185-10012-00 | NUT, SELF-LOCKING Price: $3.60 |
| 15 | BG4-F3517-00-00 | COVER, THRUST 1 Price: $1.15 |
| 16 | 90171-12001-00 | NUT, CASTLE Price: $3.55 |
| 17 | 91490-25020-00 | PIN. COTTER This part replaces 91402-25020-00. Price: $3.45 |
| 18 | BHF-F3390-00-00 | SHOCK ABSORBER ASS Price: $247.99 |
| 19 | B4J-F2259-00-00 | LABEL, WARNING Price: $1.95 |
| 20 | 90185-10012-00 | NUT, SELF-LOCKING Price: $3.60 |
| 21 | 90105-10283-00 | BOLT, FLANGE Price: $6.49 |
| 22 | 1XD-F3123-00-00 | COVER, UNDER 1 Price: $14.49 |
| 23 | 1XD-F3133-00-00 | COVER, LOWER 2 Price: $12.99 |
