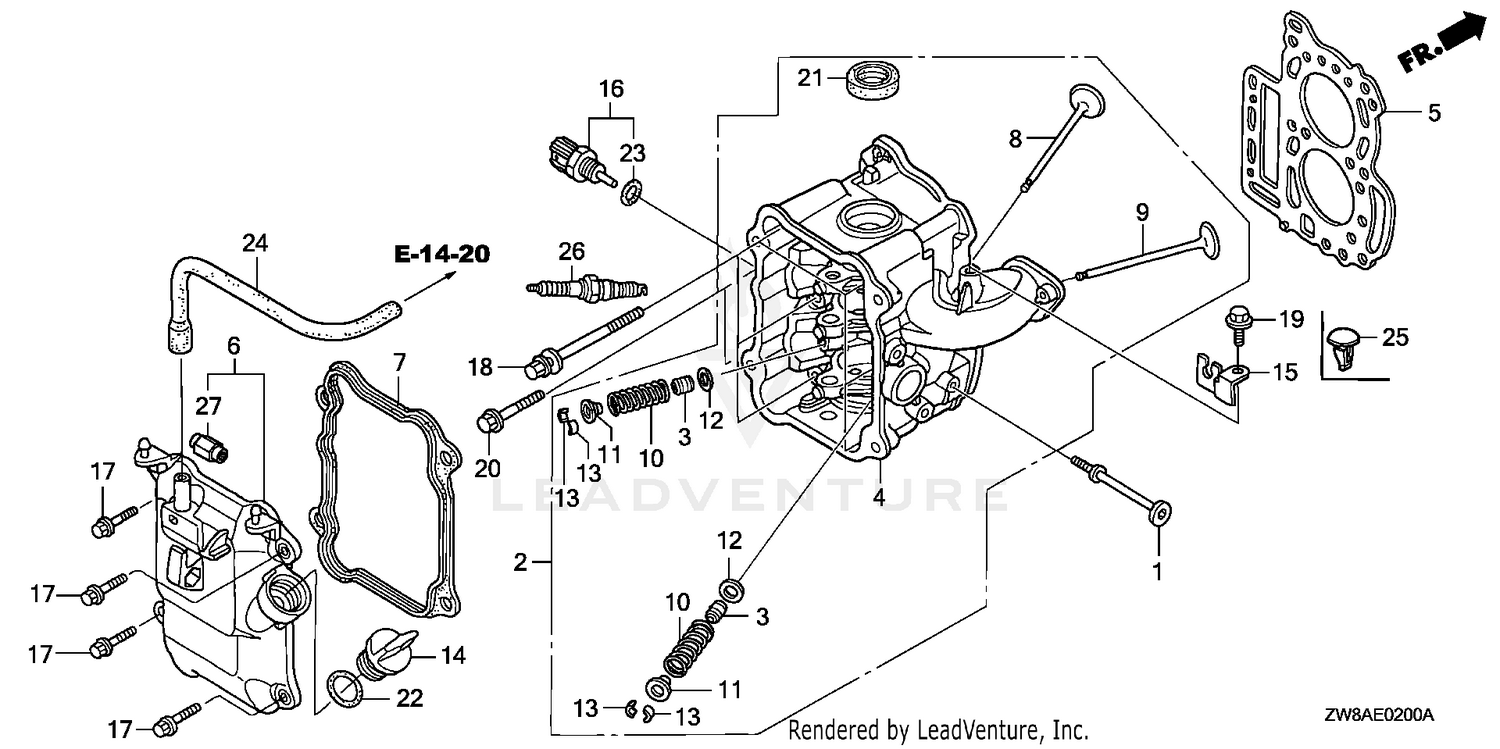

| Ref | Part Number | Description |
|---|
| 1 |
12166-ZW9-030 |
STOPPER, ENGINE SIDE Price: $7.10 |
| 1 |
35340MM5600 |
SWITCH ASSY., FR. STOP Price: Call Us |
| 2 |
45124MBTD51 |
HOSE COMP., FR. MASTER CYLINDER JOINT Price: Call Us |
| 3 |
12209-GB4-681 |
SEAL, VALVE STEM (NOK) Price: $8.74 |
| 3 |
45171MBTD50 |
CLAMPER C, BRAKE HOSE Price: Call Us |
| 4 |
12210-ZW9-405ZA |
CYLINDER HEAD (000) *NH8* (DARK GRAY) Price: $722.40 |
| 4 |
45504410003 |
BOOT COMP. Price: Call Us |
| 5 |
12251-ZW9-003 |
GASKET, CYLINDER HEAD Price: $87.98 |
| 5 |
45510MBT611 |
CYLINDER SUB ASSY., FR. MASTER Price: Call Us |
| 6 |
12310-ZW9-030 |
COVER, HEAD Price: $104.74 |
| 6 |
45513KK1771 |
CAP, MASTER CYLINDER Price: Call Us |
| 7 |
12312-ZW9-000 |
GASKET, HEAD COVER Price: $20.54 |
| 7 |
45517166006 |
HOLDER, MASTER CYLINDER Price: Call Us |
| 8 |
14711-ZW9-000 |
VALVE, IN. Price: $34.20 |
| 8 |
45518MG3016 |
SEPARATOR COMP. Price: Call Us |
| 9 |
14721-ZW9-000 |
VALVE, EX. Price: $46.66 |
| 9 |
45520MG7006 |
DIAPHRAGM Price: Call Us |
| 10 |
14751-ZW9-000 |
SPRING, VALVE Price: $5.24 |
| 10 |
45521HA2006 |
PLATE, DIAPHRAGM Price: Call Us |
| 11 |
14765-P08-000 |
RETAINER, VALVE SPRING Price: $9.18 |
| 11 |
45525MAJG41 |
ROD, PUSH Price: Call Us |
| 12 |
14775-ZW9-000 |
SEAT, VALVE SPRING Price: $2.50 |
| 12 |
45530MAJG41 |
PISTON SET, FR. MASTER CYLINDER Price: Call Us |
| 13 |
14781-MA6-000 |
COTTER, VALVE (Honda Code 1377571). Price: $4.02 |
| 13 |
53170MATE01 |
LEVER ASSY., R. HANDLE Price: Call Us |
| 14 |
15611-921-000 |
SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806). Price: $13.88 |
| 14 |
53180MBTD20ZA |
GUARD, R. KNUCKLE *NH1* Price: Call Us |
| 15 |
90114MN9006 |
BOLT, HANDLE LEVER Price: Call Us |
| 16 |
35673-ZW5-003 |
SENSOR ASSY., WATER TEMPERATURE Price: $26.28 |
| 16 |
90127KF0770 |
COLLAR, 6X4 Price: Call Us |
| 17 |
90003-ZY9-M01 |
BOLT, FLANGE (6X22) This part replaces 90003-ZW9-000. Price: $2.64 |
| 17 |
90145MS9612 |
BOLT, OIL, 10X22 Price: Call Us |
| 18 |
90007-ZW9-003 |
BOLT, FLANGE (8X83) Price: $9.58 |
| 18 |
90545300000 |
WASHER, OIL BOLT Price: Call Us |
| 19 |
90651MA5671 |
CIRCLIP Price: Call Us |
| 20 |
90055-ZZ5-M01 |
BOLT, FLANGE (8X40) Price: $2.56 |
| 20 |
93600040121G |
SCREW, FLAT, 4X12 Price: Call Us |
| 21 |
91202-KJ9-003 |
OIL SEAL (20X32X6) Price: $6.58 |
| 21 |
938930401217 |
SCREW-WASHER, 4X12 Price: Call Us |
| 22 |
91301-805-000 |
SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185). Price: $5.00 |
| 22 |
9405006000 |
NUT, FLANGE, 6MM Price: Call Us |
| 23 |
91307-PK2-005 |
O-RING (9.5X1.5) (HONDA KIKAKI) Price: $3.22 |
| 23 |
957010601207 |
BOLT, FLANGE, 6X12 Price: Call Us |
| 24 |
91401-ZW9-000 |
TUBE, BREATHER Price: $16.42 |
| 25 |
91601-ZW9-003 |
PLUG, HOLE (5.4MM) Price: $1.54 |
| 26 |
98059-55916 |
SPARK PLUG (CR5EH-9) (NGK) Price: $10.10 |
| 26 |
98059-55926 |
SPARK PLUG (U16FER9) (DENSO) Price: $11.84 |
