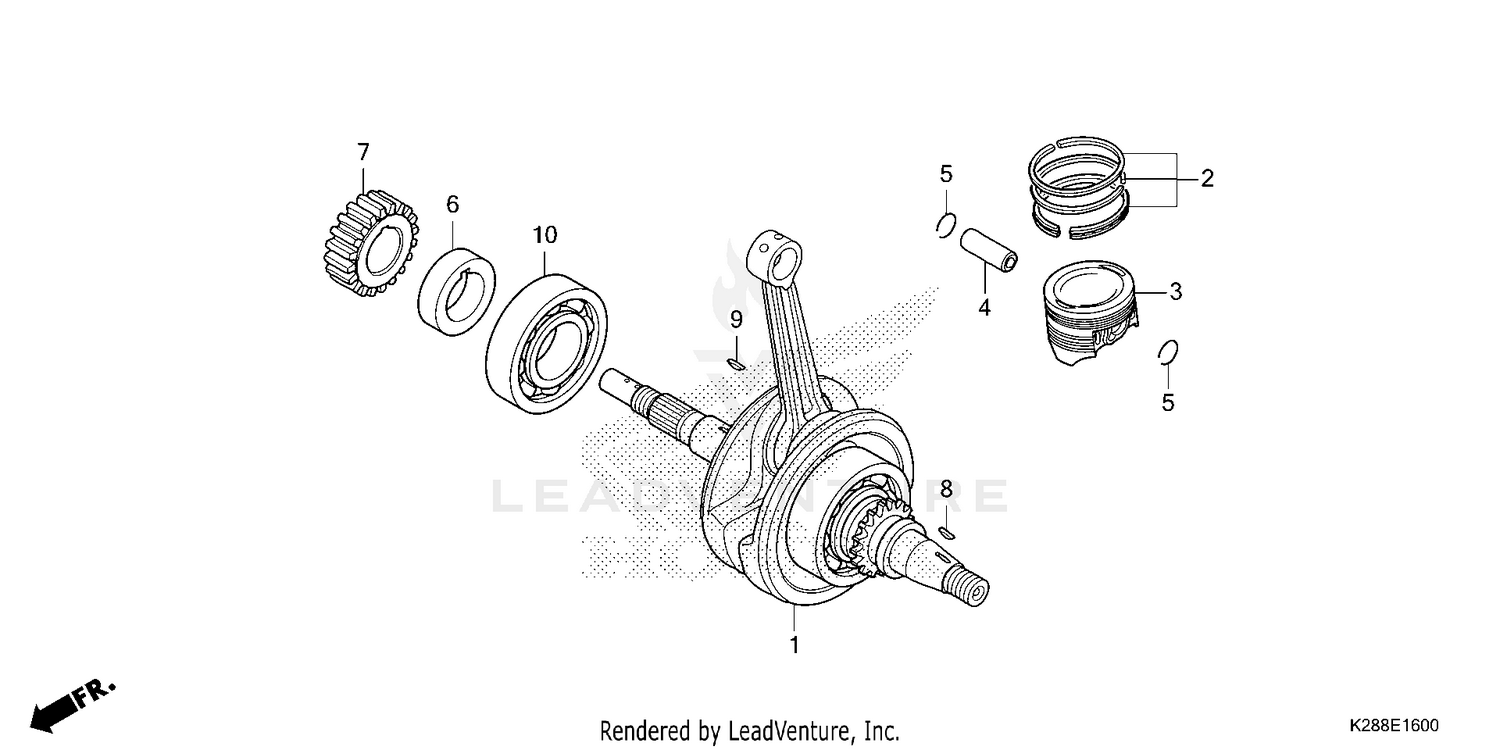

CRANKSHAFT@PISTON
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13000-K28-910 | CRANKSHAFT Price: $455.02 |
| 2 | 13011-KYY-900 | RING SET, PISTON (STD) (TPR) Price: $47.29 |
| 3 | 13101-KYY-900 | PISTON (STD) Price: $66.09 |
| 4 | 13111-KWS-900 | PIN, PISTON Price: $11.53 |
| 5 | 13115-KWS-900 | CLIP, PISTON PIN (12MM) Price: $2.55 |
| 6 | 13412-KWS-900 | COLLAR, PRIMARY DRIVE GEAR Price: $5.53 |
| 7 | 23121-KYY-900 | GEAR, PRIMARY DRIVE (20T) Price: $66.45 |
| 8 | 90701-HB6-010 | KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000. Price: $4.76 |
| 9 | 90741-KGH-900 | KEY, WOODRUFF (4MM) Price: $2.58 |
