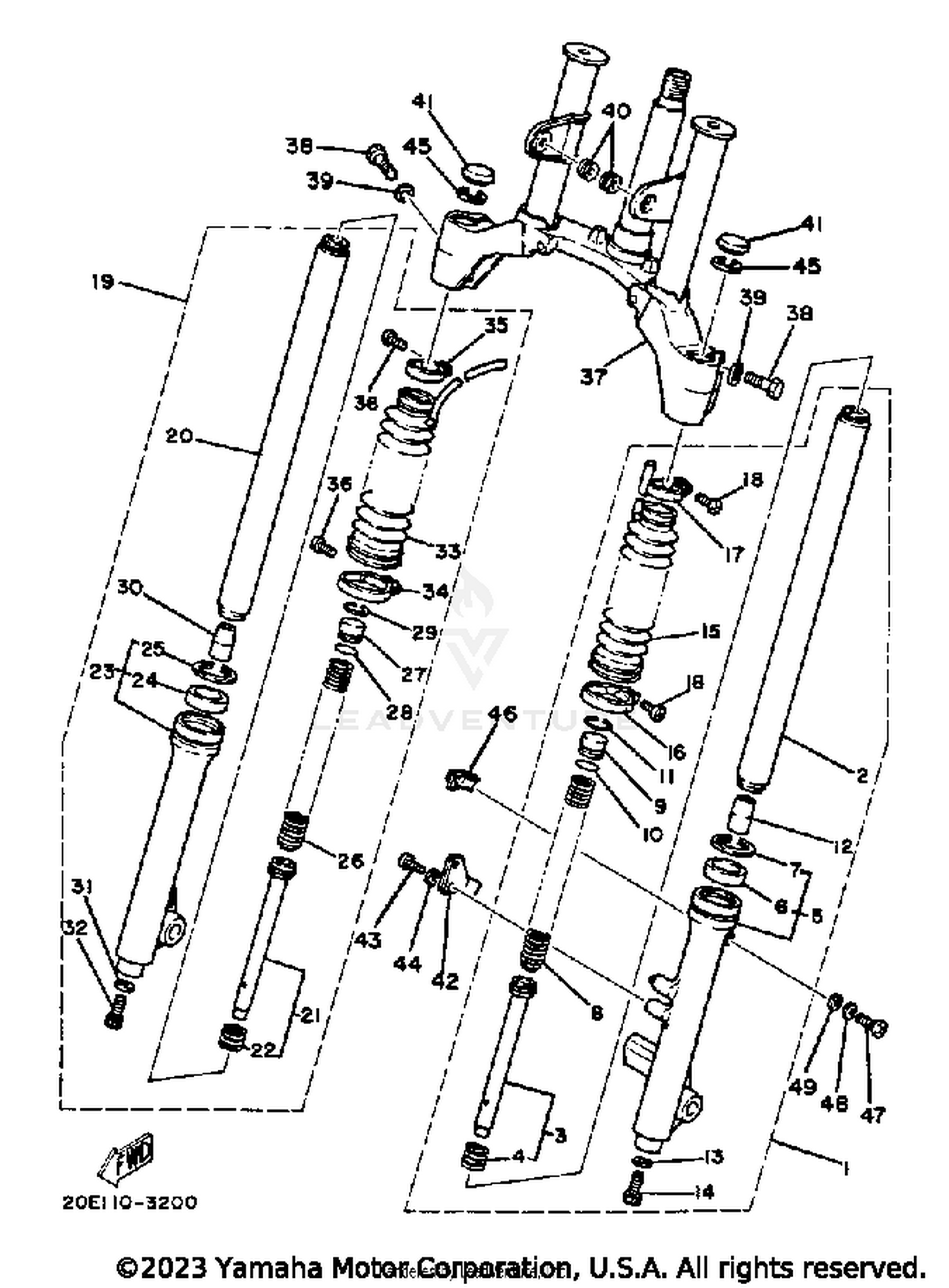

| Ref | Part Number | Description |
|---|
| 1 |
5V7-23102-00-00 |
FRONT FORK ASY L Price: $192.99 |
| 2 |
5V7-23110-00-00 |
INNER TUBE 1 Price: $116.99 |
| 3 |
5V7-23170-00-00 |
CYLINDER,FRTFRK Price: $17.80 |
| 4 |
5H5-23151-00-00 |
SPRING,REBOUND Price: $0.89 |
| 5 |
5V7-23106-00-00 |
OUTER TUBE LH Price: $99.99 |
| 6 |
93110-30013-00 |
OIL SEAL,SWO-TYPE This part replaces 93110-30008-00. Price: $29.99 |
| 7 |
93450-43072-00 |
CIRCLIP,INNER Price: $10.49 |
| 8 |
5V7-23141-00-00 |
SPRING,FRONT FORK Price: $9.28 |
| 9 |
5H5-23111-00-00 |
BOLT,CAP Price: $19.49 |
| 10 |
93210-21001-00 |
O-RING This part replaces 93210-21276-00. Price: $6.49 |
| 11 |
93450-27071-00 |
CIRCLIP,INNER Price: $8.49 |
| 13 |
90430-08143-00 |
GASKET This part replaces 90430-08155-00. Price: $3.35 |
| 14 |
91314-08025-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91311-08025-00. Price: $9.49 |
| 15 |
5V7-2312A-00-00 |
BOOT Price: $38.99 |
| 16 |
90460-52259-00 |
CLAMP,HOSE Price: $5.00 |
| 17 |
90460-35260-00 |
CLAMP,HOSE Price: $4.88 |
| 18 |
98580-04020-00 |
SCREW, PAN HEAD This part replaces 97801-04020-00. Price: $5.55 |
| 19 |
5V7-23103-00-00 |
FRONT FORK ASY R Price: $300.99 |
| 20 |
5V7-23110-00-00 |
INNER TUBE 1 Price: $116.99 |
| 21 |
5V7-23170-00-00 |
CYLINDER,FRTFRK Price: $17.80 |
| 22 |
5H5-23151-00-00 |
SPRING,REBOUND Price: $0.89 |
| 23 |
5V7-23107-00-00 |
OUTER TUBE RH Price: $112.99 |
| 24 |
93110-30013-00 |
OIL SEAL,SWO-TYPE This part replaces 93110-30008-00. Price: $29.99 |
| 25 |
93450-43072-00 |
CIRCLIP,INNER Price: $10.49 |
| 26 |
5V7-23141-00-00 |
SPRING,FRONT FORK Price: $9.28 |
| 27 |
5H5-23111-00-00 |
BOLT,CAP Price: $19.49 |
| 28 |
93210-21001-00 |
O-RING This part replaces 93210-21276-00. Price: $6.49 |
| 29 |
93450-27071-00 |
CIRCLIP,INNER Price: $8.49 |
| 30 |
5H5-23173-00-00 |
SPINDLE,TAPER Price: $22.99 |
| 31 |
90430-08143-00 |
GASKET This part replaces 90430-08155-00. Price: $3.35 |
| 32 |
91314-08025-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91311-08025-00. Price: $9.49 |
| 33 |
5V7-2312A-00-00 |
BOOT Price: $38.99 |
| 34 |
90460-52259-00 |
CLAMP,HOSE Price: $5.00 |
| 35 |
90460-35260-00 |
CLAMP,HOSE Price: $4.88 |
| 36 |
98580-04020-00 |
SCREW, PAN HEAD This part replaces 97801-04020-00. Price: $5.55 |
| 37 |
5V7-23340-00-98 |
UNDER BRACKET Price: $522.99 |
| 38 |
97017-10030-00 |
BOLT, HEXAGON This part replaces 97026-10030-00. Price: $3.65 |
| 39 |
92907-10100-00 |
WASHER, SPRING This part replaces 92906-10100-00. Price: $9.49 |
| 40 |
90480-20318-00 |
GROMMET Price: $0.94 |
| 41 |
5V7-23154-00-00 |
PLUG,INNER TUBE Price: $8.49 |
| 42 |
5V7-23317-00-00 |
HOLDER,CABLE Price: $14.99 |
| 43 |
98580-06020-00 |
SCREW, PAN HEAD Price: $9.49 |
| 44 |
92995-06100-00 |
WASHER, PAN HEAD Price: $3.45 |
| 45 |
93440-28099-00 |
CIRCLIP, OUTER Price: $4.65 |
| 46 |
5V7-23319-00-00 |
HOLDER,CABLE 2 Price: $6.26 |
| 47 |
98517-06025-00 |
SCREW, PAN HEAD This part replaces 98511-06025-00. Price: $4.05 |
| 48 |
92995-06100-00 |
WASHER, PAN HEAD Price: $3.45 |
