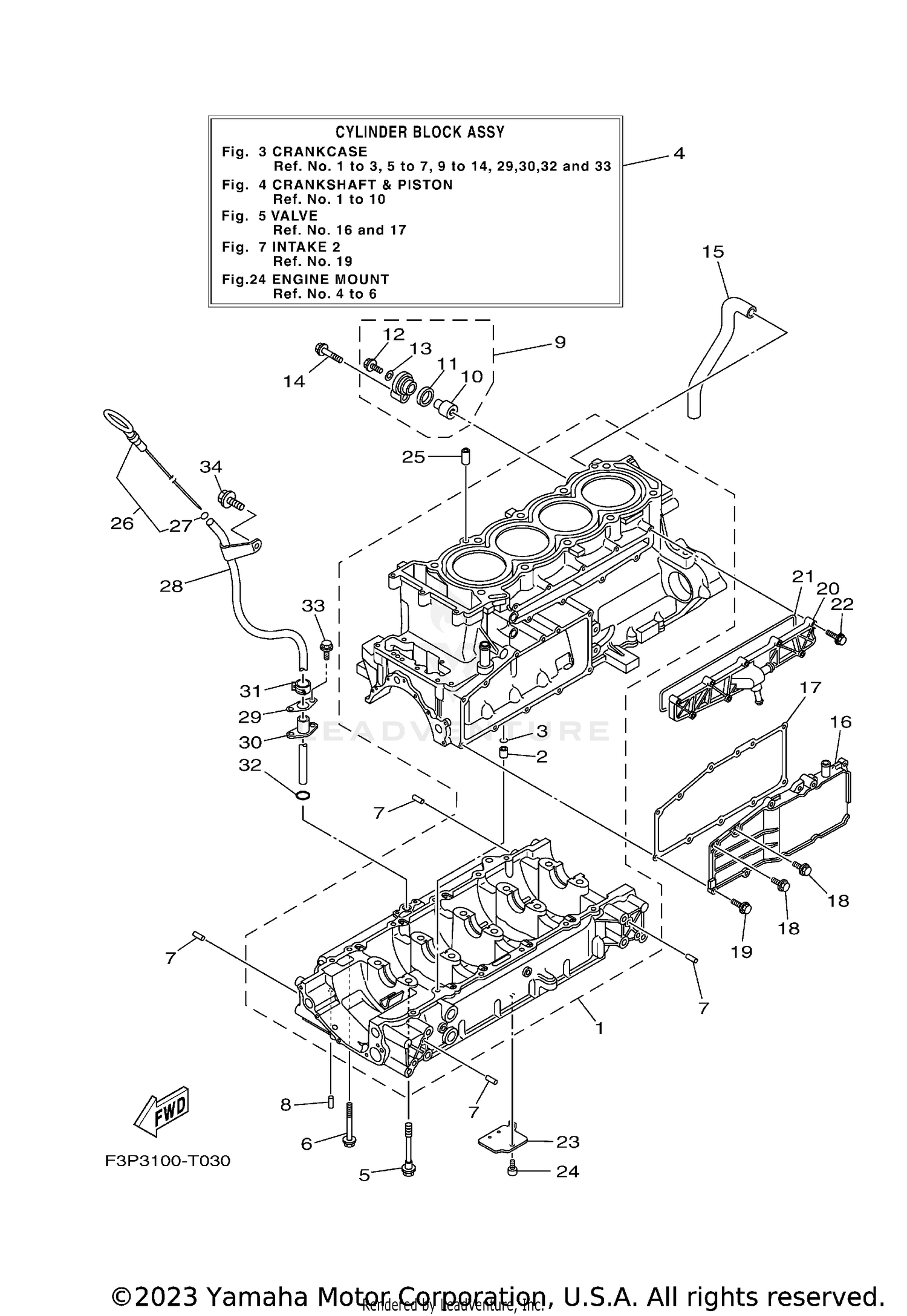

| Ref | Part Number | Description |
|---|
| 1 |
6CS-15100-20-00 |
CRANKCASE ASSY This part replaces 6CS-15100-11-00. Price: $4,029.49 |
| 2 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 3 |
93210-11453-00 |
O-RING Price: $8.49 |
| 4 |
6CS-W009B-21-94 |
CYLINDER BLOCK ASS This part replaces 6ET-W009B-01-94. Price: $4,931.49 |
| 5 |
90105-10071-00 |
BOLT, FLANGE Price: $14.15 |
| 6 |
95814-06070-00 |
BOLT, FLANGE Price: $9.49 |
| 7 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 8 |
93604-10M03-00 |
PIN, DOWEL Price: $5.20 |
| 9 |
6CB-W009A-04-00 |
CYLINDER HEAD COMP This part replaces 69J-11301-10-00. Price: $6,738.50 |
| 10 |
68V-11325-02-00 |
ANODE Price: $22.20 |
| 11 |
67F-11328-01-00 |
GROMMET, ANODE This part replaces 67F-11328-00-00. Price: $3.80 |
| 12 |
90105-06M07-00 |
BOLT, FLANGE Price: $2.30 |
| 13 |
90430-06M03-00 |
GASKET Price: $3.65 |
| 14 |
97E95-08540-00 |
BOLT, HEXAGON W/W This part replaces 97595-08540-00. Price: $2.30 |
| 15 |
6S5-11377-00-00 |
HOSE Price: $40.99 |
| 16 |
6S5-1131M-10-8P |
COVER Price: $144.49 |
| 17 |
6BH-13557-00-00 |
GASKET Price: $37.49 |
| 18 |
95024-06014-00 |
BOLT, FLANGE (SMALL HEAD) Price: $4.05 |
| 19 |
95024-06020-00 |
BOLT, FLANGE (SMALL HEAD) Price: $6.49 |
| 20 |
6CS-12469-A0-00 |
JOINT 1 Price: $81.49 |
| 21 |
6CS-12517-00-00 |
GASKET, WATER INLET Price: $20.99 |
| 22 |
95814-06035-00 |
BOLT, FLANGE Price: $8.49 |
| 23 |
6S5-13337-10-00 |
PLATE, BAFFLE LOWER Price: $3.99 |
| 24 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 25 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 26 |
6ET-15362-00-00 |
PLUG, OIL LEVEL Price: $48.49 |
| 27 |
93210-06632-00 |
O-RING Price: $9.49 |
| 28 |
6CS-8572F-00-00 |
PIPE, OIL LEVEL Price: $101.49 |
| 29 |
6BH-1319K-00-00 |
PLATE Price: $10.49 |
| 30 |
6CS-85516-00-00 |
SPACER Price: $23.99 |
| 31 |
90467-150A1-00 |
CLIP Price: $4.49 |
| 32 |
93210-12016-00 |
O-RING Price: $2.99 |
| 33 |
90109-06268-00 |
BOLT Price: $3.49 |
