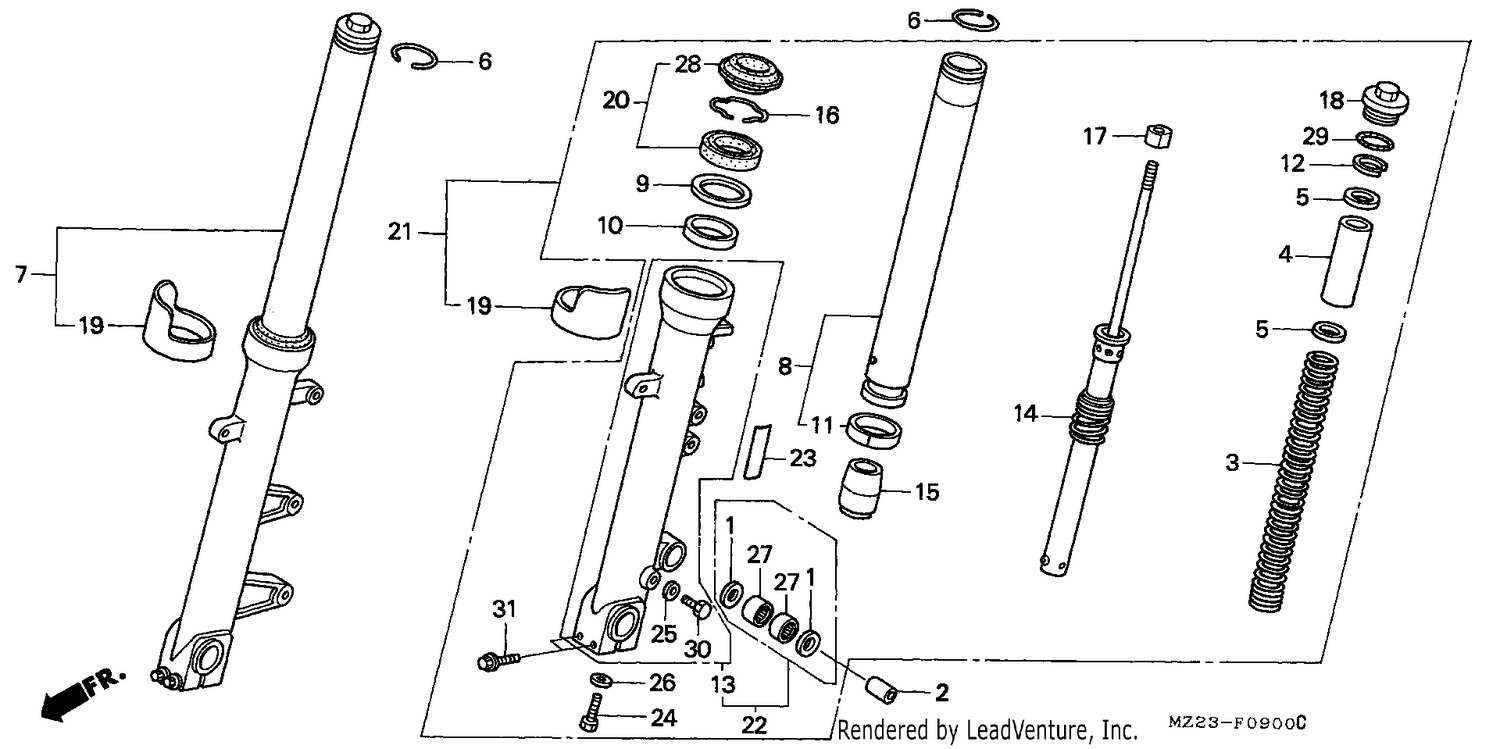

FRONT FORK

FRONT FORK

Parts (28)

RefPart NumberDescription
1 45134KB7005 DUST SEAL, BRAKE CAM (NOK) Price: Call Us
2 45452MZ2000 COLLAR, PIVOT Price: Call Us
3 51401MZ2003 SPRING, FR. FORK Price: Call Us
4 51402MS2003 COLLAR, SPRING Price: Call Us
5 51403KF0003 SEAT, SPRING Price: Call Us
6 51405MB4003 RING, STOPPER Price: Call Us
7 51400MZ2892 FORK ASSY., R. FR. (SHOWA) Price: Call Us
8 51410MZ2003 PIPE COMP., FR. FORK Price: Call Us
9 51412MB4003 RING, BACK UP Price: Call Us
10 51414MN5003 BUSH, GUIDE Price: Call Us
11 51415MM8003 BUSH, SLIDER Price: Call Us
12 51415MS2003 SEAT, SPRING Price: Call Us
13 51420MZ2892 CASE COMP., R. BOTTOM Price: Call Us
14 51430MZ2003 DAMPER COMP., FR. Price: Call Us
15 51432MS2003 PIECE, OIL LOCK Price: Call Us
16 51447KA4711 RING, OIL SEAL STOPPER Price: Call Us
17 51451KS7003 NUT, LOCK Price: Call Us
18 51455MT4003 BOLT, FR. FORK Price: Call Us
19 51460MT3611 PROTECTOR, FORK PIPE Price: Call Us
20 51490MN8305 SEAL SET, FR. FORK Price: Call Us
21 51500MZ2892 FORK ASSY., L. FR. (SHOWA) Price: Call Us
22 51520MZ2892 CASE COMP., L. BOTTOM Price: Call Us
23 87129MZ2890 MARK, FR. FORK Price: Call Us
24 90116383721 BOLT, SOCKET, 8X27 Price: Call Us
26 90544283000 WASHER, SPECIAL, 8MM Price: Call Us
27 91101KG8003 BEARING, NEEDLE, 14X20X12 Price: Call Us
28 91254MM8003 SEAL, DUST Price: Call Us
29 91356KF0003 O-RING, 33.2X2.4 Price: Call Us
