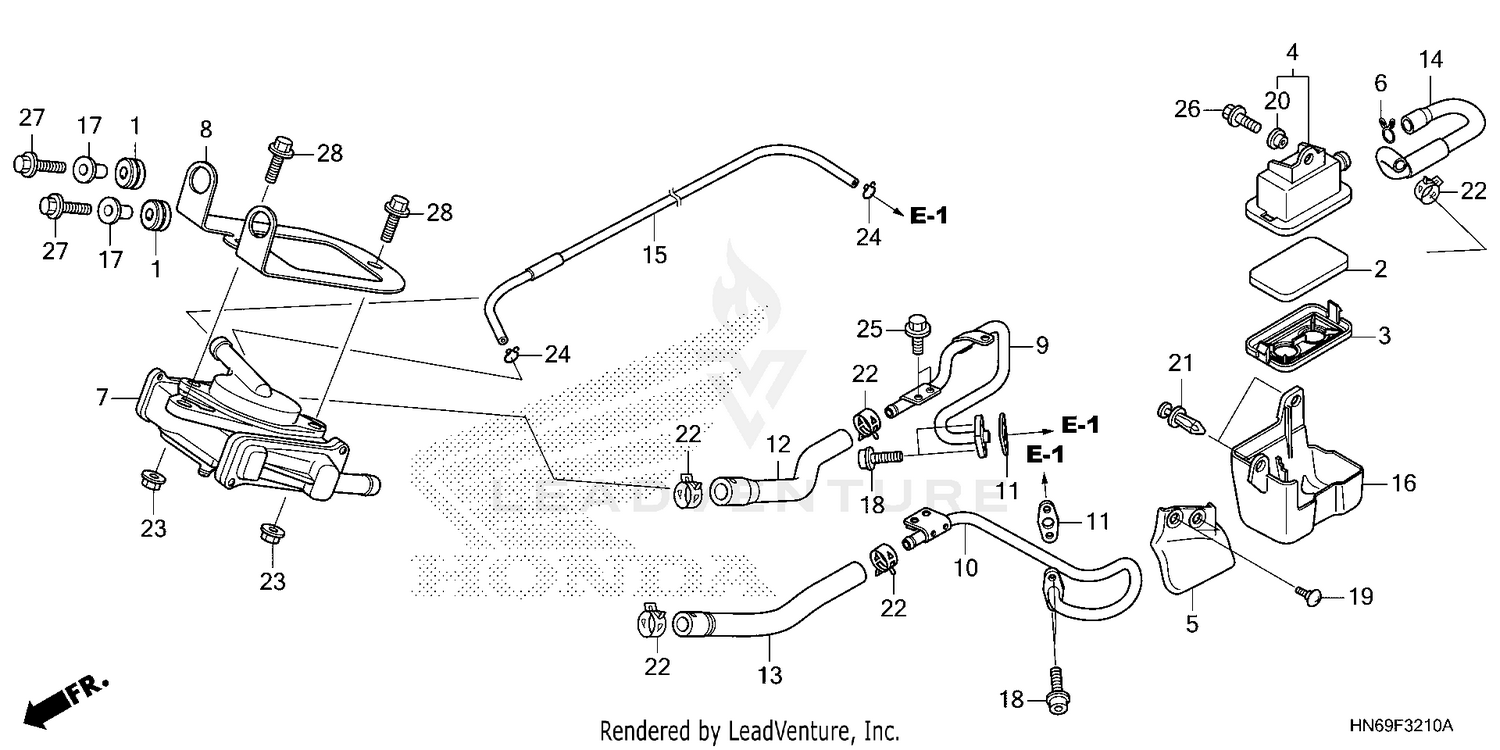

| Ref | Part Number | Description |
|---|
| 1 |
17245-107-010 |
RUBBER, AIR CLEANER HOUSING MOUNTING Price: $3.47 |
| 2 |
17255-HS0-A00 |
FILTER, SUB-AIR CLEANER Price: $1.74 |
| 3 |
17256-KBH-000 |
COVER, SUB-AIR CLEANER Price: $14.37 |
| 4 |
17256-MR7-010 |
CASE, SUB-AIR CLEANER Price: $17.67 |
| 5 |
17533-HN6-F30 |
COVER, AIR SUCTION PIPE Price: $3.95 |
| 6 |
17724-102-700 |
CLIP, SUB-TANK HOSE Price: $5.50 |
| 7 |
18600-HS0-A01 |
VALVE ASSY., AIR SUCTION Price: $126.18 |
| 8 |
18601-HS0-A00 |
STAY, AIR SUCTION VALVE MOUNT Price: $2.15 |
| 9 |
18640-HS0-A00 |
PIPE, R. AIR SUCTION Price: $153.89 |
| 10 |
18643-HS0-A00 |
PIPE, L. AIR SUCTION Price: $134.64 |
| 11 |
18645-HS0-A00 |
GASKET, AIR FEED PIPE Price: $1.53 |
| 12 |
18651-HS0-A00 |
HOSE, R. AIR SUCTION (A) Price: $28.55 |
| 13 |
18652-HS0-A00 |
HOSE, L. AIR SUCTION (A) Price: $30.53 |
| 14 |
18653-HS0-A00 |
HOSE, AIR SUCTION (B) Price: $20.13 |
| 15 |
18655-HS0-A00 |
TUBE, PB Price: $3.29 |
| 16 |
18658-HS0-A00 |
PROTECTOR, SUB-AIR CLEANER Price: $5.84 |
| 17 |
61104-428-010 |
COLLAR, FR. FENDER (WHITE) (FOR RR.) Price: $5.29 |
| 18 |
90097-MY6-880 |
BOLT, FLANGE SOCKET (6X20) Price: $5.51 |
| 19 |
90103-HC4-770 |
SCREW, SPLASH GUARD Price: $2.55 |
| 20 |
90522-028-000 |
WASHER, CHAIN CASE SETTING Price: $3.29 |
| 21 |
90653-HC4-900 |
CLIP, SPLASH GUARD (Honda Code 3795994) Price: $0.67 |
| 22 |
90678-MN5-000 |
CLIP, FUEL HOSE Price: $3.11 |
| 23 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 24 |
95002-02070 |
CLIP, TUBE (B7) CLIP, TUBE (B6.5) Price: $1.83 |
| 25 |
95701-06010-02 |
BOLT, FLANGE (6X10) Price: $1.70 |
| 26 |
95701-06016-08 |
BOLT, FLANGE (6X16) Price: $1.52 |
| 27 |
95701-06022-08 |
BOLT, FLANGE (6X22) Price: $1.88 |
