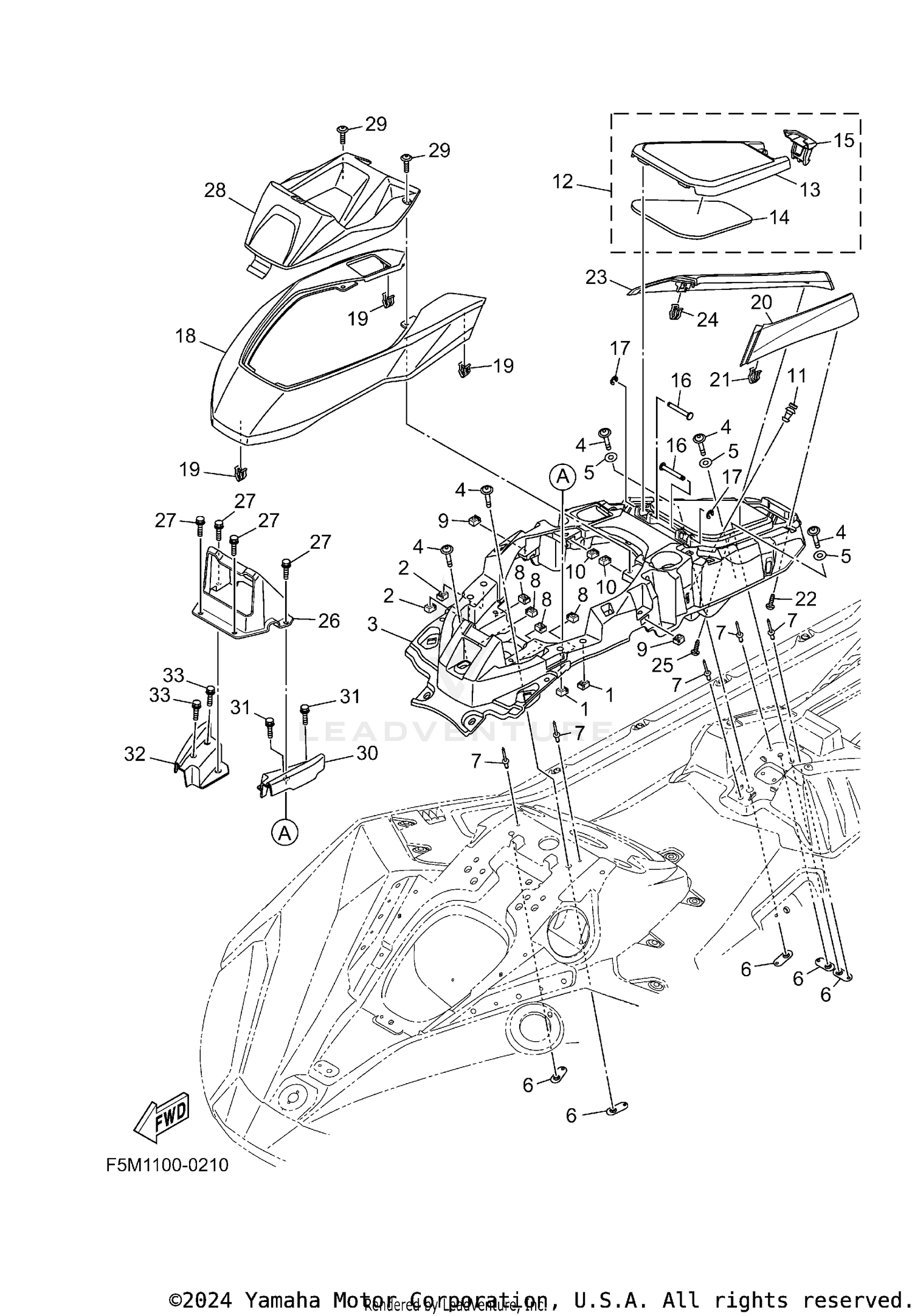

ENGINE HATCH 2
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 2 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 3 | F5P-U5554-00-00 | COVER,CENTER Price: $55.99 |
| 4 | F5G-U6829-00-00 | SCREW Price: $1.10 |
| 5 | F5P-U1439-00-00 | PACKING Price: $1.99 |
| 6 | F2X-U5175-00-00 | PLATE, FIX Price: $5.99 |
| 7 | F4P-U516R-01-00 | RIVET 1 Price: $10.99 |
| 8 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 9 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 10 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 11 | F3X-U2723-00-00 | SEAL Price: $6.99 |
| 12 | F5P-U4705-00-00 | GLOVE BOX COVER ASSY. Price: $67.99 |
| 13 | F5P-U517H-00-00 | LID HATCH Price: $94.99 |
| 14 | F5P-U519D-00-00 | PACKING CASE Price: $36.99 |
| 15 | F4N-U2875-00-00 | LOCK Price: $6.99 |
| 16 | F5P-U517R-00-00 | PIN,HINGE Price: $7.99 |
| 19 | F3Y-U153K-00-00 | CLIP Price: $5.99 |
| 21 | F3Y-U153K-00-00 | CLIP Price: $5.99 |
| 22 | F2S-U13C1-00-00 | SCREW Price: $6.99 |
| 24 | F3Y-U153K-00-00 | CLIP Price: $5.99 |
| 25 | F2S-U13C1-00-00 | SCREW Price: $6.99 |
| 26 | F5M-U8238-00-00 | BRACKET, METER Price: $12.99 |
| 27 | 90119-06892-00 | BOLT, WITH WASHER Price: $10.99 |
| 28 | F5M-U8262-01-00 | COVER METER Price: $47.99 |
| 29 | F3X-U7823-12-00 | SCREW Price: $5.99 |
| 30 | F5P-U2723-00-00 | SEAL Price: $3.99 |
| 31 | 90119-06892-00 | BOLT, WITH WASHER Price: $10.99 |
| 32 | F5P-U2724-00-00 | PLUG 2 Price: $3.99 |
