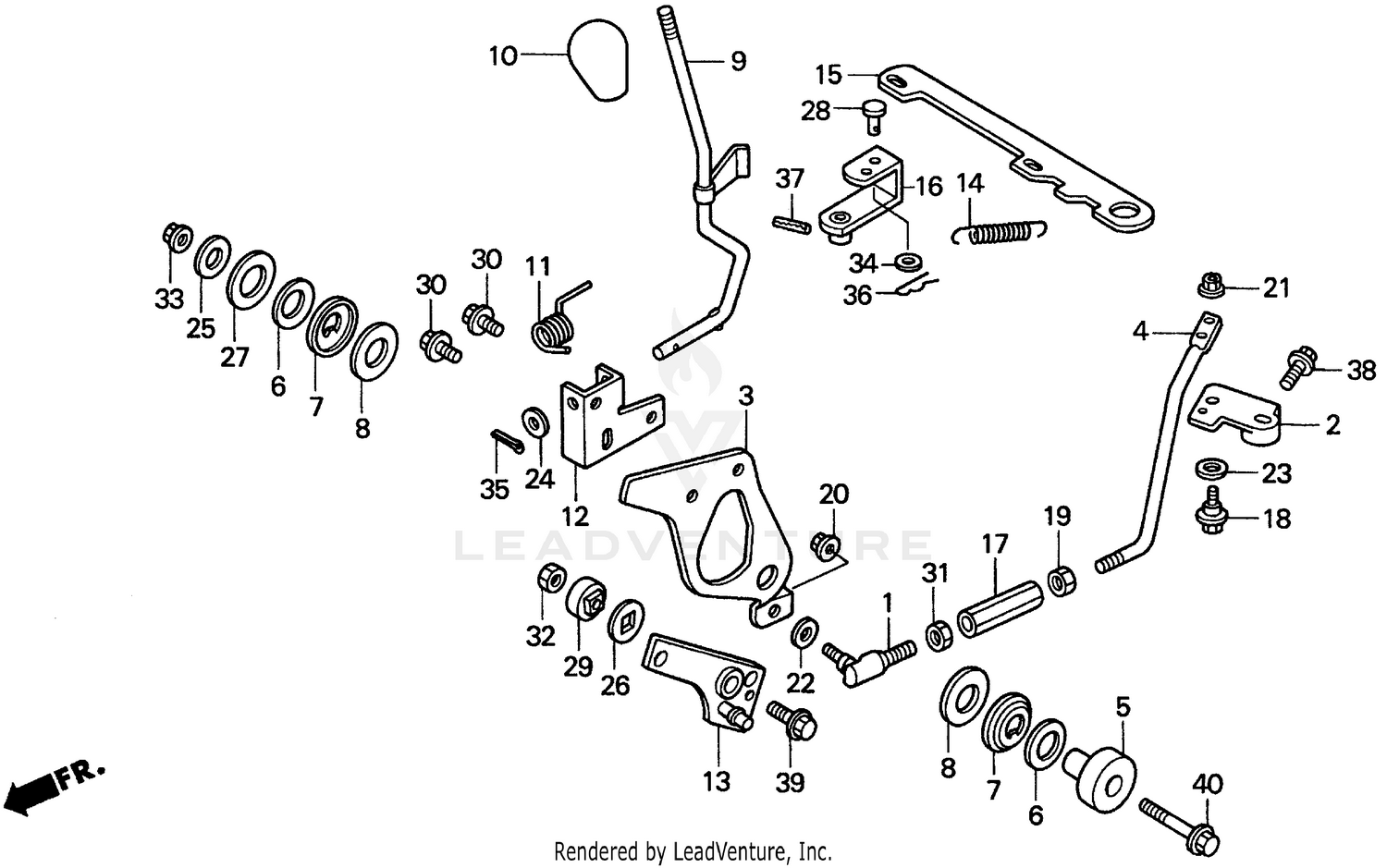

| Ref | Part Number | Description |
|---|
| 1 |
24125-771-700 |
JOINT, R. BALL Price: $7.88 |
| 2 |
24138-771-700 |
ARM, CONTROL Price: $27.46 |
| 3 |
24361-771-700 |
ARM, CHANGE Price: $21.52 |
| 4 |
24363-771-700 |
ROD, GEARSHIFT Price: $30.04 |
| 5 |
24366-771-700 |
SHAFT, CHANGE ARM Price: $5.80 |
| 6 |
24372-772-700 |
SPRING, FRICTION Price: $24.96 |
| 7 |
24376-771-700 |
GUIDE, FRICTION SETTING Price: $34.18 |
| 8 |
24379-772-701 |
WASHER, FRICTION Price: $28.40 |
| 9 |
24410-771-700 |
LEVER, CHANGE Price: $56.64 |
| 10 |
24415-771-000 |
GRIP, CHANGE LEVER Price: $12.30 |
| 11 |
24416-771-700 |
SPRING, CHANGE LEVER Price: $8.74 |
| 12 |
24427-771-700 |
BRACKET, CHANGE LEVER Price: $29.38 |
| 13 |
46576-772-700 |
ARM A, RETURN Price: $64.04 |
| 14 |
46923-771-700 |
SPRING, NEUTRAL VALVE LEVER Price: $5.12 |
| 15 |
46924-771-700 |
LEVER, NEUTRAL VALVE Price: $25.28 |
| 16 |
46926-771-700 |
ARM, NEUTRAL VALVE Price: $23.50 |
| 17 |
47268-771-700 |
JOINT (12MM) (3/8") Price: $40.66 |
| 18 |
90003-GT8-600 |
BOLT, SPECIAL Price: $2.82 |
| 19 |
90301-752-000 |
NUT, L. HEX. (12MM) Price: $2.82 |
| 20 |
90301-772-000 |
SEE PART DETAILS - PRI; NUT, FLANGE (3/8-24) Price: $0.60 |
| 21 |
90343-ZE6-000 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) Price: $2.24 |
| 22 |
90507-771-700 |
WASHER, PLAIN (10MM) Price: $2.74 |
| 23 |
90432-HA2-670 |
WASHER, SPECIAL (10MM) Price: $3.62 |
| 24 |
90451-168-000 |
WASHER, SPECIAL Price: $4.56 |
| 25 |
90502-GV4-900 |
WASHER (12.5X33) Price: $2.54 |
| 26 |
90504-771-700 |
WASHER, RETURN ARM Price: $11.28 |
| 27 |
90506-772-700 |
WASHER, SPRING SETTING Price: $2.34 |
| 28 |
90701-GT8-600 |
PIN, SEAT LOCK Price: $3.02 |
| 29 |
91557-772-700 |
BUSH (12.1X23X20) Price: $16.68 |
| 30 |
93404-08016-08 |
SEE PART DETAILS - PRI; BOLT-WASHER (8X16) Price: $2.34 |
| 31 |
90309-771-700 |
NUT, HEX. (3/8-24) Price: $1.20 |
| 32 |
94030-12000 |
NUT, HEX. (12MM) Price: $1.52 |
| 33 |
94050-12000 |
NUT, FLANGE (12MM) Price: $1.30 |
| 34 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 35 |
94201-40250 |
PIN, COTTER (4X25) Price: $1.42 |
| 36 |
94251-06000 |
PIN, LOCK (6MM) (Honda Code 0058487). Price: $1.30 |
| 37 |
94305-40252 |
PIN, SPRING (4X25) Price: $2.68 |
| 38 |
95701-08020-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477). Price: $1.98 |
| 39 |
95701-12025-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (12X25) Price: $4.54 |
