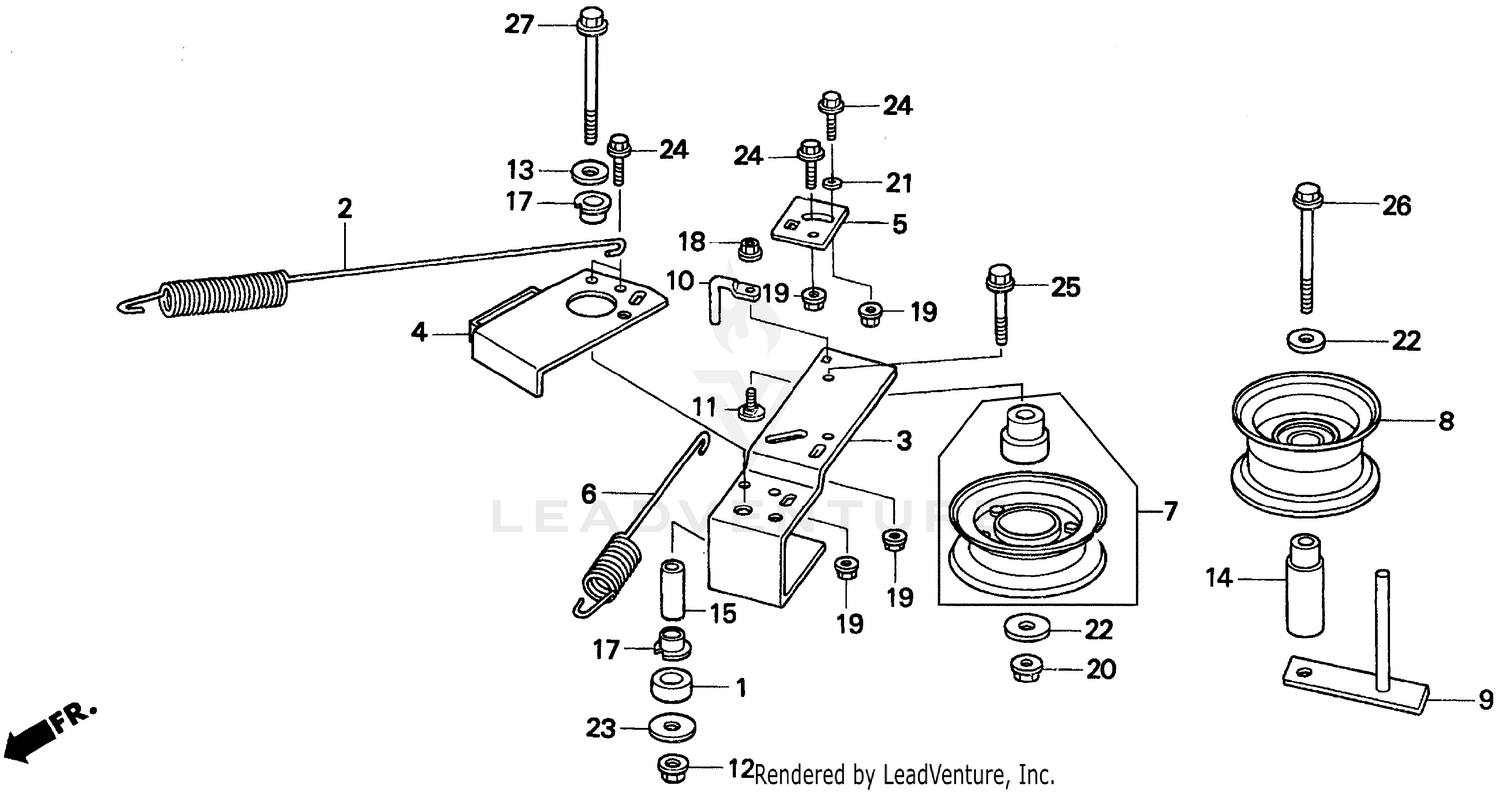

| Ref | Part Number | Description |
|---|
| 1 |
50372-MR8-000 |
COLLAR, MAIN PIPE ENGINE HANGER (A) Price: $8.92 |
| 2 |
76122-772-L00 |
SPRING, TENSIONER ARM Price: $69.29 |
| 3 |
76123-772-L01 |
SEE PART DETAILS - PRI; ARM, TENSIONER Price: $147.46 |
| 4 |
76124-772-L01 |
ARM, BRAKE Price: $119.32 |
| 5 |
76126-772-L01 |
SEE PART DETAILS - PRI; PLATE, ADJUSTING Price: $33.60 |
| 6 |
76129-772-L00 |
SPRING B, TENSION Price: $17.02 |
| 7 |
76130-772-L00 |
ROLLER, TENSION Price: $41.40 |
| 8 |
76195-772-L00 |
PULLEY, IDLER Price: $47.76 |
| 9 |
76254-772-L00 |
STOPPER B, BELT Price: $5.86 |
| 10 |
76257-772-L00 |
STOPPER D, BELT Price: $3.18 |
| 11 |
90101-750-920 |
BOLT, SPECIAL (8X20) Price: $3.04 |
| 12 |
90212-SA5-003 |
NUT, SELF-LOCK (10MM) Price: $1.34 |
| 13 |
90527-230-000 |
SEE PART DETAILS - PRI; WASHER, PLAIN (10.3MM) Price: $2.58 |
| 14 |
91556-772-L00 |
COLLAR, IDLE ROLLER Price: $2.50 |
| 15 |
91559-772-L00 |
COLLAR, TENSION Price: $18.44 |
| 17 |
91568-772-L01 |
COLLAR C, TENSIONER Price: $10.26 |
| 18 |
94001-08000-0S |
SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338). Price: $1.64 |
| 19 |
94050-06080 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689). Price: $0.82 |
| 20 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 21 |
94103-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) Price: $0.98 |
| 22 |
94103-08800 |
WASHER, PLAIN (8MM) Price: $1.18 |
| 23 |
94103-10800 |
WASHER, PLAIN (10MM) Price: $1.72 |
| 24 |
95701-06020-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2374759). Price: $0.48 |
| 25 |
95701-08040-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775). Price: $2.78 |
| 26 |
95701-08070-08 |
BOLT, FLANGE (8X70) Price: $3.52 |
